XHHW300PCS - ALU

XHHW300PCS - Al XHHW 300 STR Black PCS

Aluminum

  • $4.64 (Per Foot)
  • $4.64 (Per Foot)
  • $4,641.79 (Per 1,000 Feet)

Availablity: In Stock

Buy Now
QTY:
Feet
  • Help Improve Our Data
    Quick Specs
    Catalog Number
    XHHW300PCS
    Manufacturer
    Aluminum
    Manufacturer's Part Number
    XHHW300PCS
    Description
    Al XHHW 300 STR Black PCS
    Aluminum Building Wire, Abrasion, Moisture, Heat and Sunlight Resistant Insulation;Cable Can Be Installed Without Pulling Lubricant Additional Information, General Purpose Wiring Application, Black, Aluminum Conductor Material, 300 MCM Conductor Size, 255 A Current Rating, Polyethylene Insulation Material, 65 Mil Insulation Thickness, Made In Usa, +90 °C Maximum Operating Temperature, 37 - Strands, 0.705 In Outside Diameter, 1000 FT Overall Length, Carton Package Type, Directive 2002/95/Ec;Federal Specific
    Slang Terms

    Suggest a New Term
    Similar Brands

    Categories
    Aluminum Building Wire - XHHW-STR (Stranded)  Mark as Incorrect
    Suggest a New Category
    Classification
    Alum Building Wire
    UNSPSC
    -
    UPC/EAN/GTIN
    80394012547
    Weight per unit
    0.346 (lbs/ft)
    Price & Packaging
    Minimum Order Quantity
    Foot
    Unit
    $4.64 (Per Foot)
    Reel
    $4.64 (Per Foot)
    Resources
    Images

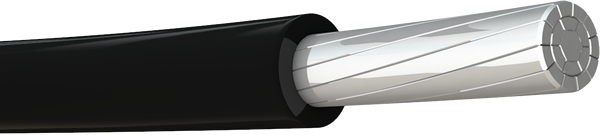

    XHHW300PCS - Large Image

    XHHW300PCS - Small Image


    Suggest Substitute Item
    Help Improve Our Data
  • Help Improve Our Data
    Features
    Current Rating
    255 A
    Voltage Rating
    600 V
    Conductor Size
    300 MCM
    Material, Color, and Finish
    Insulation Material
    Polyethylene
    Conductor Material
    Aluminum
    Color
    Black
    Dimensions and Weight
    Overall Length
    1000 ft
    Descriptions
    Product Type
    Aluminum Building Wire
    Long Description
    Aluminum Building Wire, Abrasion, Moisture, Heat and Sunlight Resistant Insulation;Cable can be Installed without Pulling Lubricant Additional Information, General Purpose Wiring Application, Black, Aluminum Conductor Material, 300 MCM Conductor Size, 255 A Current Rating, Polyethylene Insulation Material, 65 mil Insulation Thickness, Made in USA, +90 °C Maximum Operating Temperature, 37 - Strands, 0.705 in Outside Diameter, 1000 ft Overall Length, Carton Package Type, Directive 2002/95/EC;Federal Specific
    Features
    Compact stranded 8000 Series aluminum alloy conductor. Insulation is an abrasion, moisture, heat and sunlight resistant black cross-linked polyethylene. Cable can be installed without pulling lubricant. CT rated available when requested on sizes 1/0 AWG and larger. KINGWIRE Type XHHW-2 is intended for use as general purpose wiring for up to 600 volt rated services in air conduit or other recognized raceways for services, feeders and branch circuit wiring as specified in the National Electrical Code at a ma
    Short Description
    Aluminum Conductor Building Wire, 300 MCM, Polyethylene Insulation, Black
    Additional Information
    Abrasion, Moisture, Heat and Sunlight Resistant Insulation;Cable can be Installed without Pulling Lubricant
    Description
    AL XHHW 300 STR BLACK PCS
    Additional Information
    Insulation Thickness
    65 mil
    Maximum Operating Temperature
    +90 °C
    Number of Strands
    37
    outside diameter
    0.705 in
    Made in USA
    yes
    Standards Met
    UL Listed;Federal Specification JC-30B NEC, ASTM B-800, B-801;RoHS Compliant;Directive 2002/95/EC;ICEA S-95-658;NEMA WC 70
    Manufacturer Information
    Brand
    Aluminum
    Manufacturers Part Number
    XHHW300PCS
    Taxonomies, Classifications, and Categories
    Category Description
    ALUM BUILDING WIRE
    Packaging
    Package Type
    Carton
    Weight
    344 lb/1000 ft
    Weight per foot
    0.346
    Carton
    1
    Uses, Certifications, and Standards
    Application
    General Purpose Wiring
