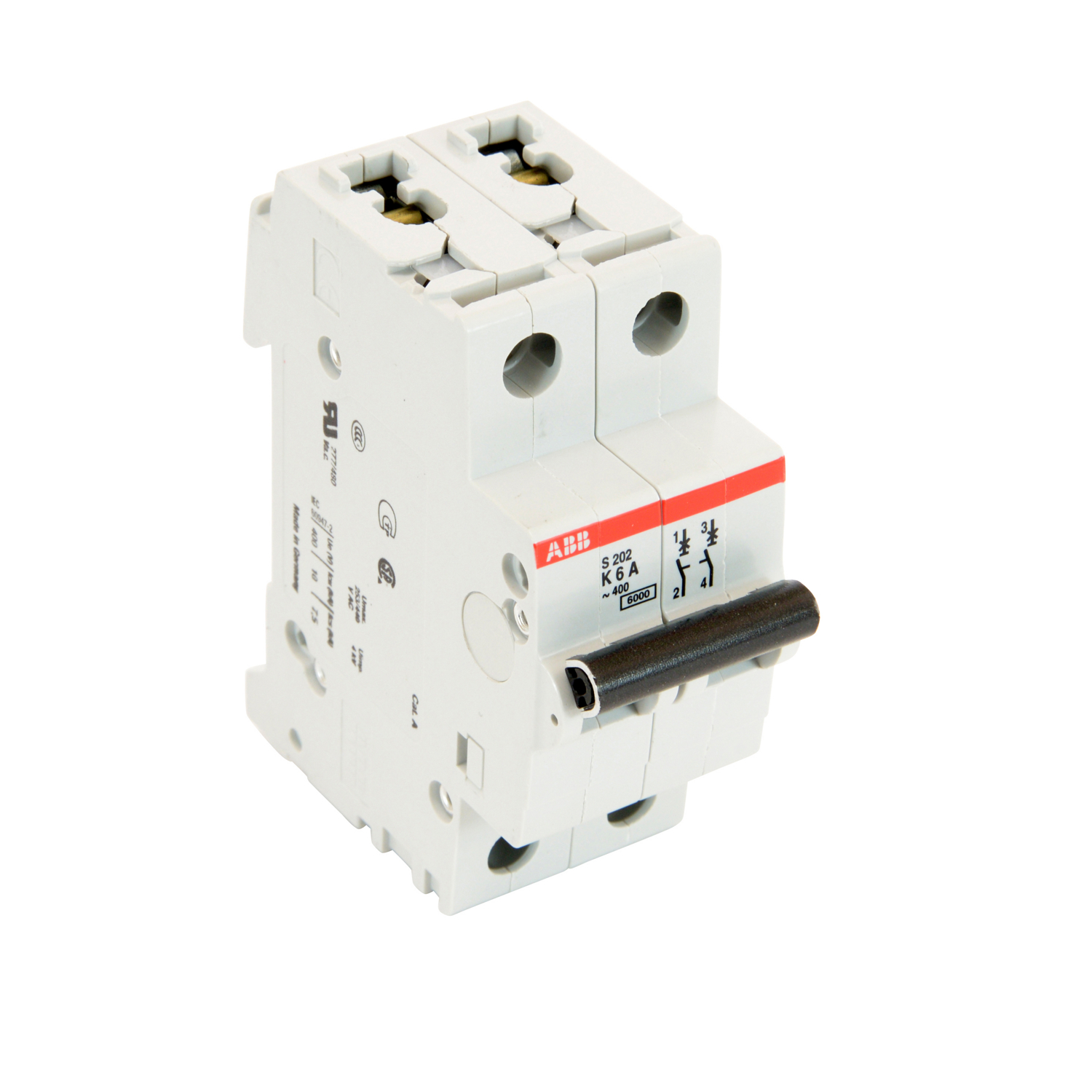

S202K6 - ABB

S202K6 - 2P 480V 6A Breaker

Abb

  • $57.05 (for 1 Each)
  • $57.05 (1 Each)
  • $285.25 (5 Each)

In-Stock: 0 available locally (Nacogdoches, TX) (change location)

QTY:
Each
  • Help Improve Our Data
    Quick Specs
    Catalog Number
    S202K6
    Manufacturer
    Abb
    Manufacturer's Part Number
    S202-K6
    Description
    2P 480V 6A Breaker
    Miniature Circuit Breaker, 6 A, Thermal Magnetic Tripping Mechanism, Screw Terminal, Din Rail Mount, 277/Y480 V Ac;60/110 V DC, 10/10 SQ.MM (Busbar);0.75 to 25 SQ.MM (Flexible);0.75 to 35 SQ.MM (Ridgid, Stranded) Wire Size, 50/60 HZ, +55 °C Operating Temperature, -25 °C Operating Temperature, 88 MM Overall Height, 69 MM Overall Length, 35 MM Overall Width, 0.57 LB
    Slang Terms

    Suggest a New Term
    Similar Brands

    Categories
    Supplementary Protector Circui - 2 Pole Supplementary Protector  Mark as Incorrect
    Suggest a New Category
    Classification
    Industrial Breakers Parts and Accessories
    UNSPSC
    39121603 - Miniature circuit breakers
    UPC/EAN/GTIN
    662019171036 / 4016779507370 / 00662019171036
    Weight per unit
    0.57 (lbs/each)
    Price & Packaging
    Minimum Order Quantity
    1 Each
    Unit
    $57.05 (1 Each)
    Standard Packaging
    $285.25 (5 Each)
    Stock Availability
    Nacogdoches
    0 Each (Find nearest stock)
    All Stores
    6 Each
    Resources
    Specifications Sheets


    S202K6 - Specification Sheet

    S202K6 - Specification Sheet
    Attachments


    S202K6 - Specification Sheet
    Images


    S202K6 - Large Image

    S202K6 - Small Image

    S202K6 - Large Image
    Other Links


    S202K6 - Other

    S202K6 - Other


    Suggest Substitute Item
    Help Improve Our Data
  • Help Improve Our Data
    Features
    Current Rating
    6 A
    interrupt rating
    6 kAIC
    6 kA
    Voltage Rating
    277/y480 V ac;60/110 V dc
    277/Y480 VAC, 60/110 VDC
    Wire Size
    10/10 sq.mm (Busbar);0.75 to 25 sq.mm (Flexible);0.75 to 35 sq.mm (Ridgid, Stranded)
    Poles
    2 in
    amperage rating
    6 in
    Dimensions and Weight
    Overall Length
    69 mm
    Width
    35mm
    Length
    69 Millimeters
    Height
    88mm
    Descriptions
    Description
    2P 480V 6A BREAKER
    Product Type
    MCB 2P K 6A 480Y/277 Supp
    Miniature Circuit Breaker
    Long Description
    Miniature Circuit Breaker, 6 A, Thermal Magnetic Tripping Mechanism, Screw Terminal, DIN Rail Mount, 277/y480 V ac;60/110 V dc, 10/10 sq.mm (Busbar);0.75 to 25 sq.mm (Flexible);0.75 to 35 sq.mm (Ridgid, Stranded) Wire Size, 50/60 Hz, +55 °C Operating Temperature, -25 °C Operating Temperature, 88 mm Overall Height, 69 mm Overall Length, 35 mm Overall Width, 0.57 lb
    Features
    Miniature Circuit Breaker, Supplementary Protector, Rated Current 6 Amps, 2 Pole, Interrupt Rating 6 kA, Thermal Magnetic Trip Curve K, Voltage up to 277/Y480 VAC, 60/110 VDC, DIN Rail Mounted, Finger Safe and Multi-Function Terminals, UL 1077, CSA 22.2 No. 235.
    Short Description
    2P Miniature Circuit Breaker, 6 A, 277/y480 VAC;60/110 V dc
    Special Features
    High performance MCB provides compact supplementary, energy limiting, circuit protection
    Additional Information
    Maximum Operating Temperature
    +55 °C
    Minimum Operating Temperature
    -25 °C
    Overall Height
    88 mm
    Overall Width
    35 mm
    for use with
    Residential, Commercial, Industrial Applications
    Standards Met
    UL 1077, CSA 22.2 NO. 235, IEC 60898
    circuit breaker type
    Miniature Circuit Breaker
    Tripping Mechanism
    Thermal Magnetic
    Terminal Connection Type
    Screw
    Mounting Type
    DIN Rail Mount
    Trip Type
    K
    Manufacturer Information
    Brand
    Thomas & Betts
    ABB
    Carlon(R)
    Manufacturers Part Number
    S202-K6
    GTIN
    00662019171036
    UPC
    662019171036
    Taxonomies, Classifications, and Categories
    Category Description
    INDUSTRIAL BREAKERS PARTS AND ACCESSORIES
    Type
    High Performance MCB Provides Compact Supplementary, Energy Limiting, Circuit Protection
    Packaging
    Weight
    0.57 lb
    Weight per each
    0.57
    Carton
    1
    Package
    5
    Uses, Certifications, and Standards
    Frequency Rating
    50/60 Hz
    50/60 HZ
    Application
    For use as a supplemental protection device
    standard
    UL 1077, CSA 22.2 No. 235, IEC 60898
    Operating Temperature
    -25 to +55 Degrees Celcius
