XHHW11000 - ALU

XHHW11000 - Al XHHW #1 STR Black 1000'

Aluminum

  • $0.37 (for 1 Foot)
  • $0.37 (1 Foot)
  • $365.27 (1,000 Feet)

In-Stock: 0 available locally (Nacogdoches, TX) (change location)

QTY:
Feet
  • Help Improve Our Data
    Quick Specs
    Catalog Number
    XHHW11000
    Manufacturer
    Aluminum
    Manufacturer's Part Number
    11273001
    Description
    Al XHHW #1 STR Black 1000'
    Aluminum Building Wire, 600 V, 18 Strands, #1 Awg Conductor Size, Xlpe Insulation Material, Black, 1000 FT Overall Length, 412 Mil Outside Diameter, 55 Mil Insulation Thickness, +90 °C Operating Temperature, 110 LB/MFT
    Slang Terms

    Suggest a New Term
    Similar Brands

    Categories
    Aluminum Building Wire - XHHW-STR (Stranded)  Mark as Incorrect
    Suggest a New Category
    Classification
    Alum Building Wire
    UNSPSC
    26121614 - Building cable
    UPC/GTIN
    032886542015 / 00032886542015
    Weight per unit
    0.108 (lbs/ft)
    Price & Packaging
    Minimum Order Quantity
    1 Foot
    Unit
    $0.37 (1 Foot)
    Reel
    $365.27 (1,000 Feet)
    Stock Availability
    Nacogdoches
    0 Feet (Find nearest stock)
    All Stores
    30,924 Feet
    Resources
    Images

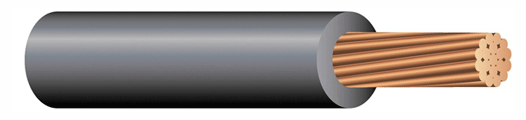

    XHHW11000 - Large Image

    XHHW11000 - Small Image

    XHHW11000 - Large Image
    Specifications Sheets


    XHHW11000 - Specification Sheet
    Attachments


    XHHW11000 - Specification Sheet


    Suggest Substitute Item
    Help Improve Our Data
  • Help Improve Our Data
    Features
    Current Rating
    85 A @ 60 °C;100 A @ 75 °C;115 A @ 90 °C
    85 AMPERE (60 DEG C), 100 AMPERE (75 DEG C), 115 AMPERE (90 DEG C)
    Conductor Size
    #1 AWG
    1 AWG
    Voltage Rating
    600 V
    Stranding
    18 STRANDS
    Material
    XLPE
    Material, Color, and Finish
    Conductor Material
    Aluminum
    Color
    Black
    Insulation Material
    XLPE
    Insulation Color
    BLACK
    Finish
    90 Deg C
    Dimensions and Weight
    Overall Length
    1000 FT
    Thickness
    08593722620
    Length
    1000 FT
    Outer Diameter
    412 MIL
    Width
    600 V
    Length in ft
    74565
    Height
    78677608281
    Descriptions
    Product Type
    Cable
    Aluminum Building Wire
    Long Description
    Aluminum Building Wire, 600 V, 18 Strands, #1 AWG Conductor Size, XLPE Insulation Material, Black, 1000 FT Overall Length, 412 mil Outside Diameter, 55 mil Insulation Thickness, +90 °C Operating Temperature, 110 lb/mft
    CABLE, XHHW-2 TYPE; 1000 FT; 409 MIL OUTER DIAMETER; ALUMINUM ALLOY CONDUCTOR MATERIAL; UL 44 APPROVAL; 600 V VOLTAGE RATING; 85 AMPERE (60 DEG C), 100 AMPERE (75 DEG C), 115 AMPERE (90 DEG C) CURRENT RATING; 90 DEG C TEMPERATURE RATING
    Features
    Southwire Type XHHW-2 conductors are primarily used in conduit or other recognized raceways for services, feeders, and branch circuit wiring, as specified in the National Electrical Code1 XHHW-2 conductors may be used in wet or dry locations at temperatures not to exceed 90°C Voltage rating for XHHW-2 conductors is 600 volts.
    Short Description
    Aluminum Building Wire, 1 AWG, 600 V, XLPE Insulation
    Additional Information
    Moisture Resistant, High Heat Sun Light Resistant;Installed without Lubricant
    END BELL, PVC MATERIAL; UL, CSA APPROVAL; NEMA TC9 APPLICABLE STANDARD; 5 INCH TRADE SIZE; OVERALL DIMENSION 5.063 INCH ID X 6.375 INCH OD X 2.438 INCH L; SCHEDULE 40
    Commodity Description
    SWITCH BOX, NON-METALLIC MATERIAL; 4.54 INCH; 2.8 INCH; 2.42 INCH; 1 INCH HUB SIZE; 2 HUB(S); 1 GANG(S); UL, CSA APPROVAL; 19 CU. INCH CAPACITY; FSS STYLE; (4) LUG MOUNTING HARDWARE; (2) END HUB LOCATION
    Description
    AL XHHW #1 STR BLACK 1000'
    Additional Information
    Number of Strands
    18
    outside diameter
    412 mil
    Insulation Thickness
    55 mil
    Maximum Operating Temperature
    +90 °C
    Standards Met
    RoHS Compatible;Applicable Standard ASTM, Federal Specification A-A-59544,National Electrical Code, NFPA 70, NEMA WC-70;UL Listed 44
    Made in USA
    Yes
    Process
    JUNCTION BOX, MOLDED PVC MATERIAL; 8 INCH; 8 INCH; 4 INCH; SURFACE INSTALLATION; UL APPROVAL; NEMA 1/3/3S/4/4X/5/6/6P ENCLOSURE; SCREW COVER TYPE; (2) LUG MOUNTING HARDWARE; GASKET MATERIAL NEOPRENE; TEMPERATURE RATING -250 TO 125 DEG F
    Number of Channels
    RoHS Compliant; Body Style Cylindrical, Rejection; Body Material GMG; Mounting Type Bolt-On; Contact Material Silver-Plated Copper; Application Feeder, Circuit Breaker, Load Center, Panelboard, Switchboard, Metering Center
    Manufacturer Information
    Brand
    SOUTHWIRE
    Aluminum
    UL 44
    Manufacturers Part Number
    11273001
    GTIN
    00032886542015
    UPC
    032886542015
    Taxonomies, Classifications, and Categories
    Category Description
    ALUM BUILDING WIRE
    Type
    XHHW-2
    Packaging
    Weight
    110 LB/MFT
    110 lb/mft
    Package Type
    Reel
    REEL
    Weight per foot
    0.108
    Carton
    1000
    Uses, Certifications, and Standards
    Application
    Conduit or Recognized Raceways for service and Feeder wiring and Branch Circuit Wiring
    Quick Open, Grounded
    Temperature Rating
    90 DEG C
    Approval
    UL 44
