XHHW405000 - ALU

XHHW405000 - Al XHHW 4/0 STR BK 5000

Aluminum

  • $0.69 (for 1 Foot)
  • $0.69 (1 Foot)
  • $686.02 (1,000 Feet)
  • $3,430.10 (5,000 Feet)

In-Stock: 0 available locally (Nacogdoches, TX) (change location)

QTY:
Feet
  • Help Improve Our Data
    Quick Specs
    Catalog Number
    XHHW405000
    Manufacturer
    Aluminum
    Manufacturer's Part Number
    11277107
    Description
    Al XHHW 4/0 STR BK 5000
    Aluminum Building Wire, 600 V, 18 Strands, 4/0 Awg Conductor Size, Xlpe Insulation Material, Black, 5000 FT Overall Length, 588 Mil Outside Diameter, 55 Mil Insulation Thickness, +90 °C Operating Temperature, 247 LB/MFT
    Slang Terms

    Suggest a New Term
    Similar Brands

    Categories
    Aluminum Building Wire - XHHW-STR (Stranded)  Mark as Incorrect
    Suggest a New Category
    Classification
    Alum Building Wire
    UNSPSC
    26121614 - Building cable
    UPC/GTIN
    032886542435 / 00032886542435
    Weight per unit
    0.25 (lbs/ft)
    Price & Packaging
    Minimum Order Quantity
    1 Foot
    Unit
    $0.69 (1 Foot)
    Reel
    $3,430.10 (5,000 Feet)
    Stock Availability
    Nacogdoches
    0 Feet (Find nearest stock)
    All Stores
    75,667 Feet
    Resources
    Images

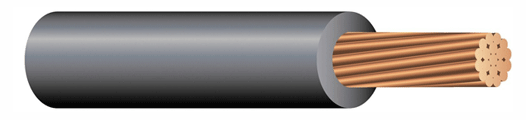

    XHHW405000 - Small Image

    XHHW405000 - Large Image

    XHHW405000 - Large Image
    Specifications Sheets


    XHHW405000 - Specification Sheet
    Attachments


    XHHW405000 - Specification Sheet


    Suggest Substitute Item
    Help Improve Our Data
  • Help Improve Our Data
    Features
    Current Rating
    150 A @ 60 °C;180 A @ 75 °C;205 A @ 90 °C
    150 AMPERE (60 DEG C), 180 AMPERE (75 DEG C), 205 AMPERE (90 DEG C)
    Stranding
    18 STRANDS
    Conductor Size
    4/0 AWG
    Voltage Rating
    600 V
    Material, Color, and Finish
    Conductor Material
    Aluminum
    Aluminum Alloy
    Color
    Black
    Insulation Color
    BLACK
    Insulation Material
    XLPE
    Dimensions and Weight
    Overall Length
    5000 FT
    Outer Diameter
    588 MIL
    Length
    5000 FT
    Length in ft
    5000 V
    Descriptions
    Product Type
    Cable
    Aluminum Building Wire
    Features
    Southwire Type XHHW-2 conductors are primarily used in conduit or other recognized raceways for services, feeders, and branch circuit wiring, as specified in the National Electrical Code1 XHHW-2 conductors may be used in wet or dry locations at temperatures not to exceed 90°C Voltage rating for XHHW-2 conductors is 600 volts.
    Short Description
    Aluminum Building Wire, 4/0 AWG, 600 V, XLPE Insulation, 5000'
    Additional Information
    Moisture Resistant, High Heat Sun Light Resistant;Installed without Lubricant
    RoHS Compatible; Applicable Standard ASTM, Federal Specification A-A-59544, NFPA 70, NEMA WC-70
    Long Description
    Aluminum Building Wire, 600 V, 18 Strands, 4/0 AWG Conductor Size, XLPE Insulation Material, Black, 5000 FT Overall Length, 588 mil Outside Diameter, 55 mil Insulation Thickness, +90 °C Operating Temperature, 247 lb/mft
    CABLE, XHHW-2 TYPE; 5000 FT; 585 MIL OUTER DIAMETER; ALUMINUM ALLOY CONDUCTOR MATERIAL; UL 44 APPROVAL; 600 V VOLTAGE RATING; 150 AMPERE (60 DEG C), 180 AMPERE (75 DEG C), 205 AMPERE (90 DEG C) CURRENT RATING; 90 DEG C TEMPERATURE RATING
    Commodity Description
    ALUMINUM BUILDING WIRE-XHHW-STR
    Description
    AL XHHW 4/0 STR BK 5000
    Additional Information
    Number of Strands
    18
    outside diameter
    588 mil
    Insulation Thickness
    55 mil
    Maximum Operating Temperature
    +90 °C
    Standards Met
    RoHS Compatible;Applicable Standard ASTM, Federal Specification A-A-59544,National Electrical Code, NFPA 70, NEMA WC-70;UL Listed 44
    Made in USA
    Yes
    Manufacturer Information
    Brand
    SOUTHWIRE
    Aluminum
    SOUTHWIRE COMPANY
    Manufacturers Part Number
    11277107
    GTIN
    00032886542435
    UPC
    032886542435
    Taxonomies, Classifications, and Categories
    Category Description
    ALUM BUILDING WIRE
    Type
    XHHW-2
    Packaging
    Package Type
    Reel
    REEL
    Weight
    247 lb/mft
    247 LB/MFT
    Weight per foot
    0.25
    Carton
    5000
    Uses, Certifications, and Standards
    Application
    Conduit or Recognized Raceways for service and Feeder wiring and Branch Circuit Wiring
    Temperature Rating
    90 DEG C
    Approval
    UL 44
