THHN30BK2500 - COP

THHN30BK2500 - THHN 3/0 STR Black 2500'

Copper

  • $3.14 (Per Foot)
  • $3.14 (Per Foot)
  • $3,138.98 (Per 1,000 Feet)
  • $7,847.45 (Per 2,500 Feet)

In-Stock: 5,000 available locally (Nacogdoches, TX) (change location)

QTY:
Feet
  • Help Improve Our Data
    Quick Specs
    Catalog Number
    THHN30BK2500
    Manufacturer
    Copper
    Manufacturer's Part Number
    20507007
    Description

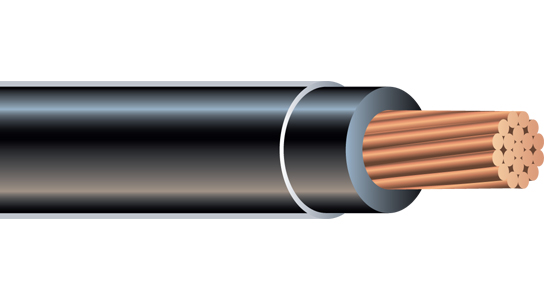

    THHN 3/0 STR Black 2500'
    Copper Building Wire/Machine Tool Wire, THHN, THWN-2, MTW; 600 V Voltage Rating; 165 Ampere (60 Deg C), 200 Ampere (75 Deg C), 225 Ampere (90 Deg C) Current Rating; Conductor Material Annealed Copper; 3/0 Awg Conductor; 19 Strands; Nylon Jacket
    Slang Terms

    Suggest a New Term
    Similar Brands

    Categories
    Copper Building Wire - THHN-T90-STR (Stranded)  Mark as Incorrect
    Suggest a New Category
    Classification
    Building Wire
    UNSPSC
    26121614 - Building cable
    UPC/GTIN
    032886134210 / 00032886134210
    Weight per unit
    0.574 (lbs/ft)
    Price & Packaging
    Minimum Order Quantity
    Foot
    Unit
    $3.14 (Per Foot)
    Reel
    $7,847.45 (Per 2,500 Feet)
    Stock Availability
    Nacogdoches
    5,000 Feet (Check another store)
    All Stores
    336,818 Feet
    Resources
    Images


    Large Image - Large Image

    THHN30BK2500 - Large Image

    Small Image - Small Image

    THHN30BK2500 - Small Image

    THHN30BK2500 - Large Image
    Specifications Sheets


    THHN30BK2500 - Specification Sheet
    Attachments


    THHN30BK2500 - Specification Sheet


    Suggest Substitute Item
    Help Improve Our Data
  • Help Improve Our Data
    Features
    Current Rating
    165 A (60°C);200 A (75°C);225 A (90°C)
    165 AMPERE (60 DEG C), 200 AMPERE (75 DEG C), 225 AMPERE (90 DEG C)
    Conductor Size
    3/0 AWG
    Voltage Rating
    600 V
    Stranding
    19 STRANDS
    Material, Color, and Finish
    Conductor Material
    ANNEALED COPPER
    Annealed Copper
    Jacket Material
    NYLON
    Nylon
    Color
    Black
    Insulation Material
    PVC
    Finish
    90 Deg C
    Insulation Color
    BLACK
    Dimensions and Weight
    Overall Length
    2500 ft
    Thickness
    08593722620
    Length
    2500 FT
    Length in ft
    2500 sq ft
    Outer Diameter
    568 MIL
    Descriptions
    Long Description
    COPPER BUILDING WIRE/MACHINE TOOL WIRE, THHN, THWN-2, MTW; 600 V VOLTAGE RATING; 165 AMPERE (60 DEG C), 200 AMPERE (75 DEG C), 225 AMPERE (90 DEG C) CURRENT RATING; CONDUCTOR MATERIAL ANNEALED COPPER; 3/0 AWG CONDUCTOR; 19 STRANDS; NYLON JACKET
    THHN 3/0 STR CU BK 2500R
    Product Type
    Cable
    THHN Building Wire
    Features
    Southwire(R) SIMpull THHN(R) copper conductors are made with soft drawn copper. Sizes 14 through 4/0 AWG use a combination-unilay stranding while 250 kcmil and larger sizes use a compressed copper stranding. The wire is covered with a tough heat and moisture resistant PVC insulation with an overall nylon jacket utilizing SIMpull(R) Technology. Available in black, white, red, blue, purple, green, yellow, orange, brown, and gray. Also available in striped configurations. Some colors are subject to economic o
    Short Description
    THHN Building Wire, 3/0 AWG, Stranded, Annealed Copper, Black, 2500
    Additional Information
    Heat, Moisture, Gasoline and Oil Resistant;SIMpull(R) Technology for Easier Pulling;Sunlight Resistant
    Description
    THHN 3/0 STR BLACK 2500'
    Commodity Description
    COPPER BUILDING WIRE-THHN-T90-STR
    Additional Information
    Number of Strands
    19
    Maximum Operating Temperature
    90 °C
    Standards Met
    CSA Certified C22.2 No. 75;UL Standards 83, 758, 1063, and 1581;NOM-ANCE 90°C;Federal Specification A-A-59544;NEMA WC-70 (ICEA S-95-658) Construction Requirements;National Electrical Code, NFPA 70;MTW - Stranded Constructions Only;RoHS/REACH Compliant;ASTM - B3, B8, and B787;UL Listed;cULus Listed;CT Rated
    Made in USA
    Yes
    outside diameter
    568 mil
    Insulation Thickness
    50 mil
    Process
    Rigid Inside Coupling
    Number of Channels
    CABLE MARKING LABEL, SELF-EXTINGUISHING, SELF-LAMINATING TYPE; B-292 VINYL MATERIAL; 1.5 INCH LABEL LENGTH; 2.5 INCH LABEL WIDTH; 0.004 INCH THICKNESS; WHITE/TRANSLUCENT BACKGROUND COLOR; 1.5 INCH WIDTH X 0.75 INCH HEIGHT PRINT AREA; 1 LABELS PER ROW
    Manufacturer Information
    Brand
    SOUTHWIRE
    Copper
    V5748
    Manufacturers Part Number
    20507007
    GTIN
    00032886134210
    UPC
    032886134210
    Taxonomies, Classifications, and Categories
    Category Description
    BUILDING WIRE
    Type
    THHN, THWN-2, MTW
    Packaging
    Package Type
    Reel
    REEL
    Weight
    575 lb/mft
    575 LB/MFT
    Weight per foot
    0.574
    Carton
    2500
    Uses, Certifications, and Standards
    Application
    Commercial;Industrial
    Approval
    UL 83, UL 1063, UL 1581, UL (CANADA AND US), CSA
    Temperature Rating
    90 DEG C
