CSD12126 - HOF

CSD12126 - 12X12X6 N4/12 QTR TRN HC

Nvent Hoffman

  • $307.78 (for 1 Each)
  • $307.78 (1 Each)

In-Stock: 0 available locally (Nacogdoches, TX) (change location)

QTY:
Each
  • Help Improve Our Data
    Quick Specs
    Catalog Number
    CSD12126
    Manufacturer
    Nvent Hoffman
    Manufacturer's Part Number
    CSD12126
    Description
    12X12X6 N4/12 QTR TRN HC

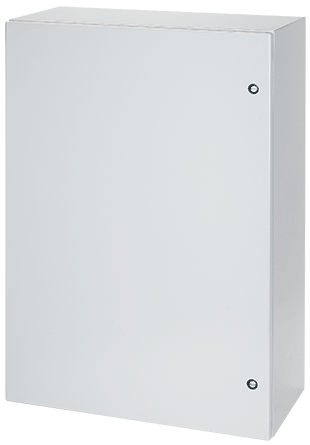

    Wall-Mount Enclosure, Steel, Wall Mount, Gray, Ansi 61 Gray, 12 In Overall Width, 12 In Overall Length, 6 In Overall Height, 12.46 LB
    Slang Terms

    Suggest a New Term
    Similar Brands

    Categories
    Metal Enclosures & Cabinets - Nema Types 4 & 12 Metallic Enc  Mark as Incorrect
    Suggest a New Category
    Classification
    Steel Junction Boxes
    UNSPSC
    39121324 - Electrical general purpose enclosure
    UPC/GTIN
    783510772901 / 00783510772901
    Weight per unit
    12.46 (lbs/each)
    Price & Packaging
    Minimum Order Quantity
    1 Each
    Unit
    $307.78 (1 Each)
    Stock Availability
    Nacogdoches
    0 Each (Find nearest stock)
    All Stores
    15 Each
    Resources
    Installation Sheets


    CSD12126 - Installation Sheet
    Attachments


    CSD12126 - Specification Sheet

    CSD12126 - Specification Sheet
    Images


    CSD12126 - Large Image

    CSD12126 - Small Image

    CSD12126 - Large Image
    Other Links


    CSD12126 - Other

    CSD12126 - Other

    CSD12126 - Other


    Suggest Substitute Item
    Help Improve Our Data
  • Help Improve Our Data
    Features
    Material
    Steel
    Steel IN
    Material, Color, and Finish
    Color
    Gray 0
    Dimensions and Weight
    Overall Length
    12 in;305 mm
    Size
    12.00x12.00x6.00 in
    Descriptions
    Description
    12X12X6 N4/12 QTR TRN HC
    Product Type
    Enclosure 12.00X12.00X6.00
    Wall-Mount Enclosure
    Long Description
    Wall-Mount Enclosure, Steel, Wall Mount, Gray, ANSI 61 Gray, 12 in Overall Width, 12 in Overall Length, 6 in Overall Height, 12.46 lb
    Short Description
    30X30X8 Wall-Mount Enclosure, Steel, Gray
    Special Features
    Seams Continuously Welded and Ground Smooth;Corner-Formed Doors;Simple Easy-to-Remove and Install Hinge Pins with Captivation Clip;High-Torque Threadless Studs and Fasteners on Door;Minimum-Width Body Flange Provides Maximum Door;A Continuous Hinge Combined with Stainless Steel Clamps on Three Sides Provide Environmental Protection and Security in Indoor or Outdoor Applications.
    16 or 14 gauge steel, Seams continuously welded and ground smooth, Corner-formed doors, Simple easy-to-remove and install hinge pins with captivation clip, High-torque threadless studs and fasteners on door, Minimum-width body flange provides maximum door opening, Door opens 210 degrees, External formed body flange, Panel mounting studs fit optional CONCEPT panels and other accessories, Mounting holes in back of body for direct mounting or optional external mounting brackets, Removable door with hidden hin
    Additional Information
    Enclosure Type
    NEMA 4;NEMA 12
    Mounting Type
    Wall Mount
    Finish/Coating
    ANSI 61 Gray
    ip rating
    IP66
    Overall Width
    12 in;305 mm
    Overall Height
    6 in;152 mm
    Standards Met
    UL 508A Listed Type 4, 12 File No. E61997;cUL Listed per CSA C22.2 No. 94;Type 4, 12;File No. E61997;CSA Certified;RoHS Compliant
    Made in USA
    Yes
    Manufacturer Information
    Brand
    Hoffman Enclosures, Inc.
    Nvent Hoffman
    J-Series
    Manufacturers Part Number
    CSD12126
    sub brand
    CONCEPT
    GTIN
    00783510772901
    UPC
    783510772901
    Taxonomies, Classifications, and Categories
    Category Description
    STEEL JUNCTION BOXES
    Type
    CONCEPT™, Type 4 and 12
    Packaging
    Weight
    12.46 lb
    Weight per each
    12.46
    Carton
    1
    Uses, Certifications, and Standards
    Application
    Machine Control
    CONCEPT™ Enclosures are ideal for machine control applications. With streamlined styling, flush quarter-turn latches and an attractive, durable finish. Available in solid or window single-door and two-door landscape, flush-mount and sloped-top versions for application and mounting flexibility. Two-door landscape models provide full-width access and easy panel installation.
    standard
    Wall-mounting brackets required to maintain UL/CSA external mounting requirement.CONCEPT solid single-door, door with window and flush-mount models, UL 508A Listed, Type 4, 12, File No. E61997, cUL Listed per CSA C22.2 No. 94, Type 4, 12, File No. E61997,
