U4801XL5T9 - MIB

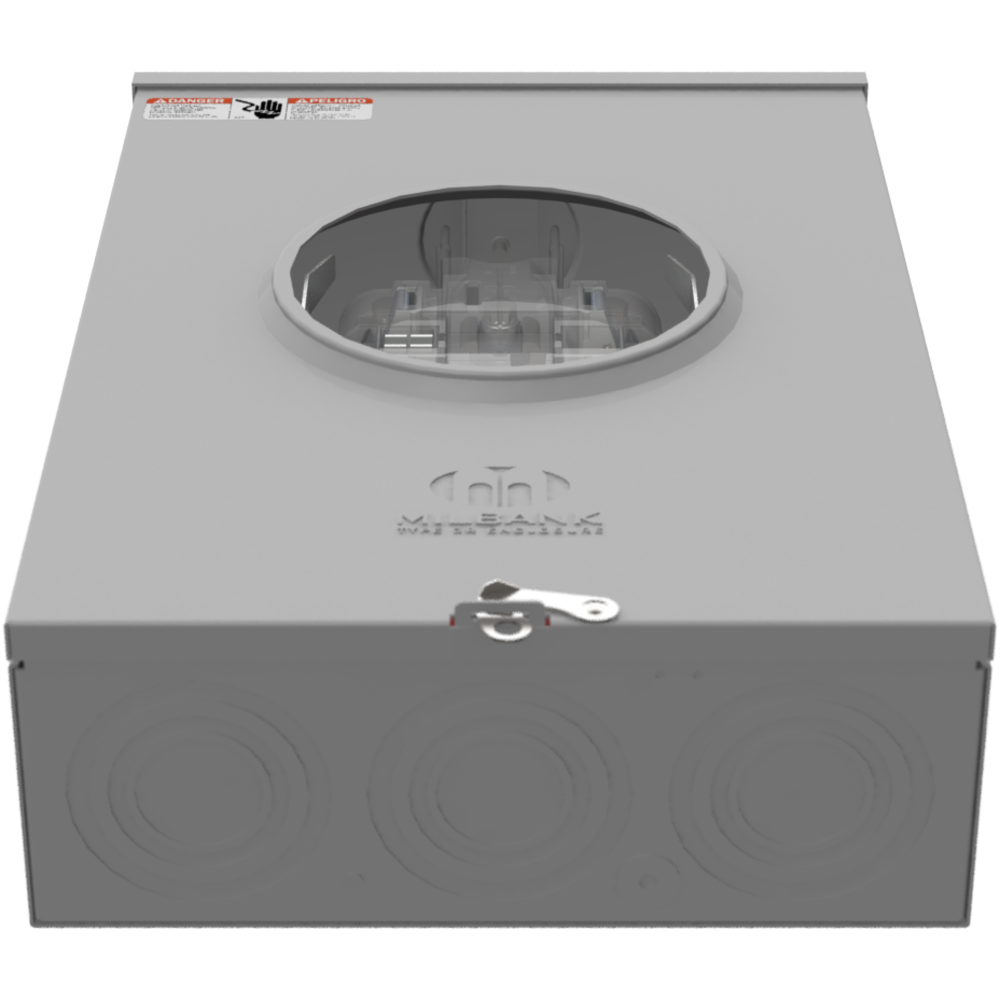

U4801XL5T9 - 200A 1PH Oh/Ug 5T LVR Bypass Meter Socket

Milbank

  • $179.99 (for 1 Each)
  • $179.99 (1 Each)

In-Stock: 0 available locally (Nacogdoches, TX) (change location)

QTY:
Each
  • Help Improve Our Data
    Quick Specs
    Catalog Number
    U4801XL5T9
    Manufacturer
    Milbank
    Manufacturer's Part Number
    U4801-XL-5T9
    Description
    200A 1PH Oh/Ug 5T LVR Bypass Meter Socket
    Meter Socket, 200 A, 19 In Overall Height, 13 In Overall Width, 4-7/8 In Overall Length, Surface Mount, 1 Phase, Small Closing Plate Hub, 5 Jaws, 3 Wires, 600 V Ac, #6 Awg to 350 Kcmil Wire Size, Overhead/Underground Feed, 21 LB
    Slang Terms

    Suggest a New Term
    Similar Brands

    Categories
    Single Meter Sockets - Residential Single Meter Socke  Mark as Incorrect
    Suggest a New Category
    Classification
    Temp. Power Panels & Accessories
    UNSPSC
    39121102 - Meter centers or sockets
    UPC/GTIN
    784572288218 / 00784572288218
    Weight per unit
    21 (lbs/each)
    Price & Packaging
    Minimum Order Quantity
    1 Each
    Unit
    $179.99 (1 Each)
    Carton
    $179.99 (1 Each)
    Stock Availability
    Nacogdoches
    0 Each (Find nearest stock)
    All Stores
    588 Each
    Resources
    Images


    U4801XL5T9 - Large Image

    U4801XL5T9 - Small Image

    U4801XL5T9 - Large Image
    Specifications Sheets


    U4801XL5T9 - Specification Sheet
    Attachments


    U4801XL5T9 - Specification Sheet
    Installation Sheets


    U4801XL5T9 - Installation Sheet


    Suggest Substitute Item
    Help Improve Our Data
  • Help Improve Our Data
    Features
    Number of Phases
    1
    Current Rating
    200 A
    200 AMPERE
    Number of Wires
    3
    Voltage Rating
    600 V ac
    600 VAC AT 60 HZ
    Wire Size
    #6 AWG to 350 kcmil
    6 AWG TO 350 KCMIL (ALUMINUM/COPPER, LINE/LOAD)
    Material, Color, and Finish
    Enclosure Material
    Powder Coated G90 Galvanized Steel
    Dimensions and Weight
    Overall Length
    4-7/8 in
    Size
    13 INCH W X 4-7/8 INCH D X 19 INCH H
    Descriptions
    Product Type
    Single Position Meter Socket
    Meter Socket
    Description
    200A 1PH OH/UG 5T LVR BYPASS METER SOCKET
    Long Description
    Meter Socket, 200 A, 19 in Overall Height, 13 in Overall Width, 4-7/8 in Overall Length, Surface Mount, 1 Phase, Small Closing Plate Hub, 5 Jaws, 3 Wires, 600 V ac, #6 AWG to 350 kcmil Wire Size, Overhead/UnderGround Feed, 21 lb
    SINGLE POSITION METER SOCKET, RINGLESS TYPE; 13 INCH W X 4-7/8 INCH D X 19 INCH H SIZE; 6 AWG TO 350 KCMIL (LINE/LOAD) WIRE SIZE; POWDER COATED G90 GALVANIZED STEEL ENCLOSURE MATERIAL; UL APPROVAL; 600 VAC AT 60 HZ VOLTAGE RATING; SURFACE MOUNTING
    Features
    5 Terminal Ringless Small Closing Plate Lever Bypass 5th Terminal 9 Oclock Position
    Short Description
    Meter Socket, 200 A, 600VAC, #6 AWG to 350 kcmil, OH/OG
    Commodity Description
    RESIDENTIAL SINGLE METER SOCKETS
    Additional Information
    WITH FACTORY INSTALLED FIFTH TERMINAL IN 9 O CLOCK POSITION, EXTERNAL HEX CONNECTOR
    Additional Information
    Mounting Type
    Surface Mount
    Enclosure Type
    NEMA 3R
    accessory type
    Meter Socket
    Overall Height
    19 in
    Overall Width
    13 in
    Number of Jaws
    5
    4 in
    feed type
    Overhead/Underground
    Standards Met
    UL Listed
    package quantity
    1 CT
    Circuit Configuration
    1-Phase 3-Wire
    Knockouts
    (1) 1/4 INCH, (1) (1/4 INCH-1/2 INCH) CONCENTRIC KNOCKOUT, (1) 2 1/2 INCH, (4) 3 INCH
    Hub Type
    2 INCH SMALL OPENING
    Small Closing Plate
    Bypass Switch Type
    LEVER
    Service Type
    OVERHEAD/UNDERGROUND
    Manufacturer Information
    Brand
    MILBANK
    Milbank MFG.
    MILBANK MFG CO
    Manufacturers Part Number
    U4801-XL-5T9
    Model
    U4801
    GTIN
    00784572288218
    UPC
    784572288218
    Taxonomies, Classifications, and Categories
    Category Description
    TEMP. POWER PANELS & ACCESSORIES
    Type
    RINGLESS
    Packaging
    Weight
    21 lb
    Weight per each
    21
    Carton
    1
    Uses, Certifications, and Standards
    Application
    Meter Socket
    Enclosure
    NEMA 3R
    Mounting
    SURFACE
    Approval
    UL mA
