IG5261 - PAS

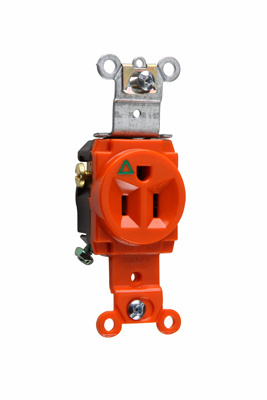

IG5261 - 15A 125V BR Iso GRN Sing Rec

Pass and Seymour

In-Stock: 0 available locally (Nacogdoches, TX) (change location)

QTY:
  • Help Improve Our Data
    Quick Specs
    Catalog Number
    IG5261
    Manufacturer
    Pass and Seymour
    Manufacturer's Part Number
    IG5261
    Description
    15A 125V BR Iso GRN Sing Rec
    Isolated Ground Heavy-Duty Spec Grade Single Receptacle Back and, Side Wire 15AMP 125VOLT Orange
    Slang Terms

    Suggest a New Term
    Categories
    Gen Purpose Wiring Devices - Gen Purpose Recept & Surge Pro  Mark as Incorrect
    Suggest a New Category
    Classification
    Commercial Recepticals
    UNSPSC
    39121406 - Electrical receptacles
    UPC/GTIN
    785007652611 / 00785007652611
    Weight per unit
    0.17 (lbs/each)
    Price & Packaging
    Minimum Order Quantity
    1 Unit
    Unit
    $39.24 (each)
    Carton
    $39.24 (1 units)
    Standard Packaging
    $392.40 (10 units)
    Stock Availability
    Nacogdoches
    0
    All Stores
    23
    Resources
    Specifications Sheets


    IG5261 - Specification Sheet
    Images


    IG5261 - Large Image

    IG5261 - Small Image
    Installation Sheets


    IG5261 - Installation Sheet


    Suggest Substitute Item
    Help Improve Our Data
  • Help Improve Our Data
    Additional Information
    amperage rating
    15
    Application
    COMMERCIAL
    Brand
    Pass and Seymour
    Category Description
    Commercial recepticals
    Color
    ORANGE
    connection
    Back and side wire
    Description
    15A 125V BR ISO GRN SING REC
    Dielectric Strength
    Withstands 2000V minimum
    Documents
    Yes
    environmental conditions
    Flammability: UL94 V2
    Long Description
    Isolated Ground Heavy-Duty Spec Grade Single Receptacle Back and, Side Wire 15amp 125volt Orange
    Manufacturers Part Number
    IG5261
    Material
    NYLON
    Mounting
    WALL
    nema rating
    5-15R
    Number of Wires
    3
    Yes
    Poles
    2
    Product Type
    Recept Single 15A 125V S+B Wire Ig
    Size
    1.32 L x 1.093 W x 3.68 H
    special features
    IG symbol and Isolated Ground markings for easy identification and circuit delineation. Triple-wipe brass contacts ensure lasting, positive contact with plug blades. High-impact resistant nylon face resists impacts and scrapes. Corrosion-resistant plated steel strap. Patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation. Plastic barrier isolates grounding terminal from mounting strap and metal boxes. Side and internal screw-pressure-plate back wi
    standard
    UL498, CSA C22.2 No. 42
    sub brand
    Pass & Seymour
    Temperature Rating
    Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
    Type
    Isolated Ground Spec Grade Single Receptacle, Heavy-Duty
    Voltage Rating
    125
    Wire Size
    #14 - #10
