WS250LA - PAS

WS250LA - Pir Wall SWTCH Occsnsr, 120/277V, La

Wattstopper

  • $52.85 (for 1 Each)
  • $52.85 (1 Each)
  • $2,114.00 (40 Each)

In-Stock: 0 available locally (Nacogdoches, TX) (change location)

QTY:
Each
  • Help Improve Our Data
    Quick Specs
    Catalog Number
    WS250LA
    Manufacturer
    Wattstopper
    Manufacturer's Part Number
    WS-250-LA
    Description
    Pir Wall SWTCH Occsnsr, 120/277V, La
    Wall Switch Decorator Sensor, 120/277 V Ac, 800 W (120 V Ac);1200 W (277 V Ac), 35 X 30 FT (Major);20 X 15 FT (Minor) Coverage, Auto-Off Switch, 30 Sec to 30 Min Time Delay, 1.7 In Length, 1.55 In Width, 2.6 In Height, Light Almond, 5 Yr Warranty
    Slang Terms

    Suggest a New Term
    Similar Brands

    Categories
    Lighting Occupancy Sensors & M - Lighting Occupancy Sensors  Mark as Incorrect
    Suggest a New Category
    Classification
    Motion Sensors
    UNSPSC
    N/A
    UPC/GTIN
    754182923076 / 00754182923076
    Weight per unit
    0.3 (lbs/each)
    Price & Packaging
    Minimum Order Quantity
    1 Each
    Unit
    $52.85 (1 Each)
    Carton
    $52.85 (1 Each)
    Standard Packaging
    $2,114.00 (40 Each)
    Stock Availability
    Nacogdoches
    0 Each (Find nearest stock)
    All Stores
    66 Each
    Resources

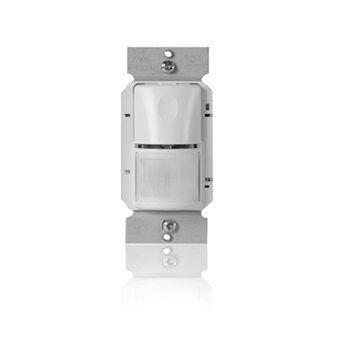

    Images


    WS250LA - Small Image

    WS250LA - Large Image

    WS250LA - Large Image
    Attachments


    WS250LA - Specification Sheet
    Installation Sheets


    WS250LA - Installation Sheet
    Specifications Sheets


    WS250LA - Specification Sheet


    Suggest Substitute Item
    Help Improve Our Data
  • Help Improve Our Data
    Features
    Voltage Rating
    120/277 V ac
    120/277 VAC AT 60 HZ
    Terminal Type
    6 Inch Flying Lead
    Material, Color, and Finish
    Color
    Light Almond
    Finish
    LIGHT ALMOND
    Dimensions and Weight
    Length
    1.7 in;43.1 mm
    Width
    1.55 in;39.4 mm
    Height
    2.6 in;66 mm
    Size
    2.6 INCH L X 1.7 INCH W X 1.55 INCH D
    Descriptions
    Description
    PIR WALL SWTCH OCCSNSR, 120/277V, LA
    Product Type
    Occupancy Sensor
    Wall Switch Decorator Sensor
    Short Description
    Wall Switch Decorator Sensor, 120;277 VAC, Light Almond, 35 x 30 ft (Major);20 x 15 ft (Minor) Coverage
    Long Description
    Wall Switch Decorator Sensor, 120/277 V ac, 800 W (120 V ac);1200 W (277 V ac), 35 x 30 ft (Major);20 x 15 ft (Minor) Coverage, Auto-Off Switch, 30 sec to 30 min Time Delay, 1.7 in Length, 1.55 in Width, 2.6 in Height, Light Almond, 5 yr Warranty
    SENSOR, SENSOR WITH RELAY; PASSIVE INFRARED SENSOR; 120/277 VAC AT 60 HZ; BALLAST/TUNGSTEN LOAD; 0 TO 800 W AT 120 VAC (BALLAST/TUNGSTEN), 0 TO 1200 W AT 277 VAC (BALLAST), 1/6 HP LOAD; 35 FT X 30 FT (MAJOR), 20 FT X 15 FT (MINOR) AREA COVERAGE
    Features
    The WS-250 Passive Infrared (PIR) Wall Switch Sensor turns lighting on and off based on occupancy and ambient light level. It replaces existing wall switches and fits behind a standard decorator wall plate.The WS-250 utilizes advanced PIR technology to detect occupancy. Detection occurs when the WS-250 senses the difference between infrared energy from a human body in motion and the background space. Lighting automatically turns on when occupancy is detected. After a user-specified length of time when no o
    Commodity Description
    MOTION SENSING DEVICES
    Additional Information
    Power Rating
    800 W (120 V ac);1200 W (277 V ac)
    coverage
    35 x 30 ft (Major);20 x 15 ft (Minor)
    Switch Type
    Auto-Off Switch
    Time Delay
    30 sec to 30 min
    30 SEC TO 30 MIN
    Warranty
    5 yr
    package quantity
    1 CT;40 PK
    Sensor Type
    PASSIVE INFRARED
    Load Rating
    0 TO 800 W AT 120 VAC (BALLAST/TUNGSTEN), 0 TO 1200 W AT 277 VAC (BALLAST), 1/6 HP
    Field of View
    180 DEG
    Area Coverage
    35 FT X 30 FT (MAJOR), 20 FT X 15 FT (MINOR)
    Load Type
    BALLAST/TUNGSTEN
    Wall Plate Type
    DECORATOR (NOT INCLUDED)
    Manufacturer Information
    Brand
    Pass & Seymour
    WATTSTOPPER
    Pass & Seymour/Legrand
    WATTSTOPPER/ON-Q
    Manufacturers Part Number
    WS-250-LA
    Model
    WS-250
    GTIN
    00754182923076
    UPC
    754182923076
    Taxonomies, Classifications, and Categories
    Category Description
    MOTION SENSORS
    Type
    SENSOR WITH RELAY
    Packaging
    Weight per each
    0.3
    Carton
    1
    Package
    40
    Uses, Certifications, and Standards
    Application
    Office;Conference Room;Break Room;Utility Room
    Office, Conference Room, Break Room, Utility Room
    Approval
    UL, CUL
    Mounting
    WALL
