2690 - TAB

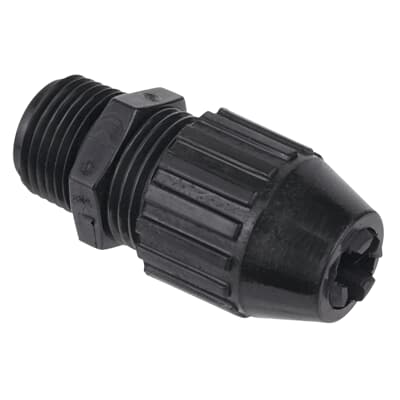

2690 - 1/2" Black Beauty Cord Fit (.125-.275)

T&B

  • $8.63 (for 1 Each)
  • $8.63 (1 Each)
  • $215.66 (25 Each)
  • $862.63 (100 Each)

In-Stock: 0 available locally (Nacogdoches, TX) (change location)

QTY:
Each
  • Help Improve Our Data
    Quick Specs
    Catalog Number
    2690
    Manufacturer
    T&B
    Manufacturer's Part Number
    2690
    Description
    1/2" Black Beauty Cord Fit (.125-.275)
    Cable Gland, Black, Nylon Material, NBBG-G Series Model, 1/2 In Size, 0.125 to 0.275 In Cable/Cord Size, 2.3 In Length, 0.90 In Diameter, Straight Connection, -29 °F Operating Temperature, +221 °F Operating Temperature, 0.0419 LB
    Slang Terms

    Suggest a New Term
    Similar Brands

    Categories
    Condubx, Non-Metallic CBL, S. - Cable & Cord Grips  Mark as Incorrect
    Suggest a New Category
    Classification
    Cord Connectors & Cord Grips
    UNSPSC
    39121431 - Cable gland connector
    UPC/EAN/GTIN
    786210026909 / 5414363140221 / 00786210026909
    Weight per unit
    0.045 (lbs/each)
    Price & Packaging
    Minimum Order Quantity
    1 Each
    Unit
    $8.63 (1 Each)
    Carton
    $215.66 (25 Each)
    Standard Packaging
    $862.63 (100 Each)
    Stock Availability
    Nacogdoches
    0 Each (Find nearest stock)
    All Stores
    684 Each
    Resources
    Images


    2690 - Large Image

    2690 - Large Image

    2690 - Large Image

    2690 - Large Image

    2690 - Small Image

    2690 - Large Image
    Attachments


    2690 - Specification Sheet

    2690 - Specification Sheet

    2690 - Specification Sheet
    Other Links


    2690 - Other


    Suggest Substitute Item
    Help Improve Our Data
  • Help Improve Our Data
    Features
    Material
    Nylon
    NYLON
    Material, Color, and Finish
    Color
    Black Gloss
    Dimensions and Weight
    Size
    1/2 in
    1/2 INCH
    Length
    2.3 in
    Diameter
    0.90 in
    Descriptions
    Product Type
    Cable Gland
    Racc Droit Nylon Etanche Antitracti
    Long Description
    Cable Gland, Black, Nylon Material, NBBG-G Series Model, 1/2 in Size, 0.125 to 0.275 in Cable/Cord Size, 2.3 in Length, 0.90 in Diameter, Straight Connection, -29 °F Operating Temperature, +221 °F Operating Temperature, 0.0419 lb
    Short Description
    Cable Gland, Nylon, ½ in, .125-.275
    Special Features
    Large Cable Clamping Range;Liquid Tight Mechanical Grip;Full Length Busing Seal Protects Cable;Extended Pull Out Performance;Corrosion Resistant
    Hand Tightens, No Tools Needed for Assembly
    Description
    1/2" BLACK BEAUTY CORD FIT (.125-.275)
    Additional Information
    Cable/Cord Size
    0.125 to 0.275 in
    Enclosure Type
    Type 4X
    Connection Type
    Straight
    Minimum Operating Temperature
    -34 °C;-29 °F
    Maximum Operating Temperature
    +105 °C;+221 °F
    Standards Met
    UL E13938 Listed;CSA Certified 52391;NEC Class 1, Div 2, Class II, Div 1 & 2, Class III, Div 1 & 2;NEFA 70;Federal Standard H-28;CG293 (US Coastguard);RoHS Compliant
    package quantity
    25 CT;100 PK
    Made in USA
    Yes
    Manufacturer Information
    Brand
    Thomas & Betts
    T&B
    Carlon(R)
    Model
    NBBG-G Series
    Manufacturers Part Number
    2690
    GTIN
    00786210026909
    UPC
    786210026909
    Taxonomies, Classifications, and Categories
    Category Description
    CORD CONNECTORS & CORD GRIPS
    Type
    Cord Connectors-Straight
    Packaging
    Weight
    0.0419 lb
    Weight per each
    0.045
    Carton
    25
    Package
    100
    Uses, Certifications, and Standards
    Application
    To Connect Flexible Cord to a Box or Enclosure and Provide Adequate Strain Relief
    To Connect Flexible Cord to a Box or Enclosure and Provide Adequate Strain Relief.
    Temperature Rating
    -34 to 105 C
    standard
    UL E13938, CSA
