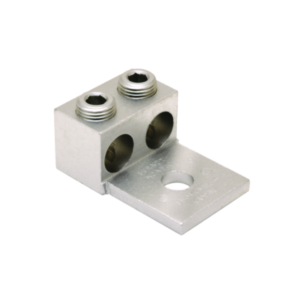

K2A29U - Two:6STR-250 Dual Rated

Burndy

$27.52 (Each)
$27.52 (Each)
$165.12 (Per 6)

Availability: Call for Availability

Buy Now

QTY:

Each

Also in stock

$1,324.10Per 100

ADR2521

Abb Installation Products, Inc
250 Al/Cu 2 Conduct Lug

View Item or Compare

Overview
Specifications
Current Stock
Alternate Items

Overview

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Help Improve Our Data

Quick Specs

Catalog Number: K2A29U Vendor Code BUR
Manufacturer: Burndy
Manufacturer's Part Number: K2A29U
Description: Two:6STR-250 Dual Rated
Conductor Lug, #6 Awg (Stranded) Conductor Size, 250 Kcmil (Stranded) Conductor Size, Non-Insulated, Copper/Aluminum Conductor Material, 2 Conductors, +194 °F Operating Temperature, 2.56 In Overall Length, Screw Terminal, 600 V
Slang Terms: Suggest a New Term
Categories: Solderless Connectors - Large Terminals & Connectors Mark as Incorrect
Suggest a New Category
Classification: Comp & Mech Lugs and Butt Splices
UNSPSC: 39121408 - Mechanical connectors
UPC/GTIN: 781810600108 / 00781810600108
Weight per unit: 0.19 (lbs/each)

Price & Packaging

Minimum Order Quantity: 1
Unit: $27.52 (Each)
Carton: $165.12 (Per 6)

Resources

Images
: K2A29U - Large Image
: K2A29U - Small Image
: K2A29U - Large Image
Specifications Sheets
: K2A29U - Specification Sheet
Brochures
: K2A29U - Brochure
Other Links
: K2A29U - Other
: K2A29U - Other
Attachments
: K2A29U - Specification Sheet

Suggest Substitute Item

Help Improve Our Data

Edit Mode: Please login to suggest improvements for this item.

Specifications

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Help Improve Our Data

Features

Terminal Type: Screw
Number of Conductors: 2
Material: Aluminum

Material, Color, and Finish

Conductor Material: Copper;Aluminum

Dimensions and Weight

Overall Length: 2.56 in;65 mm

Descriptions

Description: TWO:6STR-250 DUAL RATED
Product Type: Conductor Lug
extra long description: BUR K2A29U TWO:6STR-250 DUAL RATED
Long Description: Conductor Lug, #6 AWG (Stranded) Conductor Size, 250 kcmil (Stranded) Conductor Size, Non-Insulated, Copper/Aluminum Conductor Material, 2 Conductors, +194 °F Operating Temperature, 2.56 in Overall Length, Screw Terminal, 600 V
Features: These Dual-Rated Two-Conductor Lugs Are Constructed From High Strength Aluminum Alloy And Electro Tin-Plated To Provide Low Contact Resistance, Number Of Screws: 1, Dimension T: 0.25 IN, Stud/bolt Hole Size: 3/8 IN, Dimension D: 1.5 IN, Dimension N: 0.5 IN, Set Screw Type: Allen Key, Installation Torque: 275 IN-LB, Width: 1.66 IN, Length: 2.56 IN, Height: 1.2 IN
Short Description: Conductor Lug, Non-Insulated, 2.56 in;65 mm, 600 V
Special Features: These Dual-Rated Two Conductor Lugs are Constructed from High Strength Aluminum Alloy and Electro Tin-Plated to Provide Low Contact Resistance

Additional Information

Maximum Conductor Size: 250 kcmil (Stranded)
For Stud Size: 3/8 in
Insulated/Non-Insulated: Non-Insulated
Minimum Conductor Size: #6 AWG (Stranded)
Maximum Operating Temperature: +194 °F
for use with: Aluminum to Aluminum Connection;Aluminum to Copper Connection;Copper to Copper Connection
Maximum Voltage Rating: 600 V
Standards Met: RoHS Compliant;UL Listed 468A 468B
package quantity: 1 CT;6 Pk

Manufacturer Information

Brand: BURNDY
Manufacturers Part Number: K2A29U
sub brand: Burndy
GTIN: 00781810600108
UPC: 781810600108

Taxonomies, Classifications, and Categories

Category Description: Comp & Mech Lugs and Butt Splices
Type: Bolted Lugs & Terminals

Packaging

Weight per each: 0.19
Carton: 6

Uses, Certifications, and Standards

Temperature Rating: 194
Application: For Aluminum And Copper Conductors
standard: UL 486A-486B

Help Improve Our Data

Edit Mode: Please login to suggest improvements for this item.

Current Stock

You must have an account to view stock levels

Alternate Items

These alternate items can be purchased instead of K2A29U.

Jump To:

Mechanical Connector, #6 Awg Conductor Size, 250 MCM Conductor Size, Non-Insulat...

Our Part #: 2250T
Nacogdoches Availability: Out Of Stock
Total Availability: In Stock

MFR Part #: 2-250T
Manufacturer: Nsi Industries
Find: Similar Items
Pkg Sizes: 10 ($97.65) ·

2250T - Nsi Industries

Nacogdoches Availability: Out Of Stock

Total Availability: In Stock

Book Price

$9.77

Each

QTY:

Each

Add

Spec Sheet

QTY:

Each

Add

View Larger

Mechanical Connector Lug, #6 Awg (Stranded) Conductor Size, 250 Kcmil Conductor ...

Our Part #: ADR2521
Nacogdoches Availability: In Stock
Total Availability: In Stock

MFR Part #: ADR25-21
Manufacturer: Abb Installation Products, Inc
Find: Similar Items
Pkg Sizes: 12 ($158.89) ·

ADR2521 - Abb Installation Products, Inc

Nacogdoches Availability: In Stock

Total Availability: In Stock

Book Price

$13.24

Each

QTY:

Each

Add

Spec Sheet

View In Catalog

QTY:

Each

Add

Cross Referenced

These items are similar to K2A29U but are not currently available from Elliott Electric Supply.

Part #	MFR/Brand	GTIN
K2A29U	Burndy	00781810600108
K2A-29U	Burndy	781810600108
AD250	DOSSERT	n/a
AML2502	ERICO	00782856316831
DLA-250	Galvan Industries	00632591712491
AA250	Greaves	00784491502204
AA-250	Greaves	784491502204
DU250	Hubbell Power Systems	96359301370
87044	Ideal Industries	00783250870448
AU250	ILSCO	00783669003307
AU-250	ILSCO	783669003307
90816	Morris	00601986908160
2250T	NSi Industries	00662381001221
2-250T	NSi Industries	662381001221
LAM2A250386	Panduit	07498391091
L2A-250	Penn-Union	785037444040
AD250	Thomas & Betts	00783786691999
ADR2521	Thomas & Betts	00783786610129
UA25	Thomas & Betts	n/a
AD-250D	Thomas & Betts	n/a
ADR25-21	Thomas & Betts	783786610129
AD-250	Thomas & Betts	783786691999
