- Features
-
- Poles
-
1
- Voltage Rating
-
120 to 277 v
- Wattage
-
2216
- amperage rating
-
48.000 48.000
- Material
-
METAL/PLASTIC
- actuator
-
Paddle Switch
- insulation
-
Plastic
- connection
-
Wire Leads
- Lamp Type
-
Fluorescent
- Material, Color, and Finish
-
- Color
-
White
- Dimensions and Weight
-
- Height
-
4.69 in;119 mm
- Size
-
4.69 in (119 mm) x 2.94 in (75 mm)
- Length
-
2.94 in;75 mm
- Width
-
2.75 in;70 mm
- Descriptions
-
- Product Type
-
dimmable Bulb
- Long Description
-
Dimmable Bulb, Paddle Switch, 120 to 277 V, 3 W, Fluorescent Lamp, Wall Mount, 2.94 in Length, 2.75 in Width, 4.69 in Height, White, +32 °F Operating Temperature, +104 °F Operating Temperature, 1 yr Warranty, 0.26 lb/EA
- Special Features
-

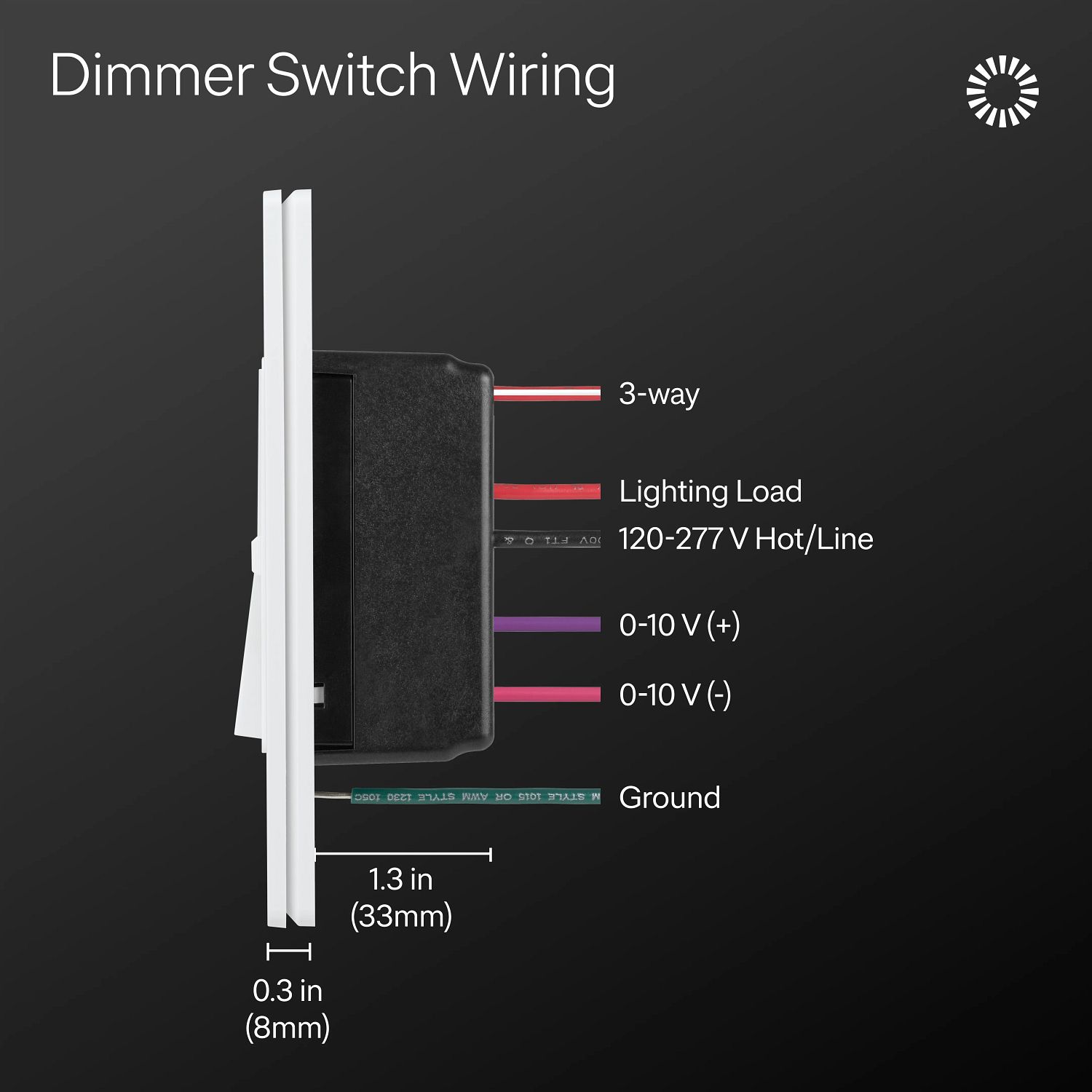

Controls 0-10 V LED or fluorescent fixture loads, 50 mA max control current. Paddle turns on/off. Slide up to brighten, down to dim.
- Features
-
C•L dimmers are UL listed for controlling a broad range of dimmable CFLs and LEDs. They offer more reliable dimming performance over standard dimmers when dimming CFLs and LEDs, and also provide full range dimming for incandescent and halogen bulbs
- Short Description
-
Dimmable Bulb Paddle Switch, 1P,3W, Fluorescent, White
- extra long description
-
LUT DVSTV-WH DIVA 0-10 W/SWITCHING
- Description
-
DIVA DV 8A 0-10V 3WY WHITE
- Additional Information
-
- Cable Size
-
32 to 104
- Coil Voltage
-
48.000 48.000
- Switch Type
-
Paddle Switch
- Power Rating
-
3 W
- Minimum Operating Temperature
-
+0 °C;+32 °F
- Maximum Operating Temperature
-
+40 °C;+104 °F
- Mounting Type
-
Wall Mount
- Warranty
-
1 yr
- package quantity
-
1 CA;4 PK
- Manufacturer Information
-
- Manufacturers Part Number
-
DVSTV-WH
- sub brand
-
Diva(R)
- Brand
-
Lutron
- GTIN
-
00784276099622
- UPC
-
784276099622
- Taxonomies, Classifications, and Categories
-
- Category Description
-
Residential dimmers, motion sensors, controls, & photo cells
- Type
-
Dimmer, 3-way/single-pole
- Packaging
-
- Weight
-
0.26 lb/EA
- Weight per each
-
0.26
- Carton
-
1
- Package
-
4
- Uses, Certifications, and Standards
-
- Operating Temperature
-
32 to 104 F (0 to 40 C)
- Frequency Rating
-
60
- environmental conditions
-
Indoor use only
- Application
-
Lighting Control
- Enclosure
-
Plastic
- standard
-
UL, CSA
- Mounting
-
WALLBOX
