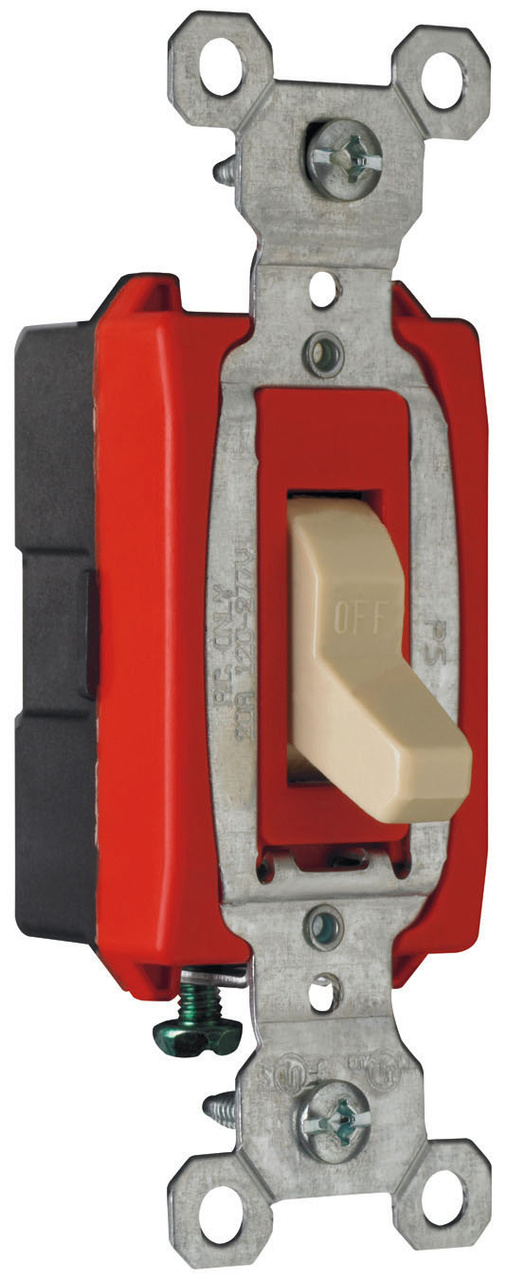

CS20AC1I - PAS

CS20AC1I - 20A SP Spec Switch 120/277V

Legrand-Pass & Seymour

  • $3.94 (Each)
  • $3.94 (Each)
  • $393.74 (Per 100)

In-Stock: 55 available locally (Nacogdoches, TX) (change location)

QTY:
Each
  • Help Improve Our Data
    Quick Specs
    Catalog Number
    CS20AC1I
    Manufacturer
    Legrand-Pass & Seymour
    Manufacturer's Part Number
    CS20AC1-I
    Description
    20A SP Spec Switch 120/277V
    Toggle Switch, 1 Pole, 20 A, 120/277 V Ac, Nylon Material, Silver Cadmium Oxide Contact Material, Ivory, Grounding Connection, Wall Mount, 1.320 (L) X 1.073 (W) X 3.281 (H) In, -40 °C Operating Temperature, +115 °C Operating Temperature, 0.16 LB
    Slang Terms

    Suggest a New Term
    Similar Brands

    Categories
    Gen Purpose Wiring Devices - Gen Purpose Switches  Mark as Incorrect
    Suggest a New Category
    Classification
    Commercial Switches
    UNSPSC
    N/A
    UPC/GTIN
    785007126457 / 00785007126457
    Weight per unit
    0.164 (lbs/each)
    Price & Packaging
    Minimum Order Quantity
    1
    Unit
    $3.94 (Each)
    Carton
    $3.94 (Each)
    Stock Availability
    Nacogdoches
    55 (Check another store)
    All Stores
    1,660
    Resources
    Images


    CS20AC1I - Large Image

    CS20AC1I - Large Image

    CS20AC1I - Large Image

    CS20AC1I - Small Image

    CS20AC1I - Large Image
    Installation Sheets


    CS20AC1I - Installation Sheet
    Attachments


    CS20AC1I - Specification Sheet

    CS20AC1I - Specification Sheet

    CS20AC1I - Specification Sheet
    Brochures


    CS20AC1I - Brochure
    Other Links


    CS20AC1I - Other

    CS20AC1I - Other

    CS20AC1I - Other


    Suggest Substitute Item
    Help Improve Our Data
  • Help Improve Our Data
    Features
    Current Rating
    20 A
    Voltage Rating
    120/277 V ac
    120/277 VAC
    Material
    Nylon
    Poles
    1 PH
    amperage rating
    20 Amps
    insulation
    None IN
    actuator
    Toggle Switch
    Material, Color, and Finish
    Contact Material
    Silver Cadmium Oxide
    Color
    Ivory
    IVORY
    Dimensions and Weight
    Size
    3.3 in
    Descriptions
    Product Type
    20A 120/277VAC S Wire Comm SP SW I
    Toggle Switch
    Description
    20A SP SPEC SWITCH 120/277V
    Long Description
    Toggle Switch, 1 Pole, 20 A, 120/277 V ac, Nylon Material, Silver Cadmium Oxide Contact Material, Ivory, Grounding Connection, Wall Mount, 1.320 (L) x 1.073 (W) x 3.281 (H) in, -40 °C Operating Temperature, +115 °C Operating Temperature, 0.16 lb
    Commercial single pole switch in ivory with side wire, has a high strength thermoplastic polycarbonate toggle whichresists to breaking and chipping under heavy abuse. The one-piece brass alloy contact arm allows for reliable electrical performance. Also, the one-piece steel strap with integral ground is plated for corrosion resistance. Its heavy-duty toggle bumpers give it a smooth and quiet operation. Its back body is made of glass-reinforced nylon. Its locking support provide resistance to face and back
    Features
    Commercial single pole switch in ivory with side wire, has a high strength thermoplastic polycarbonate toggle which resists to breaking and chipping under heavy abuse. The one-piece brass alloy contact arm allows for reliable electrical performance. Also, the one-piece steel strap with integral ground is plated for corrosion resistance. Its heavy-duty toggle bumpers give it a smooth and quiet operation. Its back body is made of glass-reinforced nylon. Its locking support provide resistance to face and back
    Short Description
    20 A, 120/277 VAC, Toggle Switch, Ivory, 1 Pole, 4 Ways, Commercial
    Special Features
    Side Wire;Locking Support;Heavy Duty Toggle
    Side wire, locking support, heavy duty toggle
    Additional Information
    Connection Type
    Grounding
    actuator type
    Toggle
    Mounting Type
    Wall Mount
    dimensions
    1.320 (L) x 1.073 (W) x 3.281 (H) in
    Minimum Operating Temperature
    -40 °C
    Maximum Operating Temperature
    +115 °C
    Standards Met
    RoHS Compliant;UL Listed File Number E140597;UL20;Federal Specification WS896;cULus Listed File Number LR17446;CSA-C22.2 No. 111
    package quantity
    1 CT
    Contact Rating
    20Amp, 120/277Vac
    action
    Single pole
    Manufacturer Information
    Brand
    Pass & Seymour/Legrand
    LEGRAND-PASS & SEYMOUR
    Pass and Seymour
    Pass & Seymour
    legrand
    Manufacturers Part Number
    CS20AC1-I
    sub brand
    Pass & Seymour
    GTIN
    00785007126457
    UPC
    785007126457
    Taxonomies, Classifications, and Categories
    Category Description
    Commercial switches
    Type
    TOGGLE SWITCH
    Packaging
    Weight
    0.16 lb
    Weight per each
    0.164
    Carton
    1
    Uses, Certifications, and Standards
    nema rating
    NEMA WD-1;NEMA WD-6
    Application
    Commercial TEST
    Enclosure
    Nylon
    standard
    UL 498/20
    Mounting
    WALL
