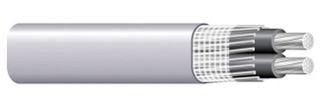

SER20500 - ALU

SER20500 - 2/0-2/0-2/0-1 Alu 500'

Aluminum

  • $2.19 (for 1 Foot)
  • $2.19 (1 Foot)
  • $1,096.80 (500 Feet)
  • $2,193.61 (1,000 Feet)

In-Stock: 0 available locally (Nacogdoches, TX) (change location)

QTY:
Feet
  • Help Improve Our Data
    Quick Specs
    Catalog Number
    SER20500
    Manufacturer
    Aluminum
    Manufacturer's Part Number
    13105201
    Description
    2/0-2/0-2/0-1 Alu 500'
    Service Entrance Cable, Stranded, 12 Strands, 2/0 Awg Conductor Size, Aluminum Conductor Material, PVC Jacket Material, Polyethylene (Xlpe) Insulation Material, 600 V, 115 A (60°C);135 A (75°C);150 A (90°C), Gray, 3 Conductors, 500 FT Overall Length, 1264 Mil Outside Diameter, +90 °C Operating Temperature, 653 LB/MFT
    Slang Terms

    Suggest a New Term
    Similar Brands

    Categories
    Service Entrance Cable - Aluminum-Ser /NS-1/NS-2  Mark as Incorrect
    Suggest a New Category
    Classification
    Service Entrance - Seu & Ser
    UNSPSC
    26121614 - Building cable
    UPC/GTIN
    032886584855 / 00032886584855
    Weight per unit
    0.651 (lbs/ft)
    Price & Packaging
    Minimum Order Quantity
    1 Foot
    Unit
    $2.19 (1 Foot)
    Reel
    $1,096.80 (500 Feet)
    Stock Availability
    Nacogdoches
    0 Feet (Find nearest stock)
    All Stores
    5,086 Feet
    Resources
    Images


    SER20500 - Large Image

    SER20500 - Small Image

    SER20500 - Large Image
    Specifications Sheets


    SER20500 - Specification Sheet


    Suggest Substitute Item
    Help Improve Our Data
  • Help Improve Our Data
    Features
    Conductor Size
    2/0 AWG
    (3) 2/0 AWG
    Current Rating
    115 A (60°C);135 A (75°C);150 A (90°C)
    115 AMPERE (60 DEG C), 135 AMPERE (75 DEG C), 150 AMPERE (90 DEG C)
    Number of Conductors
    3
    Stranding
    12 STRANDS
    Voltage Rating
    600 V
    Material, Color, and Finish
    Conductor Material
    Aluminum
    ALUMINUM
    Jacket Material
    PVC
    GRAY PVC
    Insulation Material
    Polyethylene (XLPE)
    Color
    Gray
    Dimensions and Weight
    Overall Length
    500 ft
    Outer Diameter
    1264 MIL
    Length
    500 FT
    Length in ft
    500 W
    Descriptions
    Product Type
    Service Entrance Cable
    Description
    2/0-2/0-2/0-1 ALU 500'
    Long Description
    Service Entrance Cable, Stranded, 12 Strands, 2/0 AWG Conductor Size, Aluminum Conductor Material, PVC Jacket Material, Polyethylene (XLPE) Insulation Material, 600 V, 115 A (60°C);135 A (75°C);150 A (90°C), Gray, 3 Conductors, 500 ft Overall Length, 1264 mil Outside Diameter, +90 °C Operating Temperature, 653 lb/mft
    SERVICE ENTRANCE CABLE, SER TYPE; 500 FT; 1264 MIL OUTER DIAMETER; ALUMINUM CONDUCTOR MATERIAL; UL 44/83/854 APPROVAL; 600 V VOLTAGE RATING; 115 AMPERE (60 DEG C), 135 AMPERE (75 DEG C), 150 AMPERE (90 DEG C) CURRENT RATING; 90 DEG C TEMPERATURE RATING
    Features
    Cable shall be UL-listed Type SE, Style U, suitable for operation at 600 volts or less in all installations as specified in the National Electrical Code. Conductors shall be annealed copper, Type XHHW-2 or Type THHN/THWN, weather resistant PVC jacketed, as manufactured by Southwire Company or approved equal.
    Short Description
    Service Entrance Cable, 12 Strands, 2/0 AWG, 500'
    Additional Information
    Sunlight Resistant
    RoHS Compatible; Applicable Standard NEC/NFPA 70, Federal Specification A-A-59544
    Commodity Description
    ALUMINUM SE CABLE-SER / NS-1 / NS-2
    Additional Information
    Solid/Strand
    Stranded
    Number of Strands
    12
    outside diameter
    1264 mil
    Maximum Operating Temperature
    +90 °C
    Standards Met
    UL 44;UL 83;UL 854;RoHS Compliant;NEC/NFPA 70;Federal Specification A-A-59544
    Made in USA
    Yes
    Ground Conductor Size
    1 AWG
    Ground Type
    WITH GROUND WIRE
    Manufacturer Information
    Brand
    SOUTHWIRE
    Aluminum
    SOUTHWIRE COMPANY
    Manufacturers Part Number
    13105201
    Model
    SE
    GTIN
    00032886584855
    UPC
    032886584855
    Taxonomies, Classifications, and Categories
    Category Description
    SERVICE ENTRANCE - SEU & SER
    Type
    SER
    Packaging
    Weight
    653 lb/mft
    653 LB/MFT
    Package Type
    REEL
    Weight per foot
    0.651
    Carton
    500
    Uses, Certifications, and Standards
    Application
    Distribution Panelboard;Wet or Dry Locations
    Approval
    UL 44/83/854
    Temperature Rating
    90 DEG C
    Help Improve Our Data
