XHHW20PCS - ALU

Also in stock

XHHW20BK2500 - Al XHHW 2/0 BK 2500 - Aluminum
$499.57Per 1,000 Feet

Aluminum
Al XHHW 2/0 BK 2500


View or Compare

XHHW20PCS - Al XHHW 2/0 STR BK PCS

Aluminum

  • $0.53 (for 1 Foot)
  • $0.53 (1 Foot)
  • $533.04 (1,000 Feet)

In-Stock: 0 available locally (Nacogdoches, TX) (change location)

QTY:
Feet
  • Help Improve Our Data
    Quick Specs
    Catalog Number
    XHHW20PCS
    Manufacturer
    Aluminum
    Manufacturer's Part Number
    XHHW20PCS
    Description
    Al XHHW 2/0 STR BK PCS
    Aluminum Building Wire, Abrasion, Moisture, Heat and Sunlight Resistant Insulation;Cable Can Be Installed Without Pulling Lubricant Additional Information, General Purpose Wiring Application, Black, Aluminum Conductor Material, 2/0 Awg Conductor Size, 150 A Current Rating, Polyethylene Insulation Material, 55 Mil Insulation Thickness, Made In Usa, +90 °C Maximum Operating Temperature, 19 - Strands, 0.450 In Outside Diameter, 1000 FT Overall Length, Carton Package Type, Directive 2002/95/Ec;Federal Specific
    Slang Terms

    Suggest a New Term
    Similar Brands

    Categories
    Aluminum Building Wire - XHHW-STR (Stranded)  Mark as Incorrect
    Suggest a New Category
    Classification
    Alum Building Wire
    UNSPSC
    -
    UPC/EAN/GTIN
    80394012517
    Weight per unit
    0.161 (lbs/ft)
    Price & Packaging
    Minimum Order Quantity
    1 Foot
    Unit
    $0.53 (1 Foot)
    Reel
    $0.53 (1 Feet)
    Stock Availability
    Nacogdoches
    0 Feet (Find nearest stock)
    All Stores
    43,501 Feet
    Resources
    Images

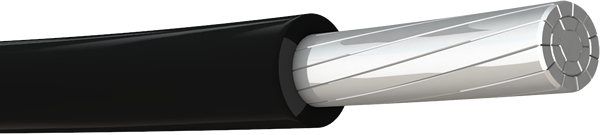

    XHHW20PCS - Small Image

    XHHW20PCS - Large Image


    Suggest Substitute Item
    Help Improve Our Data
  • Help Improve Our Data
    Features
    Current Rating
    150 A
    Voltage Rating
    600 V
    Conductor Size
    2/0 AWG
    Material, Color, and Finish
    Insulation Material
    Polyethylene
    Conductor Material
    Aluminum
    Color
    Black
    Dimensions and Weight
    Overall Length
    1000 ft
    Descriptions
    Product Type
    Aluminum Building Wire
    Long Description
    Aluminum Building Wire, Abrasion, Moisture, Heat and Sunlight Resistant Insulation;Cable can be Installed without Pulling Lubricant Additional Information, General Purpose Wiring Application, Black, Aluminum Conductor Material, 2/0 AWG Conductor Size, 150 A Current Rating, Polyethylene Insulation Material, 55 mil Insulation Thickness, Made in USA, +90 °C Maximum Operating Temperature, 19 - Strands, 0.450 in Outside Diameter, 1000 ft Overall Length, Carton Package Type, Directive 2002/95/EC;Federal Specific
    Features
    Compact stranded 8000 Series aluminum alloy conductor. Insulation is an abrasion, moisture, heat and sunlight resistant black cross-linked polyethylene. Cable can be installed without pulling lubricant. CT rated available when requested on sizes 1/0 AWG and larger. KINGWIRE Type XHHW-2 is intended for use as general purpose wiring for up to 600 volt rated services in air conduit or other recognized raceways for services, feeders and branch circuit wiring as specified in the National Electrical Code at a ma
    Short Description
    Aluminum Conductor Building Wire, 2/0 AWG, Polyethylene Insulation, Black
    Additional Information
    Abrasion, Moisture, Heat and Sunlight Resistant Insulation;Cable can be Installed without Pulling Lubricant
    Description
    AL XHHW 2/0 BK PCS
    Additional Information
    Number of Strands
    19
    outside diameter
    0.450 in
    Insulation Thickness
    55 mil
    Made in USA
    Yes
    Maximum Operating Temperature
    +90 °C
    Standards Met
    UL Listed;Federal Specification JC-30B NEC, ASTM B-800, B-801;RoHS Compliant;Directive 2002/95/EC;ICEA S-95-658;NEMA WC 70
    Manufacturer Information
    Brand
    KING WIRE INC.
    Aluminum
    Manufacturers Part Number
    XHHW20PCS
    Taxonomies, Classifications, and Categories
    Category Description
    ALUM BUILDING WIRE
    Packaging
    Weight
    161 lb/1000 ft
    Package Type
    Carton
    Weight per foot
    0.161
    Carton
    1
    Uses, Certifications, and Standards
    Application
    General Purpose Wiring
    Help Improve Our Data
