FNM15 - BUS

Also in stock

MEN15 - 15A 250V TD Midget Fuse - Edison Fuses
$6.26Per Each

Edison Fuses
15A 250V TD Midget Fuse


View or Compare

FNM15 - 15A 250V TD Midget Fuse

Cooper Bussmann

  • $8.00 (for 1 Each)
  • $8.00 (1 Each)
  • $80.00 (10 Each)

In-Stock: 0 available locally (Nacogdoches, TX) (change location)

QTY:
Each
  • Help Improve Our Data
    Quick Specs
    Catalog Number
    FNM15
    Manufacturer
    Cooper Bussmann
    Manufacturer's Part Number
    FNM-15
    Description
    15A 250V TD Midget Fuse
    Fuse, Time Delay Fuse Speed, Class CC Fuse, Ferrule End X Ferrule End Connection, 15 A, 250 V Ac, Melamine (Tube);Brass (Cap) Material, Dual Element, 0.41 In Diameter, 1.5 In Overall Length, 0.125 LB
    Slang Terms

    Suggest a New Term
    Similar Brands

    Categories
    Fuses & Fuse Accessories - Small Dimension Fuses  Mark as Incorrect
    Suggest a New Category
    Classification
    Glass Fuses (and Ceramic)
    UNSPSC
    39121609 - Midget fuses
    UPC/GTIN
    051712521505 / 00051712521505
    Weight per unit
    0.02 (lbs/each)
    Price & Packaging
    Minimum Order Quantity
    1 Each
    Unit
    $8.00 (1 Each)
    Carton
    $80.00 (10 Each)
    Stock Availability
    Nacogdoches
    0 Each (Find nearest stock)
    All Stores
    340 Each
    Resources
    Attachments


    FNM15 - Specification Sheet

    FNM15 - Specification Sheet

    FNM15 - Specification Sheet

    FNM15 - Specification Sheet
    Images

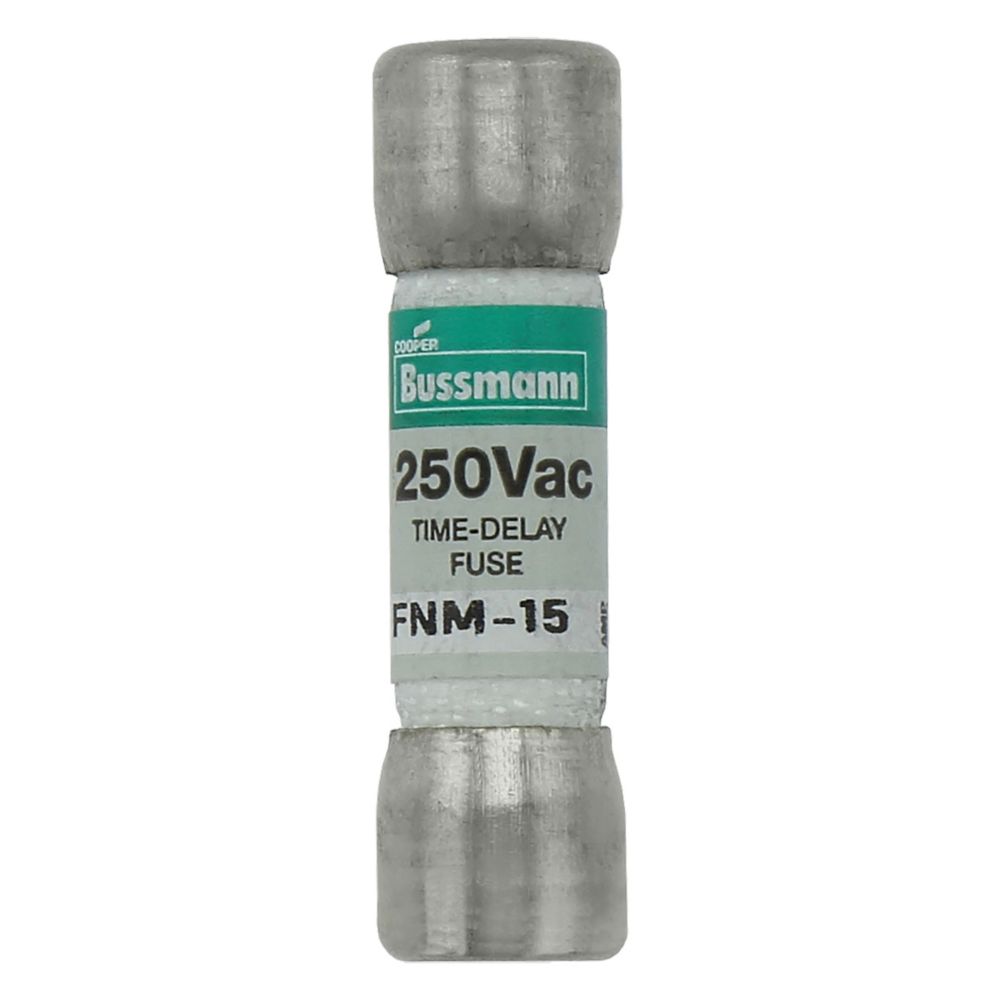

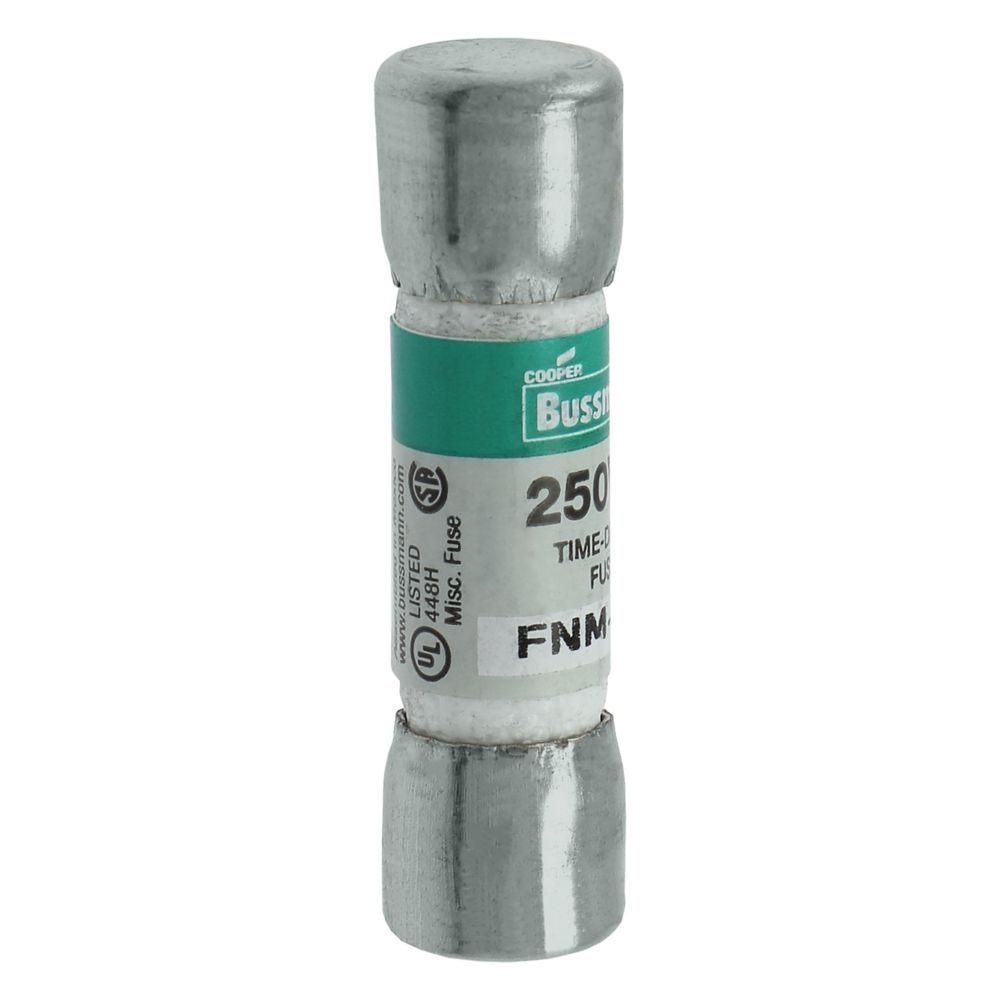

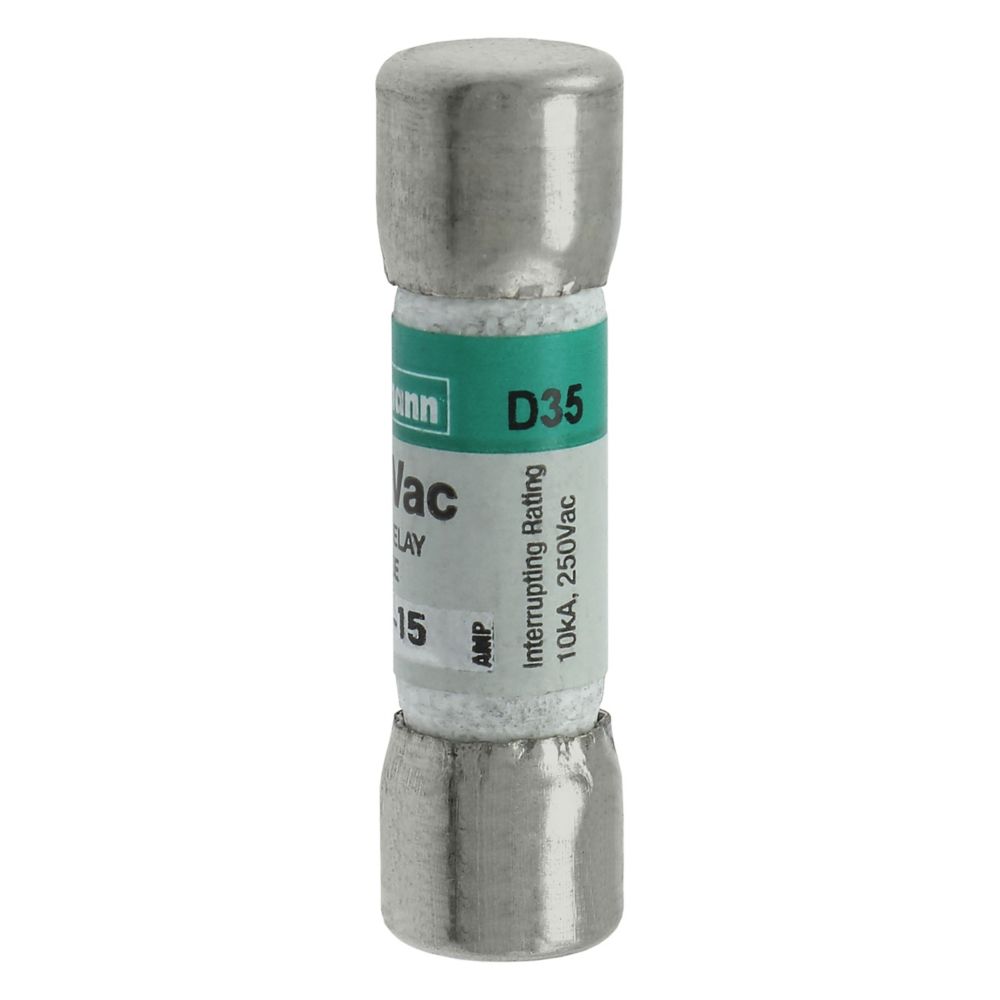

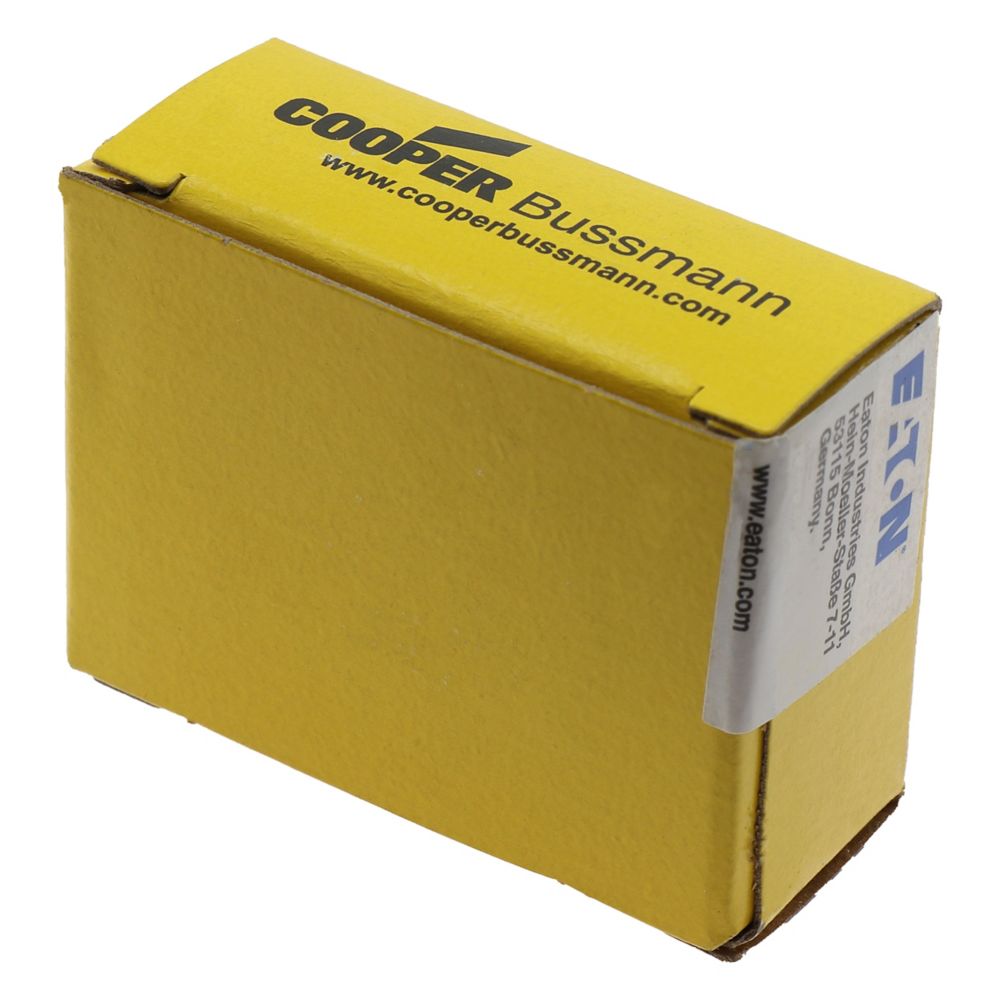

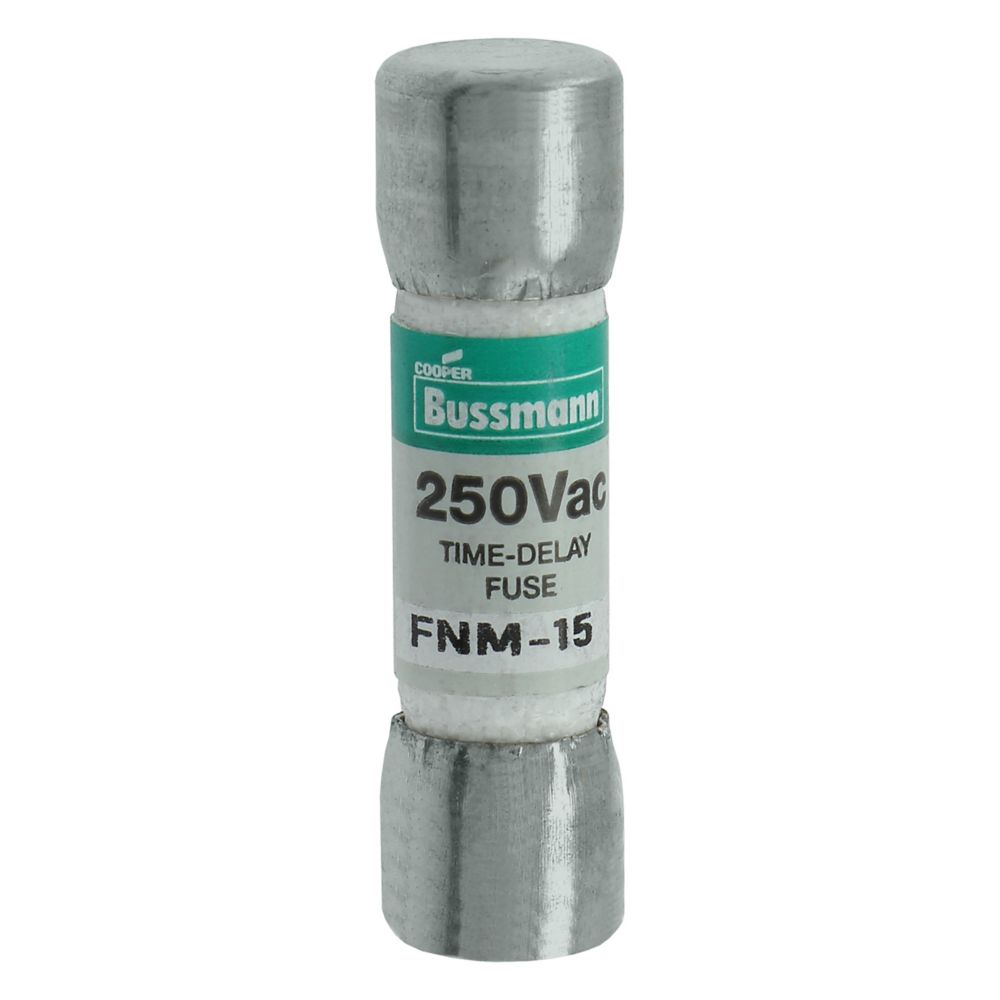

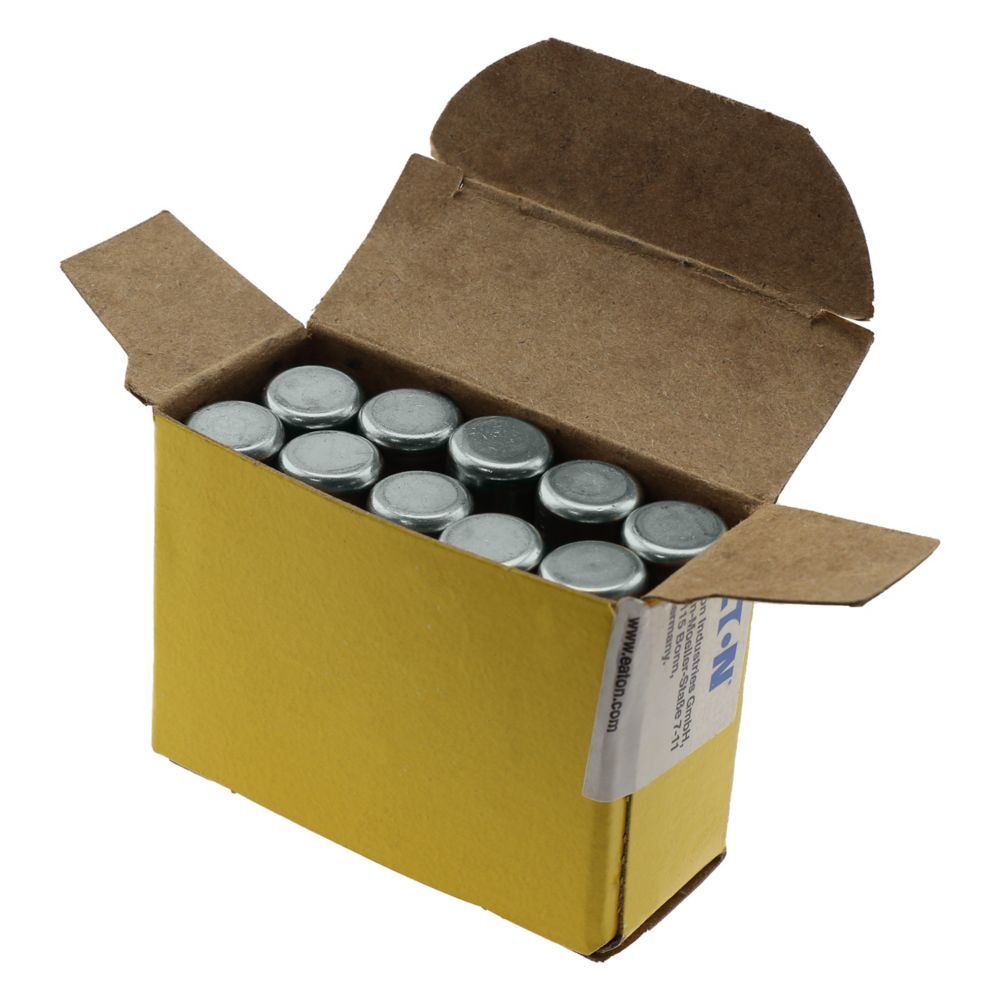

    FNM15 - Large Image

    FNM15 - Small Image

    FNM15 - Large Image

    FNM15 - Large Image

    FNM15 - Large Image
    Other Links


    FNM15 - Other
    Brochures


    FNM15 - Brochure


    Suggest Substitute Item
    Help Improve Our Data
  • Help Improve Our Data
    Features
    Current Rating
    15 A
    Voltage Rating
    250 V ac
    250 W
    Material
    Melamine (Tube);Brass (Cap)
    Fiber Tube
    interrupt rating
    10 kAIC @ 250 V ac
    10000 Amp
    amperage rating
    15 W
    connection
    Ferrule End X Ferrule End
    Dimensions and Weight
    Diameter
    0.41 in;10.3 mm
    Overall Length
    1.5 in;38.1 mm
    Size
    13/32 In Diameter X 1-1/2 In Length
    Descriptions
    Product Type
    Buss Midget Fuse
    Fuse
    Description
    15A 250V TD MIDGET FUSE
    Features
    For superior protection, Eaton recommends upgrading to Bussmann series Low-Peak(TM) Class CC fuses. See data sheet No. 1023.
    Long Description
    Fuse, Time Delay Fuse Speed, Class CC Fuse, Ferrule End x Ferrule End Connection, 15 A, 250 V ac, Melamine (Tube);Brass (Cap) Material, Dual Element, 0.41 in Diameter, 1.5 in Overall Length, 0.125 lb
    Short Description
    15 A, 250 VAC, Time Delay Fusetron Fuse
    Special Features
    Nickle Plated Brass Endcap
    Additional Information
    Connection Type
    Ferrule End x Ferrule End
    Fuse Speed
    Time Delay
    Fuse Class
    Class CC
    Element Type
    Dual
    Standards Met
    UL 248-14 Listed Guide JDYX;File E19180;CSA Certified Class 1422-01;File 53787;CE Certified
    package quantity
    10 CT
    Made in USA
    Yes
    element
    Dual
    Manufacturer Information
    Brand
    Eaton;Fusetron(TM)
    COOPER BUSSMANN
    Bussmann Fuses
    Fusetron
    Manufacturers Part Number
    FNM-15
    sub brand
    Fusetron
    GTIN
    00051712521505
    UPC
    051712521505
    Taxonomies, Classifications, and Categories
    Category Description
    GLASS FUSES (and ceramic)
    Type
    Time Delay
    Packaging
    Weight
    0.125 lb;0.057 kg
    Weight per each
    0.02
    Carton
    10
    Uses, Certifications, and Standards
    Application
    General Purpose Circuits;Lighting Circuit Protection;Meter Circuits
    General Purpose Circuits, Lighting Circuit Protection, Meter Circuits
    standard
    UL 248-14, CSA, CE
