FNQR5 - BUS

Also in stock

HCTR5 - 5A 600V TD Class CC Fuse - Edison Fuses
$16.43EA

Edison Fuses
5A 600V TD Class CC Fuse


View or Compare

FNQR5 - 5A 600V TD Class CC Fuse

Bussmann Fuses

In-Stock: 0 available locally (Nacogdoches, TX) (change location)

QTY:
  • Help Improve Our Data
    Quick Specs
    Catalog Number
    FNQR5
    Manufacturer
    Bussmann Fuses
    Manufacturer's Part Number
    FNQ-R-5
    Description
    5A 600V TD Class CC Fuse
    5A 600V Class CC CC-Tron Time Delay Fuse
    Slang Terms

    Suggest a New Term
    Categories
    Fuses & Fuse Accessories - Small Dimension Fuses  Mark as Incorrect
    Suggest a New Category
    Classification
    Midget Fuses
    UNSPSC
    39121606 - Cartridge fuses
    UPC/GTIN
    051712147101 / 00051712147101
    Weight per unit
    0.02 (lbs/each)
    Price & Packaging
    Minimum Order Quantity
    1 Unit
    Unit
    $23.50 (each)
    Carton
    $23.50 (1 units)
    Standard Packaging
    $235.00 (10 units)
    Stock Availability
    Nacogdoches
    0
    All Stores
    101
    Resources
    Images

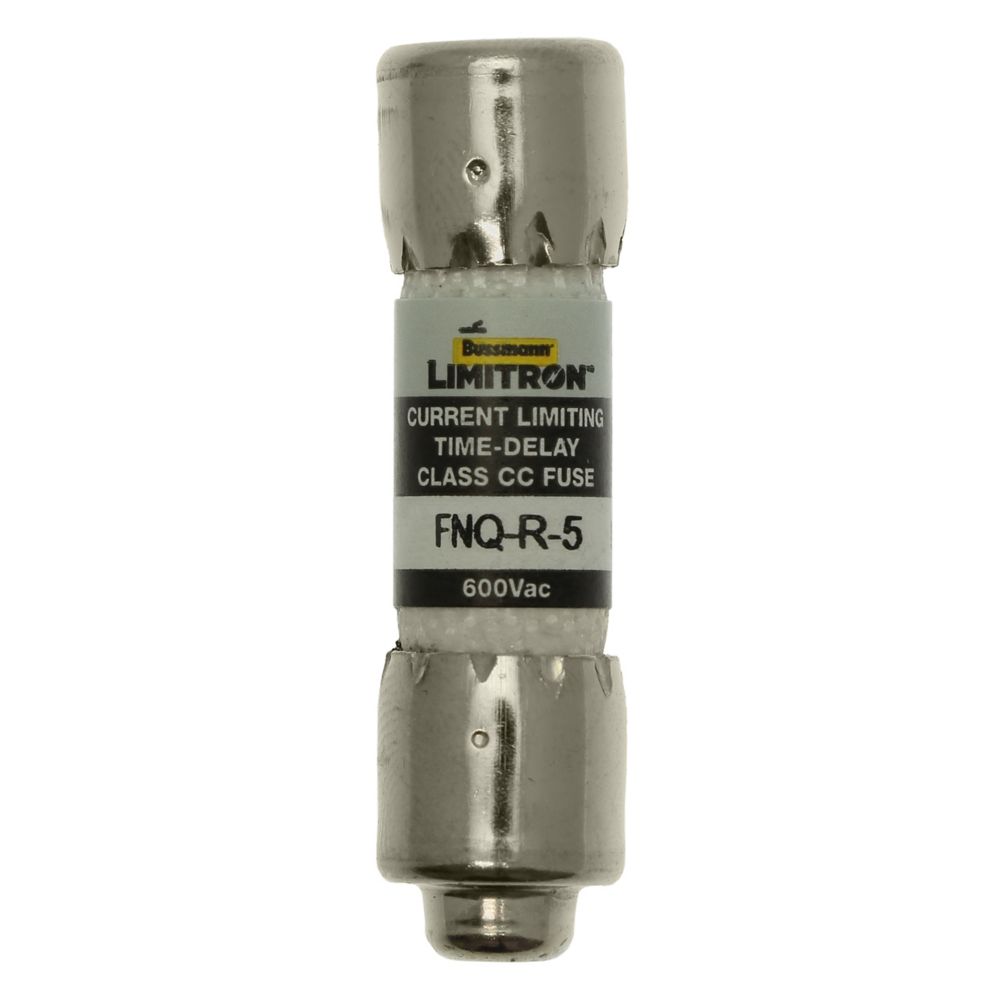

    FNQR5 - Large Image

    FNQR5 - Small Image

    FNQR5 - Large Image
    Specifications Sheets


    FNQR5 - Specification Sheet


    Suggest Substitute Item
    Help Improve Our Data
  • Help Improve Our Data
    Additional Information
    amperage rating
    5
    Application
    Line Protection, Small Control Transformers, Industrial Control, Isolated, In-Line Fuse Holders
    Brand
    Bussmann Fuses
    Category Description
    MIDGET FUSES
    class
    CC
    connection
    Ferrule End X Ferrule End
    Description
    5A 600V TD CLASS CC FUSE
    Documents
    Yes
    interrupt rating
    200000 Amp (RMS Symmetrical UL)
    Long Description
    5A 600V Class CC CC-Tron Time Delay Fuse
    Manufacturers Part Number
    FNQ-R-5
    Material
    Melamine Tube
    Yes
    Product Type
    Class CC Time Delay
    Response Time
    12 S at 200%
    Size
    13/32 In Diameter X 1-1/2 In Length
    special features
    Rejection Style, Nickel Plated Brass Endcap
    standard
    UL 248-4, CSA, CE
    sub brand
    CC-Tron
    Type
    Current Limiting, High Inrush Time Delay
    Voltage Rating
    600
