SER4446CU1000 - COP

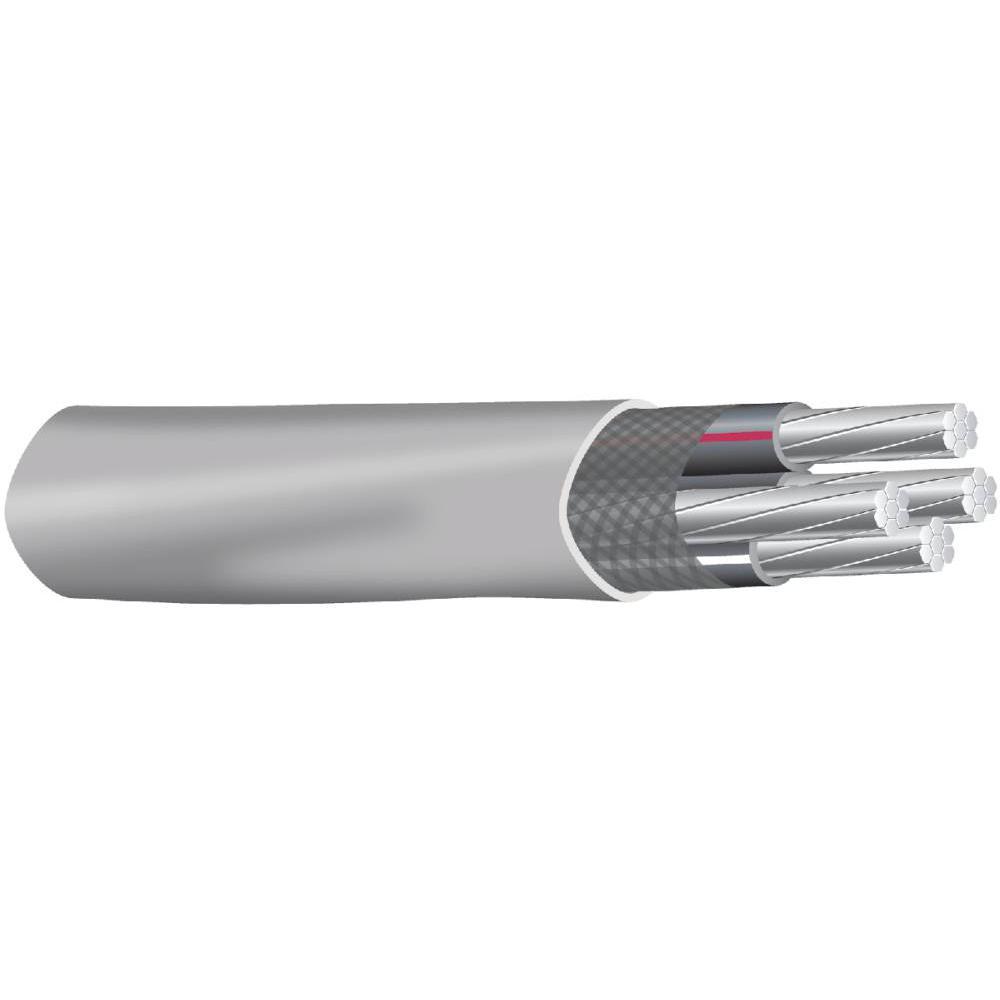

SER4446CU1000 - 4-4-4-6 Ser Copper Cable-1000'

Copper

  • $7.29 (Per Foot)
  • $7.29 (Per Foot)
  • $7,294.70 (Per 1,000 Feet)

Availablity: In Stock

QTY:
Feet
  • Help Improve Our Data
    Quick Specs
    Catalog Number
    SER4446CU1000
    Manufacturer
    Copper
    Manufacturer's Part Number
    26348301
    Description
    4-4-4-6 Ser Copper Cable-1000'
    Service Entrance Cable Style Ser Service Entrance Cable, 600 Volt. Individual Conductors Rated XHHW-2. Jacket and Individual Conductors Sunlight Resistant.
    Slang Terms

    Suggest a New Term
    Similar Brands

    Categories
    Service Entrance Cable - Ser  Mark as Incorrect
    Suggest a New Category
    Classification
    Service Entrance - Seu & Ser
    UNSPSC
    26121517 - Copper wire
    UPC/GTIN
    032886271113 / 00032886271113
    Weight per unit
    0.587 (lbs/ft)
    Price & Packaging
    Minimum Order Quantity
    Foot
    Unit
    $7.29 (Per Foot)
    Reel
    $7,294.70 (Per 1,000 Feet)
    Resources
    Images


    SER4446CU1000 - Small Image

    SER4446CU1000 - Large Image

    SER4446CU1000 - Large Image
    Specifications Sheets


    SER4446CU1000 - Specification Sheet
    Attachments


    SER4446CU1000 - Specification Sheet

    SER4446CU1000 - Specification Sheet
    Other Links


    SER4446CU1000 - Other

    SER4446CU1000 - Other


    Suggest Substitute Item
    Help Improve Our Data
  • Help Improve Our Data
    Features
    Current Rating
    70 A (60°C);85 A (75°C);95 A (90°C)
    Number of Conductors
    3
    Conductor Size
    #4-#4-#4-#6 AWG
    Voltage Rating
    600 V
    Material, Color, and Finish
    Jacket Material
    PVC
    Conductor Material
    Copper
    Color
    Gray
    Dimensions and Weight
    Overall Length
    1000 ft
    Length
    1,000
    Descriptions
    Product Type
    Service Entrance Cable
    Description
    4-4-4-6 SER COPPER CABLE-1000'
    Features
    Cable shall be UL-listed Type SE, Style U, suitable for operation at 600 volts or less in all installations as specified in the National Electrical Code. Conductors shall be annealed copper, Type XHHW-2 or Type THHN/THWN, weather resistant PVC jacketed, as manufactured by Southwire Company or approved equal.
    Short Description
    Service Entrance Cable, 95 A, 600 V, 7 Strands, 852 mil
    Additional Information
    Sunlight Resistant
    Long Description
    Service Entrance Cable Style SER Service Entrance Cable, 600 Volt. Individual Conductors Rated XHHW-2. Jacket and Individual Conductors Sunlight Resistant.
    Additional Information
    Number of Strands
    7 (Phase Conductor & Neutral);7 (Equipment Ground Conductor)
    outside diameter
    852 mil
    Maximum Operating Temperature
    +90 °C
    Standards Met
    UL 44;UL 83;UL 854;ASTM;Federal Specification A-A-59544;NFPA 70. 2011;RoHS Compliant;REACH Compliant
    Made in USA
    yes
    Manufacturer Information
    Brand
    Copper
    Manufacturers Part Number
    26348301
    GTIN
    00032886271113
    UPC
    032886271113
    Taxonomies, Classifications, and Categories
    Category Description
    SERVICE ENTRANCE - SEU & SER
    Type
    SER
    Packaging
    Package Type
    Reel
    Weight
    586 lb/mft
    Weight per foot
    0.587
    Carton
    1000
    Uses, Certifications, and Standards
    Application
    Distribution Panelboard;Wet/Dry Locations
