THHN12S0L0R2500 - COP

Also in stock

THHN12S0L0R500 - THHN 12 Sol Orange 500 - Southwire Company
$110.70(1,000 FT)

Southwire Company
THHN 12 Sol Orange 500


View or Compare

THHN12S0L0R2500 - THHN 12 Sol Orange 2500

Southwire

In-Stock: 0 available locally (Nacogdoches, TX) (change location)

QTY:
  • Help Improve Our Data
    Quick Specs
    Catalog Number
    THHN12S0L0R2500
    Manufacturer
    Southwire
    Manufacturer's Part Number
    11593105
    Description
    THHN 12 Sol Orange 2500
    Copper Building Wire/Appliance Wire, THHN, THWN, Awm; 600 V Voltage Rating; 20 Ampere Current Rating; Conductor Material Annealed Copper; 12 Awg Conductor; Solid; Nylon Jacket; PVC Insulation Material; Orange Insulation; Outer Diameter 119 Mil
    Slang Terms

    Suggest a New Term
    Categories
    Copper Building Wire - THHN-T90-Sol (Solid)  Mark as Incorrect
    Suggest a New Category
    Classification
    THHN12 & THHN14 STR & Sol
    UNSPSC
    26121614 - Building cable
    UPC/GTIN
    032886224478 / 00032886224478
    Weight per unit
    0.023 (lbs/ft)
    Price & Packaging
    Minimum Order Quantity
    2,500
    Unit
    $0.11 (foot)
    Reel
    $276.75 (2500 ft)
    Stock Availability
    Nacogdoches
    0
    All Stores
    102,500
    Resources
    Images

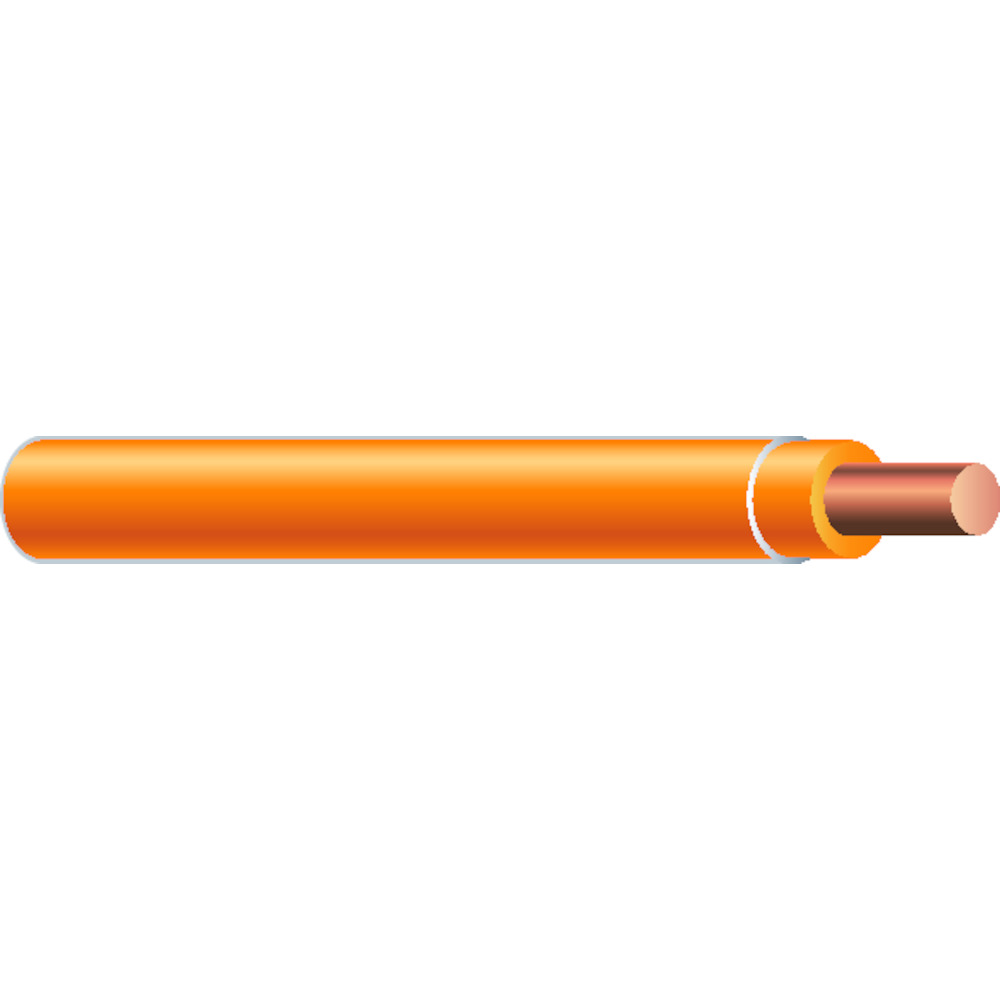

    THHN12S0L0R2500 - Large Image

    THHN12S0L0R2500 - Small Image

    THHN12S0L0R2500 - Small Image

    Large Image - Large Image

    Small Image - Small Image
    Specifications Sheets


    THHN12S0L0R2500 - Specification Sheet


    Suggest Substitute Item
    Help Improve Our Data
  • Help Improve Our Data
    Additional Information
    Approval
    UL 83, UL 1063, UL 1581, UL (CANADA AND US), CSA
    Brand
    Copper
    Category Description
    THHN12 & THHN14 STR & SOL
    Commodity Description
    COPPER BUILDING WIRE-THHN-T90-SOL
    Conductor Size
    12 AWG
    Current Rating
    20 AMPERE
    Description
    THHN 12 SOL ORANGE 2500
    Documents
    Yes
    Insulation Color
    ORANGE
    Insulation Material
    PVC
    Jacket Material
    NYLON
    Length
    2500 FT
    Length in ft
    2500
    Long Description
    COPPER BUILDING WIRE/APPLIANCE WIRE, THHN, THWN, AWM; 600 V VOLTAGE RATING; 20 AMPERE CURRENT RATING; CONDUCTOR MATERIAL ANNEALED COPPER; 12 AWG CONDUCTOR; SOLID; NYLON JACKET; PVC INSULATION MATERIAL; ORANGE INSULATION; OUTER DIAMETER 119 MIL
    Manufacturers Part Number
    11593105
    Outer Diameter
    119 MIL
    Package Type
    SPOOL
    Yes
    Product Type
    Cable
    Stranding
    SOLID
    Temperature Rating
    90 DEG C
    Type
    THHN, THWN, AWM
    Voltage Rating
    600 V
    Weight
    23 LB/MFT
