THHN12ST0R500 - COP

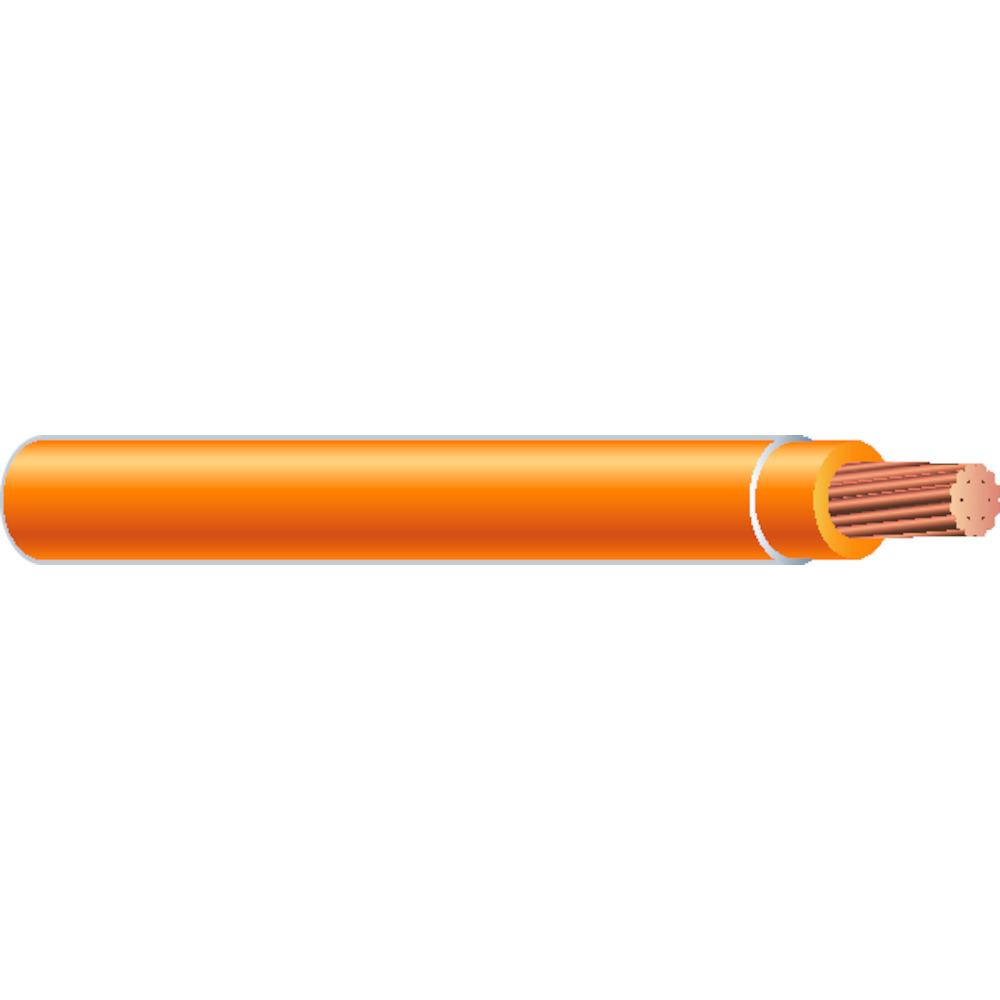

THHN12ST0R500 - THHN 12 STR Orange 500'

Copper

  • $62.54 (Per 500 Feet)
  • $0.13 (Per Foot)
  • $62.54 (Per 500 Feet)
  • $125.08 (Per 1,000 Feet)
  • $250.16 (Per 2,000 Feet)

In-Stock: 0 available locally (Nacogdoches, TX) (change location)

QTY:
Feet
  • Help Improve Our Data
    Quick Specs
    Catalog Number
    THHN12ST0R500
    Manufacturer
    Copper
    Manufacturer's Part Number
    22970801
    Description
    THHN 12 STR Orange 500'
    Copper Building Wire, THHN, THWN, MTW, Awm; 600 V Voltage Rating; 20 Ampere Current Rating; Conductor Material Annealed Copper; 12 Awg Conductor; 19 Strands; Nylon Jacket; PVC Insulation Material; Orange Insulation; Outer Diameter 128 Mil
    Slang Terms

    Suggest a New Term
    Similar Brands

    Categories
    Copper Building Wire - THHN-T90-STR (Stranded)  Mark as Incorrect
    Suggest a New Category
    Classification
    Building Wire
    UNSPSC
    26121614 - Building cable
    UPC/GTIN
    032886229459 / 00032886229459
    Weight per unit
    0.024 (lbs/ft)
    Price & Packaging
    Minimum Order Quantity
    500 Feet
    Unit
    $0.13 (Per Foot)
    Reel
    $62.54 (Per 500 Feet)
    Standard Packaging
    $250.16 (Per 2,000 Feet)
    Stock Availability
    Nacogdoches
    0 Feet (Find nearest stock)
    All Stores
    575,000 Feet
    Resources
    Images


    Large Image - Large Image

    THHN12ST0R500 - Large Image

    Small Image - Small Image

    THHN12ST0R500 - Small Image

    THHN12ST0R500 - Large Image
    Specifications Sheets


    THHN12ST0R500 - Specification Sheet
    Attachments


    THHN12ST0R500 - Specification Sheet


    Suggest Substitute Item
    Help Improve Our Data
  • Help Improve Our Data
    Features
    Current Rating
    20 A
    20 AMPERE
    Conductor Size
    #12 AWG
    12 AWG
    Voltage Rating
    600 V
    Stranding
    19 STRANDS
    Material, Color, and Finish
    Jacket Material
    Nylon
    NYLON
    Conductor Material
    Annealed Copper
    ANNEALED COPPER
    Color
    Orange
    Insulation Material
    PVC
    Insulation Color
    Orange
    Dimensions and Weight
    Overall Length
    500 ft
    Outer Diameter
    128 MIL
    Length
    500 FT
    Length in ft
    500 W
    Descriptions
    Product Type
    Cable
    THHN Building Wire
    Features
    Southwire(R) SIMpull THHN(R) copper conductors are made with soft drawn copper. Sizes 14 through 4/0 AWG use a combination-unilay stranding while 250 kcmil and larger sizes use a compressed copper stranding. The wire is covered with a tough heat and moisture resistant PVC insulation with an overall nylon jacket utilizing SIMpull(R) Technology. Available in black, white, red, blue, purple, green, yellow, orange, brown, and gray. Also available in striped configurations. Some colors are subject to economic o
    Short Description
    THHN Building Wire, 12 AWG, Stranded, Annealed Copper, Yellow, 500
    Additional Information
    Heat, Moisture, Gasoline and Oil Resistant;SIMpull(R) Technology for Easier Pulling;Sunlight Resistant
    Description
    THHN 12 STR ORANGE 500'
    Long Description
    COPPER BUILDING WIRE, THHN, THWN, MTW, AWM; 600 V VOLTAGE RATING; 20 AMPERE CURRENT RATING; CONDUCTOR MATERIAL ANNEALED COPPER; 12 AWG CONDUCTOR; 19 STRANDS; NYLON JACKET; PVC INSULATION MATERIAL; ORANGE INSULATION; OUTER DIAMETER 128 MIL
    THHN 12 STR CU OE 500SPC
    Commodity Description
    COPPER BUILDING WIRE-THHN-T90-STR
    Additional Information
    Number of Strands
    19
    outside diameter
    128 mil
    Insulation Thickness
    15 mil
    Maximum Operating Temperature
    90 °C
    Standards Met
    CSA Certified C22.2 No. 75;UL Standards 83, 758, 1063, and 1581;NOM-ANCE 90°C;Federal Specification A-A-59544;NEMA WC-70 (ICEA S-95-658) Construction Requirements;National Electrical Code, NFPA 70;MTW - Stranded Constructions Only;RoHS/REACH Compliant;ASTM - B3, B8, and B787;UL Listed;cULus Listed;VW-1 Sizes;AWM Sizes
    Made in USA
    Yes
    Manufacturer Information
    Brand
    SOUTHWIRE
    Copper
    SOUTHWIRE COMPANY
    Manufacturers Part Number
    22970801
    GTIN
    00032886229459
    UPC
    032886229459
    Taxonomies, Classifications, and Categories
    Category Description
    BUILDING WIRE
    Type
    THHN, THWN, MTW, AWM
    Availability
    minimum qty
    500
    Packaging
    Package Type
    Spool
    SPOOL
    Weight
    24 lb/mft
    24 LB/MFT
    Weight per foot
    0.024
    Carton
    500
    Package
    2000
    Uses, Certifications, and Standards
    Application
    Commercial;Industrial
    Temperature Rating
    90 DEG C
    Approval
    UL 83, UL 1063, UL 1581, UL (CANADA AND US), CSA
