THHN6YL500 - COP

Also in stock

THHN6YL1000 - THHN 6 STR Yellow 1000' - Copper
$488.25Per 1,000 Feet

Copper

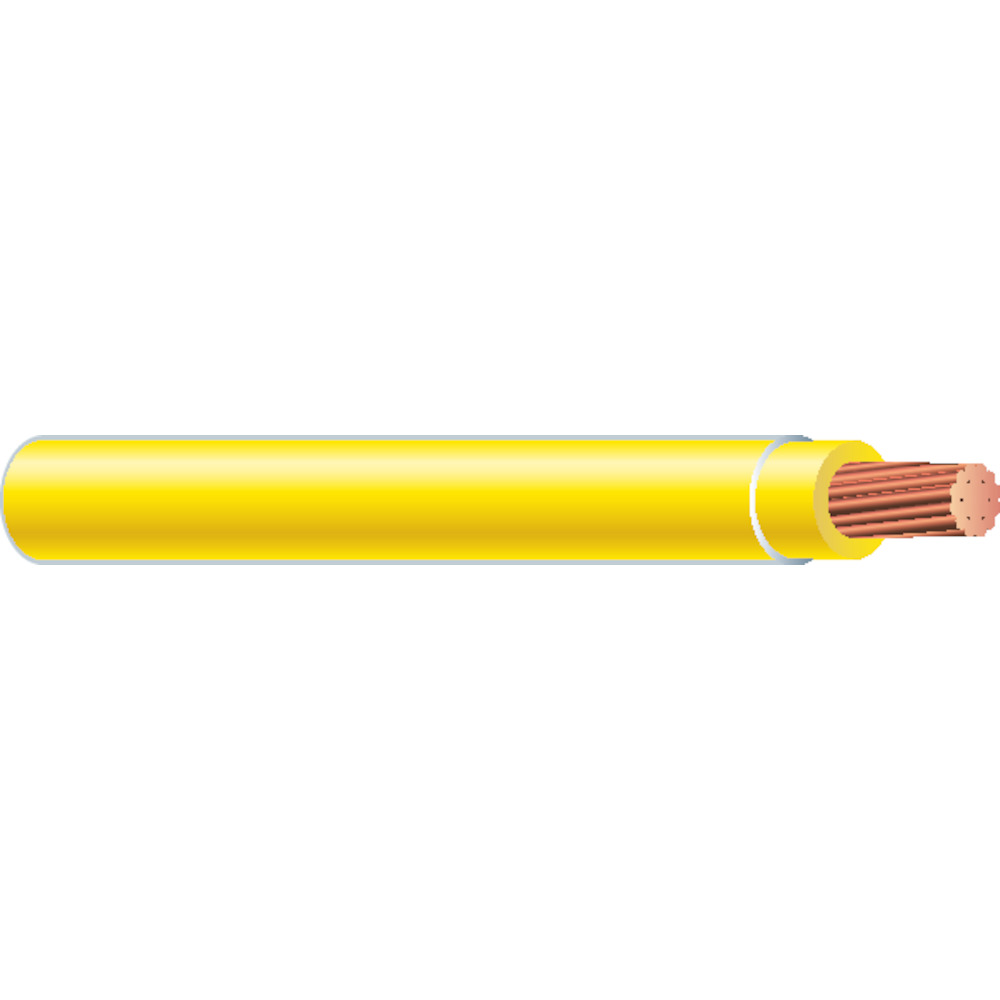

THHN 6 STR Yellow 1000'


View or Compare

THHN6YL500 - THHN 6 STR Yellow 500'

Copper

  • $0.49 (for 1 Foot)
  • $0.49 (1 Foot)
  • $244.12 (500 Feet)
  • $488.25 (1,000 Feet)

In-Stock: 0 available locally (Nacogdoches, TX) (change location)

QTY:
Feet
  • Help Improve Our Data
    Quick Specs
    Catalog Number
    THHN6YL500
    Manufacturer
    Copper
    Manufacturer's Part Number
    26068701
    Description
    THHN 6 STR Yellow 500'
    THHN Building Wire, 55 A (60°C);65 A (75°C);75 A (90°C), 600 V, 19 Strands, #6 Awg Conductor Size, Nylon Jacket Material, PVC Insulation Material, Annealed Copper Conductor Material, Yellow, 500 FT Overall Length, 249 Mil Outside Diameter, 30 Mil Insulation Thickness, 90 °C Operating Temperature, 95 LB/MFT
    Slang Terms

    Suggest a New Term
    Similar Brands

    Categories
    Copper Building Wire - THHN-T90-STR (Stranded)  Mark as Incorrect
    Suggest a New Category
    Classification
    Building Wire
    UNSPSC
    26121614 - Building cable
    UPC/GTIN
    032886231872 / 00032886231872
    Weight per unit
    0.095 (lbs/ft)
    Price & Packaging
    Minimum Order Quantity
    1 Foot
    Unit
    $0.49 (1 Foot)
    Reel
    $244.12 (500 Feet)
    Stock Availability
    Nacogdoches
    0 Feet (Find nearest stock)
    All Stores
    27,742 Feet
    Resources
    Images


    Large Image - Large Image

    THHN6YL500 - Large Image

    Small Image - Small Image

    THHN6YL500 - Small Image

    THHN6YL500 - Large Image

    THHN6YL500 - Large Image
    Specifications Sheets


    THHN6YL500 - Specification Sheet
    Attachments


    THHN6YL500 - Specification Sheet


    Suggest Substitute Item
    Help Improve Our Data
  • Help Improve Our Data
    Features
    Stranding
    19 STRANDS
    Current Rating
    55 AMPERE (60 DEG C), 65 AMPERE (75 DEG C), 75 AMPERE (90 DEG C)
    55 A (60°C);65 A (75°C);75 A (90°C)
    Conductor Size
    6 AWG
    #6 AWG
    Material
    SIMpull[R]
    Voltage Rating
    600 V
    Material, Color, and Finish
    Finish
    90 Deg C
    Insulation Color
    Yellow
    Jacket Material
    Nylon
    NYLON
    Conductor Material
    Annealed Copper
    ANNEALED COPPER
    Color
    Yellow
    Insulation Material
    PVC
    Dimensions and Weight
    Height
    0.3 Oz
    Outer Diameter
    249 MIL
    Length
    500 FT
    Length in ft
    500 W
    Width
    600 V
    Thickness
    MALE TERMINAL, (1) MALE (2) FEMALE CONFIGURATION; UL APPROVAL; 0.318 INCH L X 0.324 INCH W TAB SIZE; SELECTA. BRAND; STUD SIZE 0.25 INCH; STANDARD PACKAGE 65 PER BAG; ST MODEL
    Overall Length
    500 ft
    Descriptions
    Product Type
    Cable
    THHN Building Wire
    Additional Information
    78677604670
    Heat, Moisture, Gasoline and Oil Resistant;SIMpull(R) Technology for Easier Pulling
    Commodity Description
    COPPER BUILDING WIRE-THHN-T90-STR
    Long Description
    THHN Building Wire, 55 A (60°C);65 A (75°C);75 A (90°C), 600 V, 19 Strands, #6 AWG Conductor Size, Nylon Jacket Material, PVC Insulation Material, Annealed Copper Conductor Material, Yellow, 500 ft Overall Length, 249 mil Outside Diameter, 30 mil Insulation Thickness, 90 °C Operating Temperature, 95 lb/mft
    HIGH-BAY INDUSTRIAL FLUORESCENT FIXTURE, 11 INCH; 4-15/16 INCH; 48 INCH LAMP LENGTH; 48 INCH NOMINAL LENGTH; ELECTRONIC, PROGRAM RAPID START BALLAST TYPE; 4 LAMP(S); T5HO LAMP TYPE; UPLIGHT REFLECTOR TYPE; METALUX[R], F-BAY[TM], ULTRA47[R] BRAND
    Features
    Southwire(R) SIMpull THHN(R) copper conductors are made with soft drawn copper. Sizes 14 through 4/0 AWG use a combination-unilay stranding while 250 kcmil and larger sizes use a compressed copper stranding. The wire is covered with a tough heat and moisture resistant PVC insulation with an overall nylon jacket utilizing SIMpull(R) Technology. Available in black, white, red, blue, purple, green, yellow, orange, brown, and gray. Also available in striped configurations. Some colors are subject to economic o
    Short Description
    THHN Building Wire, 6 AWG, Stranded, Annealed Copper, Yellow, 500
    Description
    THHN 6 STR YELLOW 500'
    Additional Information
    Number of Channels
    500 Ft
    Process
    G4012TX
    Center Spacing
    Stainless steel
    Number of Strands
    19
    outside diameter
    249 mil
    Insulation Thickness
    30 mil
    Maximum Operating Temperature
    90 °C
    Standards Met
    CSA Certified C22.2 No. 75;UL Standards 83, 758, 1063, and 1581;NOM-ANCE 90°C;Federal Specification A-A-59544;NEMA WC-70 (ICEA S-95-658) Construction Requirements;National Electrical Code, NFPA 70;MTW - Stranded Constructions Only;RoHS/REACH Compliant;ASTM - B3, B8, and B787;AWM;UL Listed;cULus Listed
    Made in USA
    Yes
    Manufacturer Information
    Brand
    SOUTHWIRE
    V5748
    Copper
    Manufacturers Part Number
    26068701
    GTIN
    00032886231872
    UPC
    032886231872
    Taxonomies, Classifications, and Categories
    Type
    THHN, THWN-2, MTW, AWM
    Category Description
    BUILDING WIRE
    Packaging
    Package Type
    Spool
    SPOOL
    Weight
    95 lb/mft
    95 LB/MFT
    Weight per foot
    0.095
    Carton
    500
    Uses, Certifications, and Standards
    Temperature Rating
    90 DEG C
    Application
    FLB140 WT20 2
    Commercial;Industrial
    Approval
    UL 83, UL 1063, UL 1581, UL (CANADA AND US), CSA
