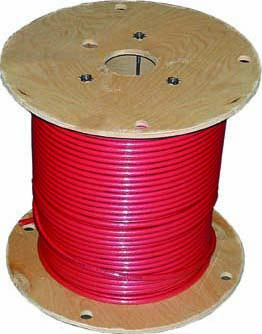

THHN8RD500 - COP

THHN8RD500 - THHN 8 STR Red 500

Copper

  • $0.28 (for 1 Foot)
  • $0.28 (1 Foot)
  • $140.61 (500 Feet)
  • $281.22 (1,000 Feet)

In-Stock: 1,000 available locally (Nacogdoches, TX) (change location)

QTY:
Feet
  • Help Improve Our Data
    Quick Specs
    Catalog Number
    THHN8RD500
    Manufacturer
    Copper
    Manufacturer's Part Number
    20490912
    Description
    THHN 8 STR Red 500
    THHN Building Wire, 40 A (60°C);50 A (75°C);55 A (90°C), 600 V, 19 Strands, #8 Awg Conductor Size, Nylon Jacket Material, PVC Insulation Material, Annealed Copper Conductor Material, Red, 500 FT Overall Length, 213 Mil Outside Diameter, 30 Mil Insulation Thickness, 90 °C Operating Temperature, 63 LB/MFT
    Slang Terms

    Suggest a New Term
    Similar Brands

    Categories
    Copper Building Wire - THHN-T90-STR (Stranded)  Mark as Incorrect
    Suggest a New Category
    Classification
    Building Wire
    UNSPSC
    26121614 - Building cable
    UPC/GTIN
    032886231209 / 00032886231209
    Weight per unit
    0.0625 (lbs/ft)
    Price & Packaging
    Minimum Order Quantity
    1 Foot
    Unit
    $0.28 (1 Foot)
    Reel
    $140.61 (500 Feet)
    Stock Availability
    Nacogdoches
    1,000 Feet (Check another store)
    All Stores
    103,726 Feet
    Resources
    Images


    Large Image - Large Image

    Small Image - Small Image

    THHN8RD500 - Large Image

    THHN8RD500 - Small Image
    Specifications Sheets


    THHN8RD500 - Specification Sheet


    Suggest Substitute Item
    Help Improve Our Data
  • Help Improve Our Data
    Features
    Current Rating
    40 A (60°C);50 A (75°C);55 A (90°C)
    40 AMPERE (60 DEG C), 50 AMPERE (75 DEG C), 55 AMPERE (90 DEG C)
    Conductor Size
    #8 AWG
    8 AWG
    Stranding
    19 STRANDS
    Voltage Rating
    600 V
    Material, Color, and Finish
    Jacket Material
    Nylon
    NYLON
    Conductor Material
    Annealed Copper
    ANNEALED COPPER
    Color
    Red
    Insulation Color
    Red
    Insulation Material
    PVC
    Dimensions and Weight
    Overall Length
    500 ft
    Outer Diameter
    213 MIL
    Length
    500 FT
    Length in ft
    500 W
    Descriptions
    Product Type
    Cable
    THHN Building Wire
    Description
    THHN 8 STR RED 500
    Long Description
    THHN Building Wire, 40 A (60°C);50 A (75°C);55 A (90°C), 600 V, 19 Strands, #8 AWG Conductor Size, Nylon Jacket Material, PVC Insulation Material, Annealed Copper Conductor Material, Red, 500 ft Overall Length, 213 mil Outside Diameter, 30 mil Insulation Thickness, 90 °C Operating Temperature, 63 lb/mft
    COPPER BUILDING WIRE/MACHINE TOOL WIRE/APPLIANCE WIRE, THHN, THWN-2, MTW, AWM; 600 V VOLTAGE RATING; 40 AMPERE (60 DEG C), 50 AMPERE (75 DEG C), 55 AMPERE (90 DEG C) CURRENT RATING; CONDUCTOR MATERIAL ANNEALED COPPER; 8 AWG CONDUCTOR; 19 STRANDS
    Features
    Southwire(R) SIMpull THHN(R) copper conductors are made with soft drawn copper. Sizes 14 through 4/0 AWG use a combination-unilay stranding while 250 kcmil and larger sizes use a compressed copper stranding. The wire is covered with a tough heat and moisture resistant PVC insulation with an overall nylon jacket utilizing SIMpull(R) Technology. Available in black, white, red, blue, purple, green, yellow, orange, brown, and gray. Also available in striped configurations. Some colors are subject to economic o
    Short Description
    THHN Building Wire, 8 AWG, Stranded, Annealed Copper, Yellow, 500
    Additional Information
    Heat, Moisture, Gasoline and Oil Resistant;SIMpull(R) Technology for Easier Pulling
    RoHS Compatible; Applicable Standard ASTM B3, ASTM B8, ASTM B787, Federal Specification A-A-59544, NFPA 70, NEMA WC-70
    Commodity Description
    COPPER BUILDING WIRE-THHN-T90-STR
    Additional Information
    Number of Strands
    19
    outside diameter
    213 mil
    Insulation Thickness
    30 mil
    Maximum Operating Temperature
    90 °C
    Made in USA
    Yes
    Standards Met
    CSA Certified C22.2 No. 75;UL Standards 83, 758, 1063, and 1581;NOM-ANCE 90°C;Federal Specification A-A-59544;NEMA WC-70 (ICEA S-95-658) Construction Requirements;National Electrical Code, NFPA 70;MTW - Stranded Constructions Only;RoHS/REACH Compliant;ASTM - B3, B8, and B787;AWM;VW-1;UL Listed;cULus Listed
    Manufacturer Information
    Brand
    SOUTHWIRE
    Copper
    SOUTHWIRE COMPANY
    Manufacturers Part Number
    20490912
    GTIN
    00032886231209
    UPC
    032886231209
    Taxonomies, Classifications, and Categories
    Category Description
    BUILDING WIRE
    Type
    THHN, THWN-2, MTW, AWM
    Packaging
    Package Type
    Spool
    SPOOL
    Weight
    63 lb/mft
    63 LB/MFT
    Weight per foot
    0.0625
    Carton
    500
    Uses, Certifications, and Standards
    Application
    Commercial;Industrial
    Approval
    UL 83/758/1063/1581, UL (Canada and US), CSA C22.2
    Temperature Rating
    90 DEG C
    Help Improve Our Data
