552020507 - COR

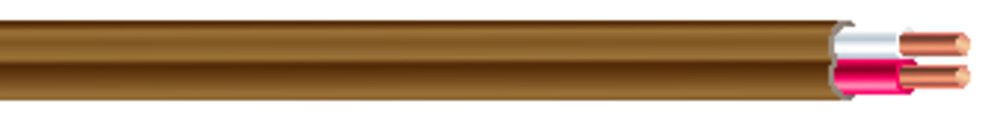

552020507 - 20/2 Thermostat Wire

Cables & Cords

  • $0.08 (Per Foot)
  • $0.08 (Per Foot)
  • $40.14 (Per 500 Feet)
  • $80.27 (Per 1,000 Feet)
  • $160.54 (Per 2,000 Feet)

In-Stock: 2,500 available locally (Nacogdoches, TX) (change location)

QTY:
Feet
  • Help Improve Our Data
    Quick Specs
    Catalog Number
    552020507
    Manufacturer
    Cables & Cords
    Manufacturer's Part Number
    69207901
    Description
    20/2 Thermostat Wire
    Thermostat Wire, CM/FT1; 20 Awg Conductor; 2 Conductor(S); Color Code Brown; Length 500 FT; Weight 9 LB/MFT; Approval Ul, Cul; Barostat[T] Brand
    Slang Terms

    Suggest a New Term
    Similar Brands

    Categories
    Thermostat Wire & Cable - Jacketed Thermostat Wire & CBL  Mark as Incorrect
    Suggest a New Category
    Classification
    Bell Wire
    UNSPSC
    26121500 - Electrical wire
    UPC/GTIN
    029892351854 / 00029892351854
    Weight per unit
    0.01 (lbs/ft)
    Price & Packaging
    Minimum Order Quantity
    Foot
    Unit
    $0.08 (Per Foot)
    Carton
    $40.14 (Per 500 Feet)
    Standard Packaging
    $160.54 (Per 2,000 Feet)
    Stock Availability
    Nacogdoches
    2,500 Feet (Check another store)
    All Stores
    549,999 Feet
    Resources
    Images


    552020507 - Large Image

    552020507 - Small Image

    552020507 - Large Image
    Specifications Sheets


    552020507 - Specification Sheet
    Attachments


    552020507 - Specification Sheet

    552020507 - Specification Sheet


    Suggest Substitute Item
    Help Improve Our Data
  • Help Improve Our Data
    Features
    Conductor Size
    #20 AWG
    20 AWG
    Voltage Rating
    150 V
    Number of Conductors
    2 A
    Stranding
    SOLID
    Material, Color, and Finish
    Conductor Material
    Copper
    BARE COPPER
    Insulation Material
    Polyethylene (XLPE)
    Polyethylene
    Color
    Red;White
    Finish
    9 Lb/MFt
    Jacket Color
    BROWN
    Jacket Material
    PVC
    Color Code
    Red, White
    Dimensions and Weight
    Overall Length
    500 ft
    Outer Diameter
    0.114 Inch
    Length
    500 FT
    Length in ft
    500 W
    Descriptions
    Product Type
    Thermostat Wire
    Long Description
    THERMOSTAT WIRE, CM/FT1; 20 AWG CONDUCTOR; 2 CONDUCTOR(S); COLOR CODE BROWN; LENGTH 500 FT; WEIGHT 9 LB/MFT; APPROVAL UL, CUL; BAROSTAT[T] BRAND
    Thermostat Wire, Solid, 2 Conductors, #20 AWG Conductor Size, 150 V, 500 ft Overall Length, 0.114 in Outside Diameter, 0.006 in Insulation Thickness, Copper Conductor Material, Polyethylene (XLPE) Insulation Material, Red;White, -20 °C Operating Temperature, +60 °C Operating Temperature, 9 lb/mft
    20/2 CL2 BAROSTAT 500R
    Description
    20/2 THERMOSTAT WIRE
    Short Description
    Thermostat Wire, Solid, 20 AWG, 2 Conductors, Copper Conductor
    Additional Information
    Fast and Easy Cable Access
    ROHS Compliant; Applicable Standard NEC 725; Insulation Thickness 0.006 Inch; Insulated Conductor Diameter 0.043 Inch; Jacket Thickness 0.014 Inch; Application Thermostats, Air-Conditioning Controls, Other Low Voltage Remote Control Circuits, Doorbells, A
    Commodity Description
    Misc Small Wires-Jacketed Thermostat Wire & Cable
    Additional Information
    outside diameter
    0.114 in
    Insulation Thickness
    0.006 in
    08526711385
    Cable Shape
    Round
    Minimum Operating Temperature
    -20 °C
    Maximum Operating Temperature
    +60 °C
    Solid/Strand
    Solid
    Standards Met
    UL 13;ETL Canada;ETL US;NEC 725
    Made in USA
    Yes
    Manufacturer Information
    Manufacturers Part Number
    552020507
    69207901
    Brand
    Cables & Cords
    SOUTHWIRE
    UL, ETL (Canada and US)
    Model
    ROHS Compliant; Applicable Standard NEC 725; Insulation Thickness 0.006 Inch; Insulated Conductor Diameter 0.043 Inch; Jacket Thickness 0.014 Inch; Application Thermostats, Air-Conditioning Controls, Other Low Voltage Remote Control Circuits, Doorbells, A
    GTIN
    00029892351854
    UPC
    029892351854
    Taxonomies, Classifications, and Categories
    Category Description
    BELL WIRE
    Type
    CM/FT1
    Packaging
    Package Type
    Reel
    REEL
    Weight
    9 lb/mft
    9 LB/MFT
    Weight per foot
    0.01
    Carton
    500
    Package
    2000
    Uses, Certifications, and Standards
    Application
    Thermostats;Air-Conditioning Controls;Other Low Voltage Remote Control Circuits;Doorbells
    Approval
    UL, ETL (Canada and US)
    Temperature Rating
    -20 TO 60 DEG C
