SJEW144BK250 - COR

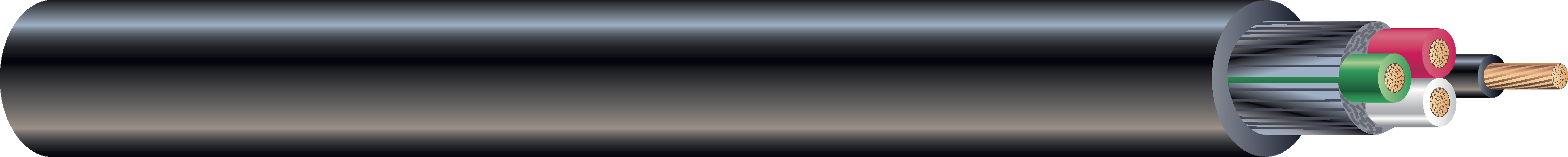

SJEW144BK250 - 14/4 Sjew 300V Black Cord 250' Box

Cables & Cords

  • $0.98 (Per Foot)
  • $0.98 (Per Foot)
  • $246.01 (Per 250 Feet)
  • $984.03 (Per 1,000 Feet)

In-Stock: 250 available locally (Nacogdoches, TX) (change location)

QTY:
Feet
  • Help Improve Our Data
    Quick Specs
    Catalog Number
    SJEW144BK250
    Manufacturer
    Cables & Cords
    Manufacturer's Part Number
    234870408
    Description
    14/4 Sjew 300V Black Cord 250' Box
    Portable Cord, Stranded, 41/30 MM Core Strands, #14 Awg Conductor Size, Copper Conductor Material, Thermoplastic Jacket Material, Thermoplastic Insulation Material, 300 V, Black, Green, Red and White, 4 Conductors, 250 FT Overall Length, 0.4 In Outside Diameter, 0.031 In Insulation Thickness, +90 °C (Ul) Operating Temperature, 0.107 LB/MFT
    Slang Terms

    Suggest a New Term
    Similar Brands

    Categories
    300V General Duty Cord & Cable - SJ-Sje  Mark as Incorrect
    Suggest a New Category
    Classification
    Portable Cords, Voice, Data, Video Wire & Cable
    UNSPSC
    26121603 - Control cable
    UPC/GTIN
    029892234874 / 00029892234874
    Weight per unit
    0.107 (lbs/ft)
    Price & Packaging
    Minimum Order Quantity
    Foot
    Unit
    $0.98 (Per Foot)
    Reel
    $246.01 (Per 250 Feet)
    Stock Availability
    Nacogdoches
    250 Feet (Check another store)
    All Stores
    20,862 Feet
    Resources
    Images


    SJEW144BK250 - Large Image

    SJEW144BK250 - Small Image

    SJEW144BK250 - Large Image
    Specifications Sheets


    SJEW144BK250 - Specification Sheet
    Attachments


    SJEW144BK250 - Specification Sheet

    SJEW144BK250 - Specification Sheet


    Suggest Substitute Item
    Help Improve Our Data
  • Help Improve Our Data
    Features
    Conductor Size
    #14 AWG
    Voltage Rating
    300 V
    Number of Conductors
    4
    Stranding
    41/30 STRANDS
    Material, Color, and Finish
    Conductor Material
    Copper
    Jacket Material
    Thermoplastic
    Insulation Material
    Thermoplastic
    Color
    Black;Green;Red;White
    Jacket Color
    BLACK
    Color Code
    BLACK, WHITE, RED, GREEN
    Dimensions and Weight
    Overall Length
    250 ft
    Outer Diameter
    0.4 INCH
    Length
    250 FT
    Descriptions
    Description
    14/4 SJEW 300V BLACK CORD 250' BOX
    Product Type
    Portable Cord
    Long Description
    Portable Cord, Stranded, 41/30 mm Core Strands, #14 AWG Conductor Size, Copper Conductor Material, Thermoplastic Jacket Material, Thermoplastic Insulation Material, 300 V, Black, Green, Red and White, 4 Conductors, 250 ft Overall Length, 0.4 in Outside Diameter, 0.031 in Insulation Thickness, +90 °C (UL) Operating Temperature, 0.107 lb/mft
    Short Description
    Portable Cord, Stranded, 41/30 Strands, 14 AWG, SJEOOW, Cut to Length
    Additional Information
    ROHS Compatible; Applicable Standard NEC 400, Federal Specification JC-580B; Insulation Thickness 0.031 Inch
    Commodity Description
    Sj-Sje-300v Cord & Cable
    Additional Information
    Solid/Strand
    Stranded
    Core Strands
    41/30 mm
    outside diameter
    0.4 in
    Insulation Thickness
    0.031 in
    Maximum Operating Temperature
    +90 °C (UL);+60 °C (CSA)
    for use with
    Industrial Control And Robotic System;Mining;Motor Control;Outdoor;Pushbutton Remote Control;Stage Equipment And Lighting
    Standards Met
    UL Listed;CSA Certified;MSHA;NEC 400;Federal Specification JC-580B
    Made in USA
    Yes
    Manufacturer Information
    Brand
    Cables & Cords
    Manufacturers Part Number
    234870408
    Model
    234
    GTIN
    00029892234874
    UPC
    029892234874
    Taxonomies, Classifications, and Categories
    Category Description
    Portable Cords, Voice, Data, Video Wire & Cable
    Type
    SJEW
    Packaging
    Package Type
    Reel
    Weight
    0.107 lb/mft
    Weight per foot
    0.107
    Carton
    250
    Uses, Certifications, and Standards
    Temperature Rating
    -50 to 90 Deg C
    Application
    Industrial Control, Motor Control, Mining, Portable Power Distribution, Pushbutton Remote Control, Robotic System, Stage Equipment, Lighting
    Approval
    UL 62, CSA C22.2, MSHA
    Help Improve Our Data
