- Quick Specs
-
- Catalog Number
- SJEW163BK250
- Manufacturer
- Cables & Cords
- Manufacturer's Part Number
- 55040303
- Description
-
16/3 Sjew 300V Black Cord 250' Reel
Portable Cord, Stranded, 26/30 MM Core Strands, #16 Awg Conductor Size, Copper Conductor Material, Thermoplastic Jacket Material, Thermoplastic Insulation Material, 300 V, Black, Green and White, 3 Conductors, 250 FT Overall Length, 0.335 In Outside Diameter, 0.031 In Insulation Thickness, +90 °C (Ul) Operating Temperature, 0.07 LB/MFT
- Slang Terms
-
Suggest a New Term
- Similar Brands
- Categories
-
300V General Duty Cord & Cable -
SJ-Sje
Mark as Incorrect
Suggest a New Category
- Classification
-
Portable Cords, Voice, Data, Video Wire & Cable
- UNSPSC
-
26121603 - Control cable
- UPC/GTIN
-
029892233860 / 00029892233860
- Weight per unit
-
0.08 (lbs/ft)
- Price & Packaging
-
- Minimum Order Quantity
- Foot
- Unit
-
$0.94 (Per Foot)
-
Reel
-
$234.86 (Per 250 Feet)
- Resources
-

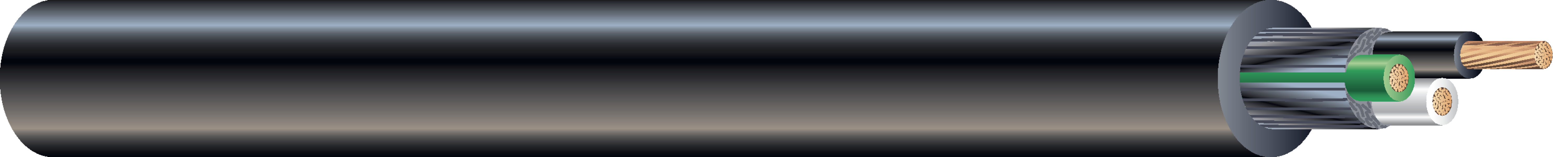

- Images
-
-
-
SJEW163BK250
- Small Image
-
-
SJEW163BK250
- Large Image
-
-
SJEW163BK250
- Large Image
- Specifications Sheets
-
-
-
SJEW163BK250
- Specification Sheet
- Attachments
-
-
-
SJEW163BK250
- Specification Sheet
-
-
SJEW163BK250
- Specification Sheet
Suggest Substitute Item
Help Improve Our Data
Edit Mode: Please login to suggest improvements for this item.
Close
-
-
Thank you for your suggestions!
We appreciate your assistance in improving our software. It helps us serve you even better!
Edit Mode: Please login to suggest improvements for this item.
Close
Help Improve Our Data
- Features
-
- Conductor Size
-
#16 AWG
- Voltage Rating
-
300 V
- Stranding
-
26/30 STRANDS
- Number of Conductors
-
3 in
- Material, Color, and Finish
-
- Conductor Material
-
Copper
- Jacket Material
-
Thermoplastic
- Insulation Material
-
Thermoplastic
- Color
-
Black;Green;White
- Jacket Color
-
BLACK
- Color Code
-
BLACK, WHITE, GREEN
- Dimensions and Weight
-
- Overall Length
-
250 ft
- Outer Diameter
-
0.328 Inch
- Length
-
250 ft
- Descriptions
-
- Description
-
16/3 SJEW 300V BLACK CORD 250' REEL
- Product Type
-
Portable Cord
- Long Description
-
Portable Cord, Stranded, 26/30 mm Core Strands, #16 AWG Conductor Size, Copper Conductor Material, Thermoplastic Jacket Material, Thermoplastic Insulation Material, 300 V, Black, Green and White, 3 Conductors, 250 ft Overall Length, 0.335 in Outside Diameter, 0.031 in Insulation Thickness, +90 °C (UL) Operating Temperature, 0.07 lb/mft
- Short Description
-
250 ft Portable Cord, Stranded, 26/30 Strands, 16 AWG SJEW
- extra long description
-
SJEW TYPE; 250 FT; 0.328 INCH OUTER DIAMETER; BARE COPPER CONDUCTOR MATERIAL; UL 62, CSA C22.2, MSHA APPROVAL; INDUSTRIAL CONTROL AND ROBOTIC SYSTEM, MOTOR CONTROL, OUTDOOR, PUSHBUTTON REMOTE CONTROL, STAGE EQUIPMENT AND LIGHTING APPLICATION; 300 V VOLTAGE RATING; -40 TO 90 DEG C TEMPERATURE RATING; 3 CONDUCTOR(S); T-PRENE THERMOPLASTIC ELASTOMER INSULATION MATERIAL; 16 AWG CONDUCTOR SIZE; BLACK, WHITE, GREEN COLOR CODE; CHEMICAL/OIL/WATER RESISTANT SEOPRENE THERMOPLASTIC ELASTOMER JACKET MATERIAL; REEL PA
- Additional Information
-
ROHS Compatible; Applicable Standard NEC 400, Federal Specification JC-580B; Current Rating 13 Ampere; Insulation Thickness 0.031 Inch
- Commodity Description
-
Sj-Sje-300v Cord & Cable
- Additional Information
-
- outside diameter
-
0.335 in
- Insulation Thickness
-
0.031 in
- Maximum Operating Temperature
-
+90 °C (UL);+60 °C (CSA)
- for use with
-
Industrial Control and Robotic System;Mining;Motor Control;Outdoor;Pushbutton Remote Control;Stage Equipment and Lighting
- Standards Met
-
UL Listed;CSA Certified;MSHA;NEC 400;Federal Specification JC-580B
- Made in USA
-
yes
- Solid/Strand
-
Stranded
- Core Strands
-
26/30 mm
- Manufacturer Information
-
- Brand
-
Cables & Cords
- Manufacturers Part Number
-
55040303
- Model
-
233
- GTIN
-
00029892233860
- UPC
-
029892233860
- Taxonomies, Classifications, and Categories
-
- Category Description
-
Portable Cords, Voice, Data, Video Wire & Cable
- Type
-
SJEW
- Packaging
-
- Package Type
-
Reel
- Weight
-
0.07 lb/mft
- Weight per foot
-
0.08
- Carton
-
250
- Uses, Certifications, and Standards
-
- Temperature Rating
-
-40 TO 90 DEG C
- Application
-
Industrial Control and Robotic System, Motor Control, Outdoor, Pushbutton Remote Control, Stage Equipment and Lighting
- Approval
-
UL 62, CSA C22.2, MSHA
