1107W - EWD

1107W - Recp Deco Duplex 15A 125V 2P3W WH

Eaton

  • $2.25 (for 1 Each)
  • $2.25 (1 Each)
  • $22.50 (10 Each)
  • $225.00 (100 Each)

In-Stock: 0 available locally (Nacogdoches, TX) (change location)

QTY:
Each
  • Help Improve Our Data
    Quick Specs
    Catalog Number
    1107W
    Manufacturer
    Eaton
    Manufacturer's Part Number
    1107W-BOX
    Description
    Recp Deco Duplex 15A 125V 2P3W WH
    Duplex Receptacle, 15 A, 125 V, 2 Poles, 3 Wires, #14 to #10 Awg Compatible Wire Size, Screw Connection, Flush Mount, 1.30 In Length, 4.20 In Width, Thermoplastic, White, Impact Resistant, 0.1500 LB
    Slang Terms

    Suggest a New Term
    Similar Brands

    Categories
    Gen Purpose Wiring Devices - Gen Purpose Recept & Surge Pro  Mark as Incorrect
    Suggest a New Category
    Classification
    Residential Recepticals
    UNSPSC
    39121406 - Electrical receptacles
    UPC/GTIN
    032664512483 / 00032664512483
    Weight per unit
    0.15 (lbs/each)
    Price & Packaging
    Minimum Order Quantity
    1 Each
    Unit
    $2.25 (1 Each)
    Carton
    $22.50 (10 Each)
    Standard Packaging
    $225.00 (100 Each)
    Stock Availability
    Nacogdoches
    0 Each (Find nearest stock)
    All Stores
    6,209 Each
    Resources
    Images

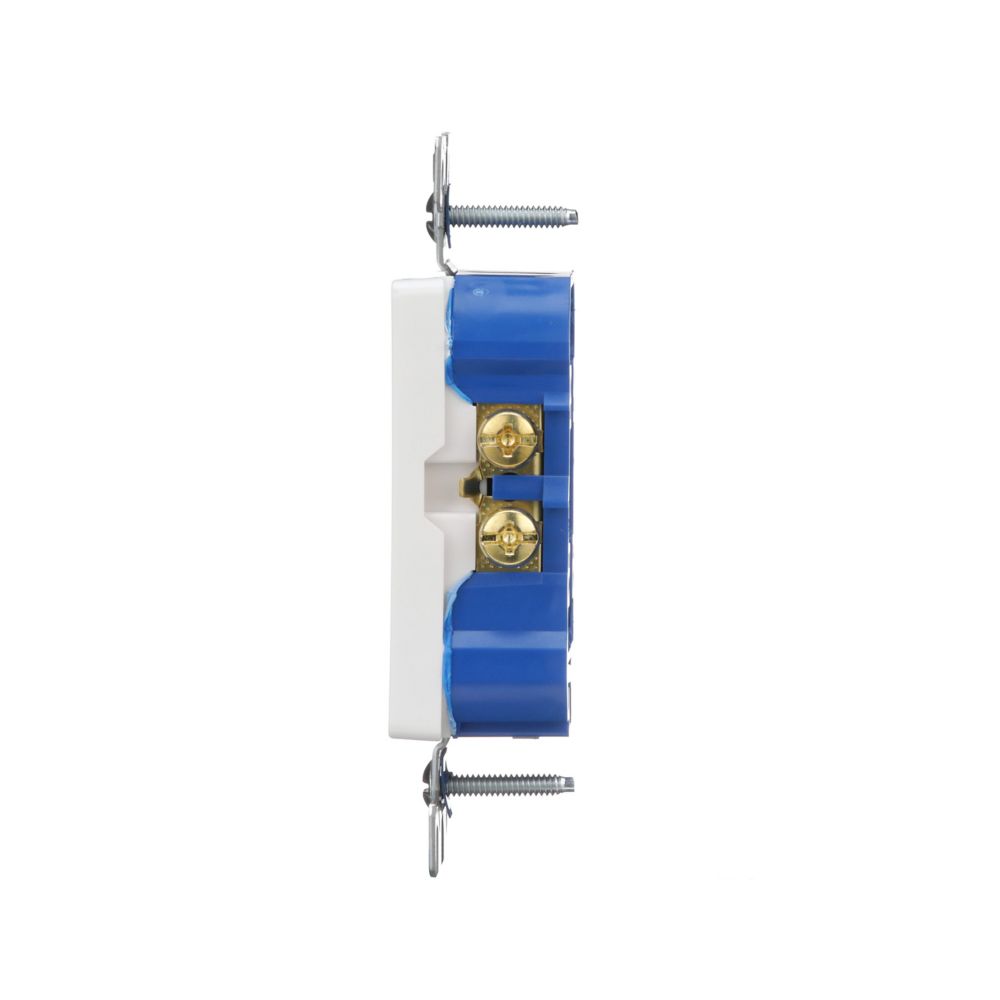

    1107W - Large Image

    1107W - Large Image

    1107W - Small Image

    1107W - Large Image
    Attachments


    1107W - Specification Sheet

    1107W - Specification Sheet

    1107W - Specification Sheet
    Brochures


    1107W - Brochure

    1107W - Brochure
    Other Links


    1107W - Other


    Suggest Substitute Item
    Help Improve Our Data
  • Help Improve Our Data
    Features
    Current Rating
    15 A
    Number of Wires
    3
    3 W W
    Material
    Thermoplastic
    THERMOPLASTIC
    insulation
    Impact Resistant Thermoplastic
    amperage rating
    15 W
    Poles
    2 W
    connection
    Screw
    Voltage Rating
    125 W
    Wire Size
    14 TO 10 AWG
    Material, Color, and Finish
    Color
    White
    WHITE GLOSS
    Dimensions and Weight
    Length
    1.30 in
    Width
    4.20 in
    Size
    8 X 4.25 X 1.93 IN
    Descriptions
    Product Type
    Recp Deco Duplex 15A 125V 2P3W WH
    Duplex Receptacle
    Description
    RECP DECO DUPLEX 15A 125V 2P3W WH
    Long Description
    Duplex Receptacle, 15 A, 125 V, 2 Poles, 3 Wires, #14 to #10 AWG Compatible Wire Size, Screw Connection, Flush Mount, 1.30 in Length, 4.20 in Width, ThermoPlastic, White, Impact Resistant, 0.1500 lb
    Features
    Decorator Receptacles feature longer, wider straps providing 40% more contact area to wall board. Virtually eliminates floating installations. Patented built-in wire stripper for #14 and #12 wire to speed installation. Patented built-in wire looper for pre-looping. Tri-combo screws accept slotted, Phillips, and Robertson-head tools for installation flexibility. Terminal screws backed out – ready for wiring. Side wire terminals accept up to #10 solid or stranded wire. Push-in terminals accept #14 solid wire
    Short Description
    15 A, 125 V, Duplex Receptacle, White, NEMA 5-15R, Res
    Special Features
    Standard Grade;Wiring Type Side Wire and Push Wire
    Standard Grade, Wiring Type Side Wire and Push Wire
    Additional Information
    Receptacle Type
    Duplex
    Compatible Wire Size
    #14 to #10 AWG
    Connection Type
    Screw
    Mounting Type
    Flush Mount
    Resistance Properties
    Impact Resistant
    package quantity
    10 CT;100 PK
    Standards Met
    UL Listed;cULus Listed to UL 498 File no. E150;UL Certified to CSA C22.2, no. 4;NOM/ANSI Certified;RoHS Complaint
    Made in USA
    Yes
    Dielectric Strength
    125 Vac
    Manufacturer Information
    Brand
    Eaton Wiring Devices
    COOPER WIRING DEVICES
    EATON
    Arrow Hart
    Manufacturers Part Number
    1107W
    1107W-BOX
    sub brand
    Eaton Wiring Devices
    GTIN
    00032664512483
    UPC
    032664512483
    Taxonomies, Classifications, and Categories
    Category Description
    Residential recepticals
    Type
    Residential
    Packaging
    Weight
    0.1500 lb
    Weight per each
    0.15
    Carton
    10
    Package
    100
    Uses, Certifications, and Standards
    Application
    Indoor
    STD GRD RECEPTS DECR
    nema rating
    5-15R
    environmental conditions
    Indoor
    Temperature Rating
    INDOOR
    standard
    UL mA
    Mounting
    FLUSH
