A20H20BLP - HOF

A20H20BLP - 20X20X8 N4 CH CLMP CVR

Nvent Hoffman

  • $784.00 (for 1 Each)
  • $784.00 (1 Each)

In-Stock: 0 available locally (Nacogdoches, TX) (change location)

QTY:
Each
  • Help Improve Our Data
    Quick Specs
    Catalog Number
    A20H20BLP
    Manufacturer
    Nvent Hoffman
    Manufacturer's Part Number
    A20H20BLP
    Description
    20X20X8 N4 CH CLMP CVR

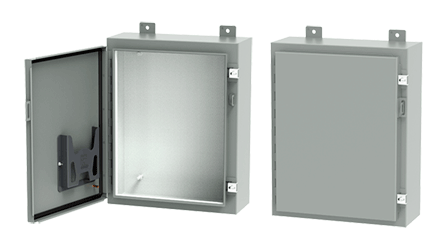

    Wall-Mount Enclosure, Steel, Type 4 Continuous Hinge, Wall Mount, Gray, Polyester Powder Paint, 20 In Overall Width, 20 In Overall Length, 8 In Overall Height, 32.5 LB
    Slang Terms

    Suggest a New Term
    Similar Brands

    Categories
    Metal Enclosures & Cabinets - Nema Types 4 & 12 Metallic Enc  Mark as Incorrect
    Suggest a New Category
    Classification
    Steel Junction Boxes
    UNSPSC
    39121324 - Electrical general purpose enclosure
    UPC/GTIN
    783510244309 / 00783510244309
    Weight per unit
    32.5 (lbs/each)
    Price & Packaging
    Minimum Order Quantity
    1 Each
    Unit
    $784.00 (1 Each)
    Stock Availability
    Nacogdoches
    0 Each (Find nearest stock)
    All Stores
    16 Each
    Resources
    Installation Sheets


    A20H20BLP - Installation Sheet
    Attachments


    A20H20BLP - Specification Sheet

    A20H20BLP - Specification Sheet
    Images


    A20H20BLP - Large Image

    A20H20BLP - Small Image

    A20H20BLP - Large Image
    Other Links


    A20H20BLP - Other

    A20H20BLP - Other

    A20H20BLP - Other
    Specifications Sheets


    A20H20BLP - Specification Sheet


    Suggest Substitute Item
    Help Improve Our Data
  • Help Improve Our Data
    Features
    Material
    Steel
    Steel IN
    Cover Type
    Type 4 Continuous Hinge
    Material, Color, and Finish
    Color
    Gray 0
    Dimensions and Weight
    Overall Length
    20 in;508 mm
    Size
    20.00x20.00x8.00 in
    Descriptions
    Product Type
    Type 4 Encl. 20.00X20.00X8.00
    Wall-Mount Enclosure
    Description
    20X20X8 N4 CH CLMP CVR
    Long Description
    Wall-Mount Enclosure, Steel, Type 4 Continuous Hinge, Wall Mount, Gray, Polyester Powder Paint, 20 in Overall Width, 20 in Overall Length, 8 in Overall Height, 32.5 lb
    Short Description
    30X30X8 Wall-Mount Enclosure, Steel, Gray
    Special Features
    Seams Continuously Welded and Ground Smooth;Corner-Formed Doors;Simple Easy-to-Remove and Install Hinge Pins with Captivation Clip;High-Torque Threadless Studs and Fasteners on Door;Minimum-Width Body Flange Provides Maximum Door;A Continuous Hinge Combined with Stainless Steel Clamps on Three Sides Provide Environmental Protection and Security in Indoor or Outdoor Applications.
    16 or 14 gauge steel, Seams continuously welded and ground smooth, External welded-on mounting brackets for easy installation, Formed external flanges around all sides of enclosure opening, Stainless steel screw-down clamps on three sides of door, Removable heavy gauge stainless steel continuous hinge pin, Removable door with continuous hinge for strength and ruggedness, Hasp and staple for padlocking, Data pocket is high-impact thermoplastic, Collar studs for mounting optional panels, Bonding provision on
    Additional Information
    Enclosure Type
    NEMA 3;NEMA 4;NEMA 12;NEMA 13
    Mounting Type
    Wall Mount
    Finish/Coating
    Polyester Powder Paint
    ip rating
    IP66
    Overall Width
    20 in;508 mm
    Overall Height
    8 in;203 mm
    Standards Met
    UL 508A Listed Type 4, 12, 13 File No. E61997;cUL Listed per CSA C22.2 No. 94 Type 4, 12, 13 File No. E61997;RoHS Compliant
    Made in USA
    Yes
    Manufacturer Information
    Brand
    Hoffman Enclosures, Inc.
    Nvent Hoffman
    J-Series
    Manufacturers Part Number
    A20H20BLP
    sub brand
    Hoffman
    GTIN
    00783510244309
    UPC
    783510244309
    Taxonomies, Classifications, and Categories
    Category Description
    STEEL JUNCTION BOXES
    Type
    Continuous Hinge with Clamps, Type 4
    Packaging
    Weight
    32.5 lb
    Weight per each
    32.5
    Carton
    1
    Uses, Certifications, and Standards
    Application
    Indoor or Outdoor
    These single-door enclosures feature a hinged door with clamps on three sides to create a secure seal in indoor or outdoor environments. The gray polyester powder finish inside and out provides enhanced corrosion protection in outdoor applications.,
    standard
    UL 508A Listed, Type 4, 12, 13, File No. E61997, cUL Listed per CSA C22.2 No. 94, Type 4, 12, 13, File No. E61997, NEMA/EEMAC Type 3, 4, 12, and 13, CSA, File No. 42186: Type 4 and 12, IEC 60529, IP66
