- Features
-
- Material
-
Steel
-
Steel IN
- Cover Type
-
Type 12 Continuous Hinge
- Material, Color, and Finish
-
- Color
-
Gray 0
- Dimensions and Weight
-
- Overall Length
-
6 in;152 mm
- Size
-
6.00x6.00x4.00 in
- Descriptions
-
- Product Type
-
CH Box 6.00X6.00X4.00
-
Junction Box
- Description
-
6X6X4 N12 CH CLMP CVR
- Long Description
-

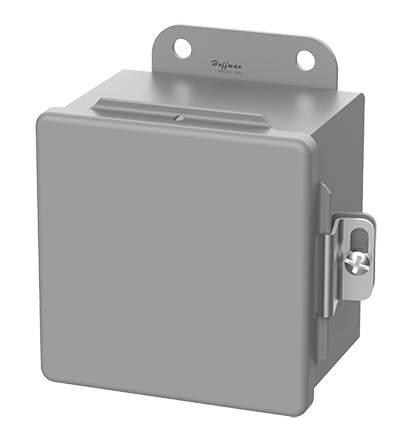

Junction Box, Steel, Type 12 Continuous Hinge, Bracket Mount, Gray, Polyester Powder Paint, 6 in Overall Width, 6 in Overall Length, 4 in Overall Height, 32 lb
- Short Description
-
8X8X4 N12 Junction Box, Steel, Gray
- Special Features
-
Continuously Welded and Ground Smooth Continuous Hinge;Screw-Down Door Clamps;Bonding Provision on Door;External Welded-On Mounting Brackets for Easy Installation;Oil-Resistant Gasket;Weldnuts Provided for Mounting Option
-
16 or 14 gauge steel, Seams continuously welded and ground smooth, Continuous hinge, Screw-down door clamps, Bonding provision on door, External welded-on mounting brackets for easy installation, Oil-resistant gasket, Weldnuts provided for mounting optional panels and terminal block kits in size 6.00 x 4.00 in. (152 x 102 mm) and larger
- Additional Information
-
- Enclosure Type
-
NEMA 12/13
- Mounting Type
-
Bracket Mount
- Finish/Coating
-
Polyester Powder Paint
- ip rating
-
IP65
- Overall Width
-
6 in;152 mm
- Overall Height
-
4 in;102 mm
- Standards Met
-
UL 50, 50E Listed, TYPE 12, 13, FILE NO. E27567;cUL Listed per CSA 22.2 NO. 94, Type 12, 13, FILE NO. E27567;UL 508A Listed, Type 12, 13, FILE NO. E61997;cUL Listed per CSA 22.2 NO. 94, Type 12, 13, FILE NO. E61997
- Made in USA
-
Yes
- Manufacturer Information
-
- Brand
-
Hoffman Enclosures, Inc.
-
Nvent Hoffman
-
J-Series
- Manufacturers Part Number
-
A606CH
- sub brand
-
Hoffman
- GTIN
-
00783510553906
- UPC
-
783510553906
- Taxonomies, Classifications, and Categories
-
- Category Description
-
STEEL JUNCTION BOXES
- Type
-
Continuous Hinge with Clamps, Type 12
- Packaging
-
- Weight
-
32 lb
- Weight per each
-
32
- Carton
-
1
- Uses, Certifications, and Standards
-
- Application
-
This Easy-To-Open Continuous Hinge Enclosure Features Screw-Down Clamps for Secure Closure
-
This easy-to-open, continuous hinge enclosure features screw-down clamps for secure closure and can be used in a wide variety of applications.
- standard
-
UL 50, 50E Listed, Type 12, 13, File No. E27567, cUL Listed per CSA 22.2 No. 94, Type 12, 13, File No. E27567, UL 508A Listed, Type 12, 13, File No. E61997, cUL Listed per CSA 22.2 No. 94, Type 12, 13, File No. E61997, NEMA/EEMAC Type 12 and 13, CSA, File
