SLU70 - ILS

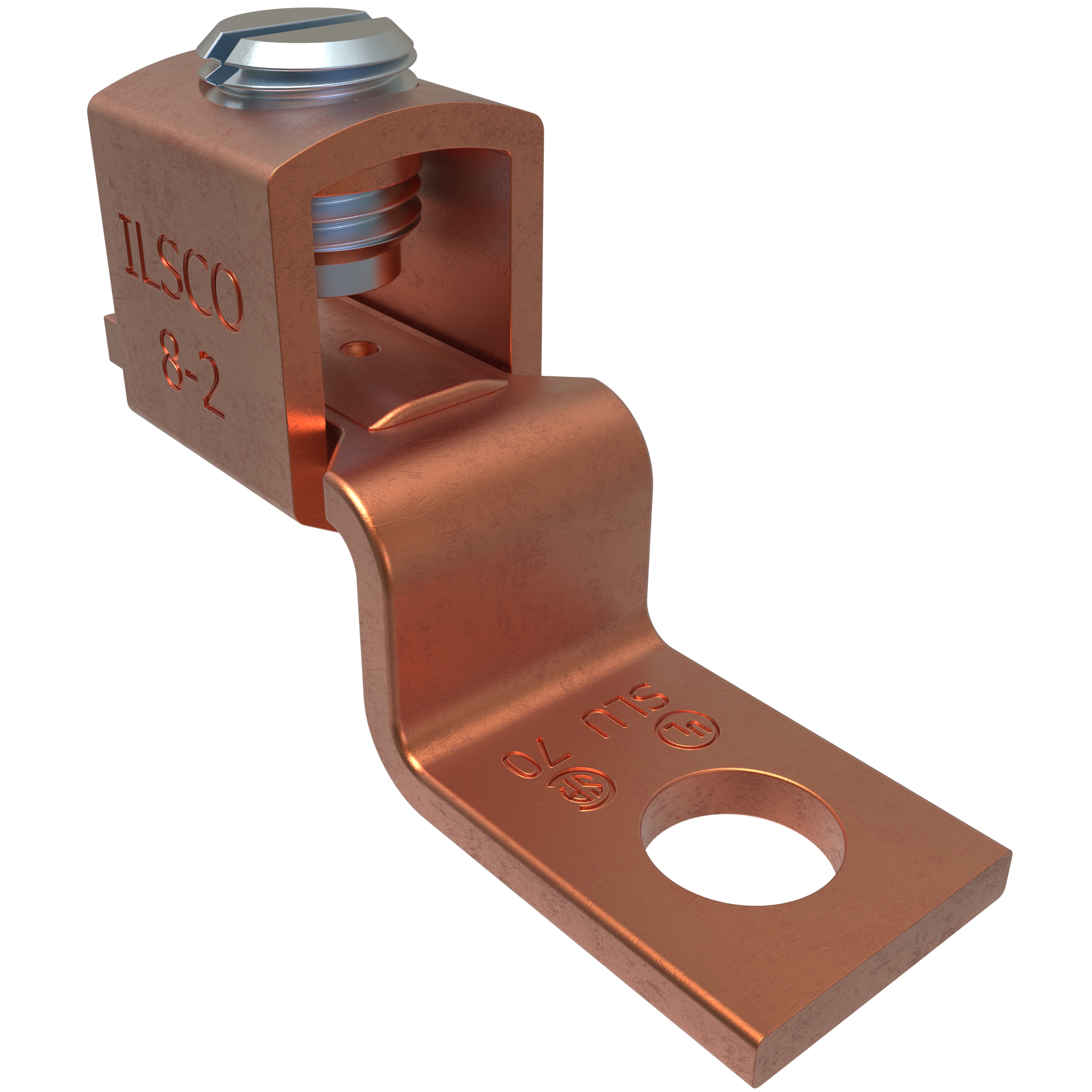

SLU70 - 8-2AWG Cop Term Lug

Ilsco

In-Stock: 0 available locally (Nacogdoches, TX)

QTY:

  • Help Improve Our Data
    Quick Specs
    Catalog Number
    SLU70
    Manufacturer
    Ilsco
    Manufacturer's Part Number
    SLU-70
    Description
    8-2AWG Cop Term Lug
    Mechanical Lug, V Bottom Collar Type; Electrolytic Copper Material; 1 17/32 Inch Overall Length; 8 Awg Min. Conductor Size; 2 Awg Max. Conductor Size; Copper Conductor Material; Ul 453-G, Ul 486A, Ul 486B, Csa Approval; 1 Conductor(S); 1/4 Inch Stud Size
    Categories
    Solderless Connectors - Large Terminals & Connectors  Mark as Incorrect
    Suggest a New Category
    Classification
    Split Bolts
    UNSPSC
    39121408 - Mechanical connectors
    UPC/EAN/GTIN
    Weight per unit
    0.048 (lbs/each)
    Price & Packaging
    Minimum Order Quantity
    1 Unit
    Unit
    $4.21 (each)
    Carton
    $4.21 (1 units)
    Standard Packaging
    $421.20 (100 units)
    Stock Availability
    Nacogdoches
    0
    All Stores
    186
    Resources
    Images


    SLU70 - Small Image

    SLU70 - Large Image

    SLU70 - Small Image
    Specifications Sheets


    SLU70 - Specification Sheet


    Suggest Substitute Item
    Help Improve Our Data
  • Help Improve Our Data
    Additional Information
    Additional Information
    PACKAGING QUANTITY 100; VOLTAGE RATING 2000 V
    Approval
    UL, CSA
    Brand
    ILSCO[R]
    Category Description
    SPLIT BOLTS
    Commodity Description
    Solderless Connectors - Large Terminals & Connectors
    Description
    8-2AWG COP TERM LUG
    Documents
    Yes
    Long Description
    MECHANICAL LUG, V BOTTOM COLLAR TYPE; ELECTROLYTIC COPPER MATERIAL; 1 17/32 INCH OVERALL LENGTH; 8 AWG MIN. CONDUCTOR SIZE; 2 AWG MAX. CONDUCTOR SIZE; COPPER CONDUCTOR MATERIAL; UL 453-G, UL 486A, UL 486B, CSA APPROVAL; 1 CONDUCTOR(S); 1/4 INCH STUD SIZE
    Manufacturers Part Number
    SLU-70
    Material
    ELECTROLYTIC COPPER
    Maximum Conductor Size
    2 AWG
    Minimum Conductor Size
    8 AWG
    Model
    SLU
    Number of Conductors
    1
    Number of Pad Holes
    1
    Overall Length
    1-17/32 INCH
    Pad Size
    21/32 INCH L X 1/2 INCH W X 0.083 INCH THK
    Pad Type
    OFFSET
    Yes
    Product Type
    Mechanical Lug
    Screw Type
    SLOT
    Stud Size
    1/4 INCH
    Type
    V BOTTOM COLLAR
