- Quick Specs
-
- Catalog Number
- DVSTVWH
- Manufacturer
- Lutron
- Manufacturer's Part Number
- DVSTV-WH
- Description
-
Diva DV 8A 0-10V 3WY White
Dimmable Bulb, Paddle Switch, 120 to 277 V, 3 W, Fluorescent Lamp, Wall Mount, 2.94 In Length, 2.75 In Width, 4.69 In Height, White, +32 °F Operating Temperature, +104 °F Operating Temperature, 1 Yr Warranty, 0.26 LB/Ea
- Slang Terms
-
Suggest a New Term
- Similar Brands
- Categories
-
Lighting Dimmers & Dimming Sys -
Lighting Dimmers
Mark as Incorrect
Suggest a New Category
- Classification
-
Residential Dimmers, Motion Sensors, Controls, & Photo Cells
- UNSPSC
-
N/A
- UPC/GTIN
-
784276099622 / 00784276099622
- Weight per unit
-
0.26 (lbs/each)
- Price & Packaging
-
- Minimum Order Quantity
- 1
- Unit
-
$83.99 (Each)
-
Standard Packaging
-
$335.96 (Per 4)
- Resources
-
- Images
-
-
-
DVSTVWH
- Small Image
-
-
DVSTVWH
- Large Image
-
-
DVSTVWH
- Large Image
-
-
DVSTVWH
- Large Image
- Installation Sheets
-
-
-
DVSTVWH
- Installation Sheet
-
-
DVSTVWH
- Installation Sheet
-
-
DVSTVWH
- Installation Sheet
- Attachments
-
-
-
DVSTVWH
- Specification Sheet
-
-
DVSTVWH
- Specification Sheet
-
-
DVSTVWH
- Specification Sheet
-
-
DVSTVWH
- Specification Sheet
- Other Links
-
-
-
DVSTVWH
- Other
-
-
DVSTVWH
- Other
-
-
DVSTVWH
- Other
-
-
DVSTVWH
- Other
-
-
DVSTVWH
- Other
Suggest Substitute Item
Help Improve Our Data
Edit Mode: Please login to suggest improvements for this item.
Close
-
Thank you for your suggestions!
We appreciate your assistance in improving our software. It helps us serve you even better!
Edit Mode: Please login to suggest improvements for this item.
Close
Help Improve Our Data
- Features
-
- Lamp Type
-
Fluorescent
- Voltage Rating
-
120 to 277 v
- Poles
-
1
- Wattage
-
2216
- amperage rating
-
48.000 48.000
- Material
-
METAL/PLASTIC
- actuator
-
Paddle Switch
- insulation
-
Plastic
- connection
-
Wire Leads
- Material, Color, and Finish
-
- Color
-
White
- Dimensions and Weight
-
- Length
-
2.94 in;75 mm
- Width
-
2.75 in;70 mm
- Height
-
4.69 in;119 mm
- Size
-
4.69 in (119 mm) x 2.94 in (75 mm)
- Descriptions
-
- Product Type
-
dimmable Bulb
- Long Description
-
Dimmable Bulb, Paddle Switch, 120 to 277 V, 3 W, Fluorescent Lamp, Wall Mount, 2.94 in Length, 2.75 in Width, 4.69 in Height, White, +32 °F Operating Temperature, +104 °F Operating Temperature, 1 yr Warranty, 0.26 lb/EA
- Features
-
C•L dimmers are UL listed for controlling a broad range of dimmable CFLs and LEDs. They offer more reliable dimming performance over standard dimmers when dimming CFLs and LEDs, and also provide full range dimming for incandescent and halogen bulbs
- Short Description
-
Dimmable Bulb Paddle Switch, 1P,3W, Fluorescent, White
- extra long description
-
LUT DVSTV-WH DIVA 0-10 W/SWITCHING
- Description
-
DIVA DV 8A 0-10V 3WY WHITE
- Special Features
-

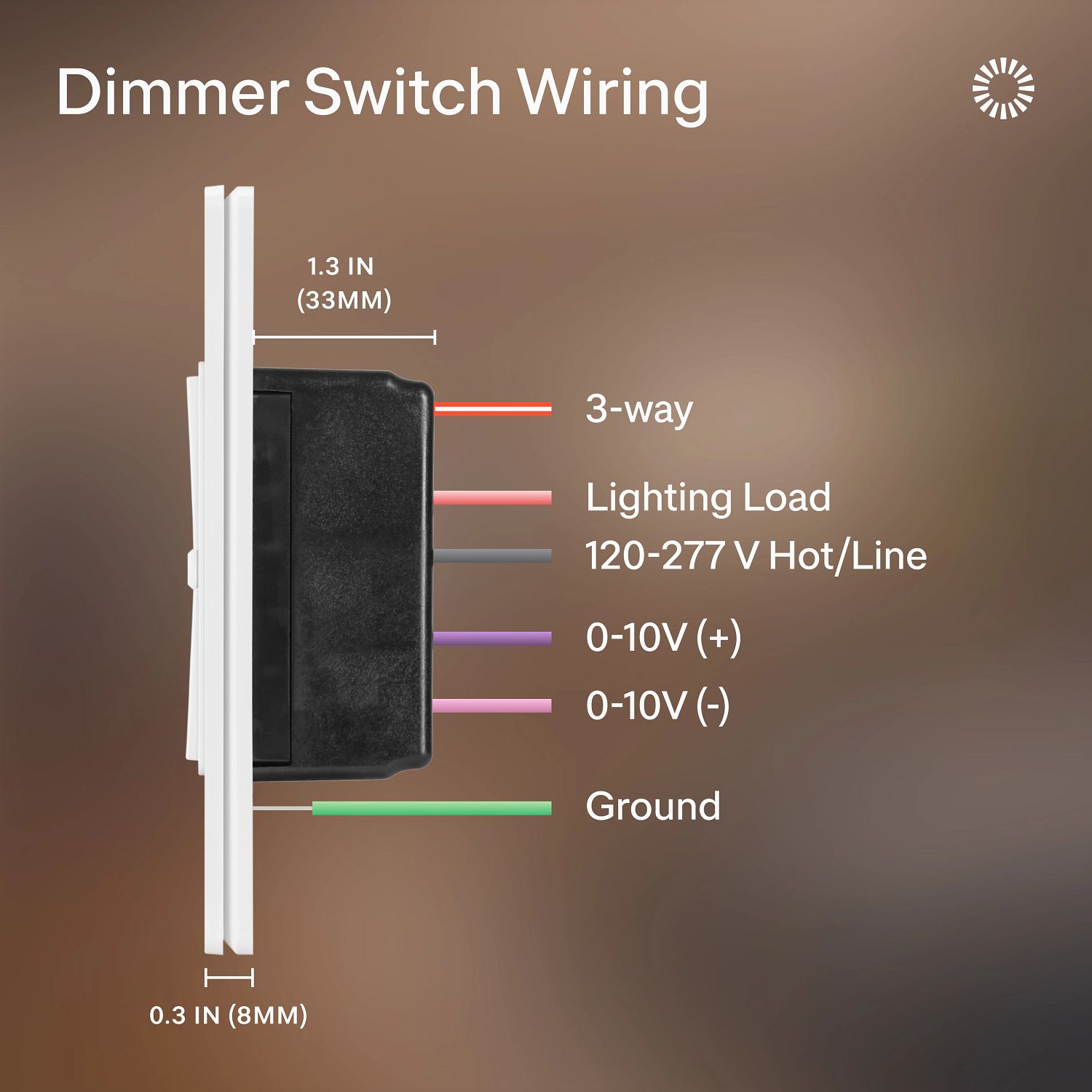

Controls 0-10 V LED or fluorescent fixture loads, 50 mA max control current. Paddle turns on/off. Slide up to brighten, down to dim.
- Additional Information
-
- Switch Type
-
Paddle Switch
- Power Rating
-
3 W
- Minimum Operating Temperature
-
+0 °C;+32 °F
- Maximum Operating Temperature
-
+40 °C;+104 °F
- Mounting Type
-
Wall Mount
- Warranty
-
1 yr
- package quantity
-
1 CA;4 PK
- Coil Voltage
-
48.000 48.000
- Manufacturer Information
-
- Manufacturers Part Number
-
DVSTV-WH
- Brand
-
Lutron
- sub brand
-
Diva(R)
- GTIN
-
00784276099622
- UPC
-
784276099622
- Taxonomies, Classifications, and Categories
-
- Category Description
-
Residential dimmers, motion sensors, controls, & photo cells
- Type
-
Dimmer, 3-way/single-pole
- Packaging
-
- Weight
-
0.26 lb/EA
- Weight per each
-
0.26
- Carton
-
1
- Package
-
4
- Uses, Certifications, and Standards
-
- Operating Temperature
-
32 to 104 F (0 to 40 C)
- Frequency Rating
-
60
- environmental conditions
-
Indoor use only
- Application
-
Lighting Control
- Enclosure
-
Plastic
- standard
-
UL, CSA
- Mounting
-
WALLBOX
