MS0PS2WH - LUT

MS0PS2WH - Maestro 2A Occ SP White

Lutron

  • $22.14 (Each)
  • $22.14 (Each)

Availablity: In Stock

QTY:
Each
  • Help Improve Our Data
    Quick Specs
    Catalog Number
    MS0PS2WH
    Manufacturer
    Lutron
    Manufacturer's Part Number
    MS0PS2WH
    Description

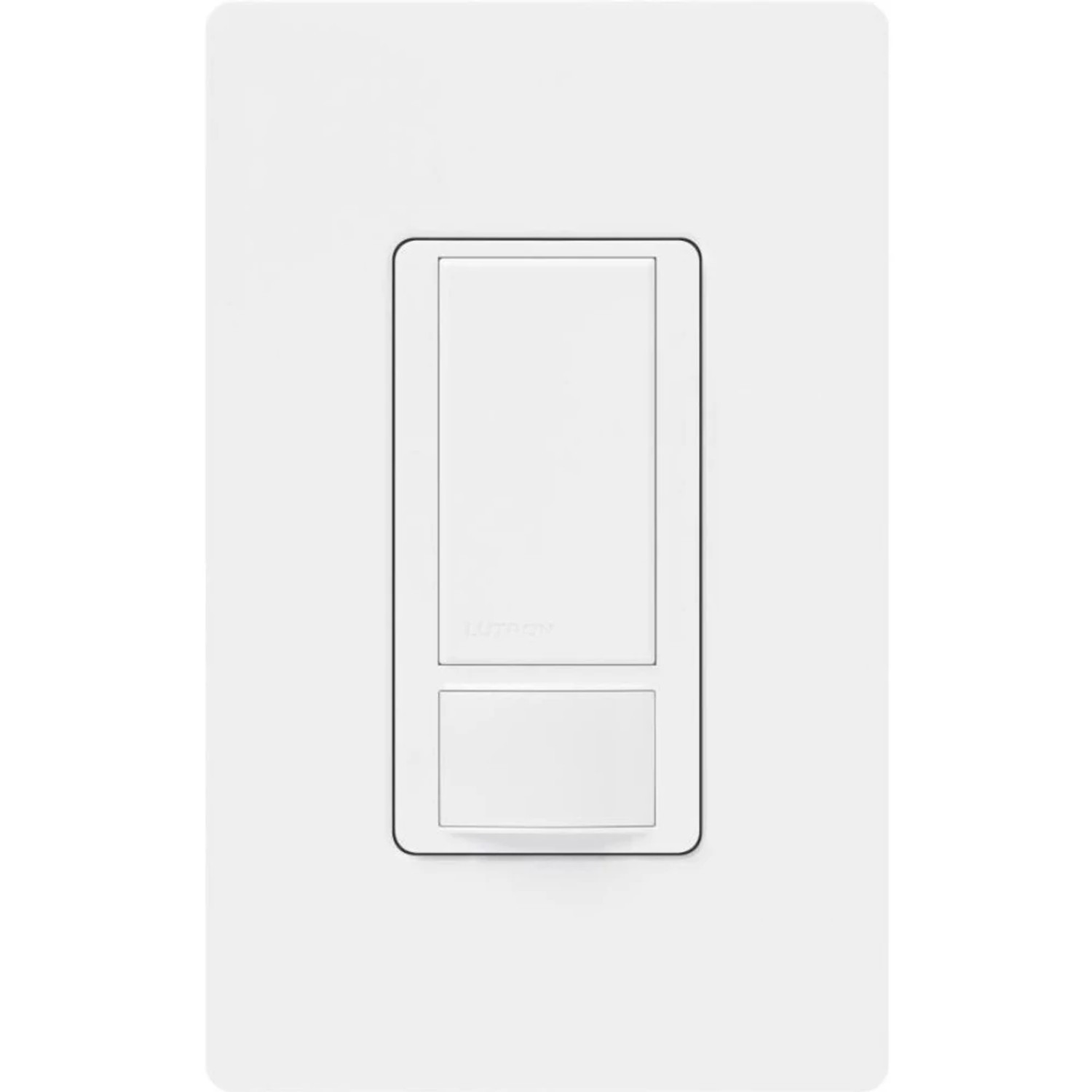

    Maestro 2A Occ SP White
    Occupancy Sensor, 120 to 277 V Ac, 900 to 400 SQ.FT (Major Motion Coverage);82 to 36 M^2 (Minor Motion Coverage) Coverage, 1 Min;5 Min;15 Min;30 Min Time Delay, 2-18/16 In Length, 4-11/16 In Width, White, 5 Yr Warranty, +32 °F Operating Temperature, +104 °F Operating Temperature
    Slang Terms

    Suggest a New Term
    Similar Brands

    Categories
    Lighting Occupancy Sensors & M - Lighting Occupancy Sensors  Mark as Incorrect
    Suggest a New Category
    Classification
    Residential Dimmers, Motion Sensors, Controls, & Photo Cells
    UNSPSC
    N/A
    UPC/GTIN
    027557982825 / 00027557982825
    Weight per unit
    0.2 (lbs/each)
    Price & Packaging
    Minimum Order Quantity
    1
    Unit
    $22.14 (Each)
    Resources
    Images


    MS0PS2WH - Small Image

    MS0PS2WH - Large Image
    Specifications Sheets


    MS0PS2WH - Specification Sheet
    Attachments


    MS0PS2WH - Specification Sheet

    MS0PS2WH - Specification Sheet
    Other Links


    MS0PS2WH - Other

    MS0PS2WH - Other

    MS0PS2WH - Other

    MS0PS2WH - Other


    Suggest Substitute Item
    Help Improve Our Data
  • Help Improve Our Data
    Features
    Voltage Rating
    120 to 277 V ac
    Material, Color, and Finish
    Color
    White
    Dimensions and Weight
    Length
    2-18/16 in;75 mm
    Width
    4-11/16 in;119 mm
    Descriptions
    Product Type
    Occupancy Sensor
    Long Description
    Occupancy Sensor, 120 to 277 V ac, 900 to 400 sq.ft (Major Motion Coverage);82 to 36 m^2 (Minor Motion Coverage) Coverage, 1 min;5 min;15 min;30 min Time Delay, 2-18/16 in Length, 4-11/16 in Width, White, 5 yr Warranty, +32 °F Operating Temperature, +104 °F Operating Temperature
    Features
    The Lutron(R) Maestro(R) Occupancy sensing switch combines a Maestro(R) switch with a passive infrared occupancy or vacancy sensor. The sensor detects the heat from occupants moving with in an area to determine whether the space is occupied. Based on the feedback from the sensor, the occupancy sensing switch will adjust the load accordingly.
    Short Description
    Occupancy Sensor, 120 to 277 VAC, White, 6A
    Special Features
    Combines a Maestro switch with a passive infrared occupancy sensor. Detects the heat from occupants moving within an area to determine whether the space is occupied. Based on the feedback from the sensor, the occupancy sensing switch will adjust the load accordingly. Passive infrared sensors with exclusive Lutron XCT Technology for fine motion detection. 180 degree sensor field-of-view. Up to 30 ft x 30 ft (9 m x 9 m) [900 ft2 (81 m2)] major motion coverage and 20 ft x 20 ft (6 m x 6 m) [400 ft2 (36 m2)]
    Description
    MAESTRO 2A OCC SP WHITE
    Additional Information
    coverage
    900 to 400 sq.ft (Major Motion Coverage);82 to 36 m^2 (Minor Motion Coverage)
    Time Delay
    1 min;5 min;15 min;30 min
    Warranty
    5 yr
    Maximum Operating Temperature
    +40 °C;+104 °F
    Minimum Operating Temperature
    0 °C;+32 °F
    package quantity
    1 CT
    supply voltage
    120 Vac
    load
    2 A
    sensing range
    900 ft2 (82 m2) major motion coverage/400 ft2 (36 m2) minor motion coverage
    body
    Plastic
    Manufacturer Information
    Manufacturers Part Number
    MS0PS2WH
    Brand
    LUTRON
    sub brand
    Maestro
    GTIN
    00027557982825
    UPC
    027557982825
    Taxonomies, Classifications, and Categories
    Category Description
    Residential dimmers, motion sensors, controls, & photo cells
    Type
    Occupancy sensor switch, single-pole
    Packaging
    Weight per each
    0.2
    Carton
    1
    Uses, Certifications, and Standards
    Application
    Lighting Control;Indoor
    Operating Temperature
    0 to 40 degrees Celsius
    environmental conditions
    0 to 90% humidity, non-condensing. Indoor use only.
    Enclosure
    Plastic
    standard
    UL, cUL, NOM
    Mounting
    WALLBOX
