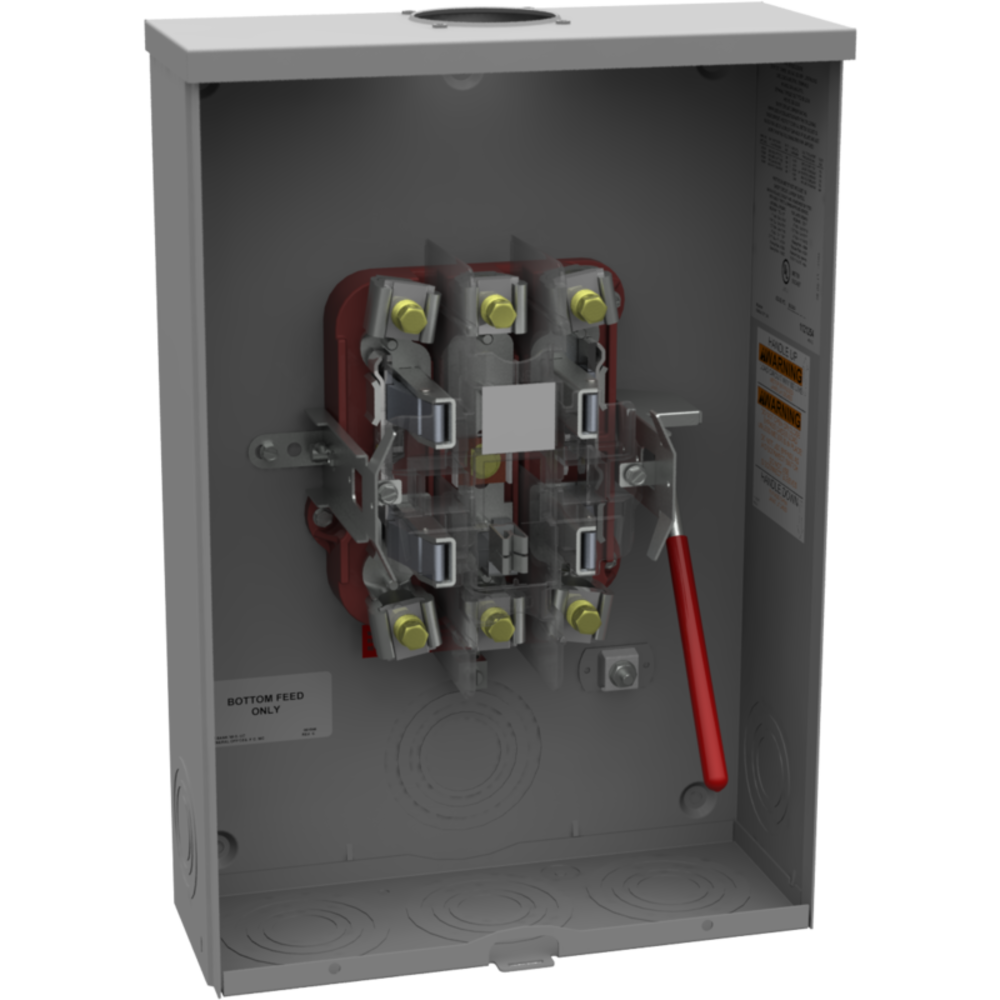

U4581RLQG - MIB

U4581RLQG - 200A 1PH 5T Oh/Ug LVR Bypss MTR SCKT

Milbank

  • $325.83 (for 1 Each)
  • $325.83 (1 Each)

In-Stock: 0 available locally (Nacogdoches, TX) (change location)

QTY:
Each
  • Help Improve Our Data
    Quick Specs
    Catalog Number
    U4581RLQG
    Manufacturer
    Milbank
    Manufacturer's Part Number
    U4581-RL-QG
    Description
    200A 1PH 5T Oh/Ug LVR Bypss MTR SCKT
    Meter Socket, 200 A, 19 In Overall Height, 4.844 In Overall Length, Surface Mount, Plain Top Hub, 1 Phase, 13 In Overall Width, 5 Jaws, 600 V Ac, Lever Bypass, 21 LB/Ea
    Slang Terms

    Suggest a New Term
    Similar Brands

    Categories
    Single Meter Sockets - Commercial Single Meter Socket  Mark as Incorrect
    Suggest a New Category
    Classification
    Temp. Power Panels & Accessories
    UNSPSC
    39121102 - Meter centers or sockets
    UPC/GTIN
    784572267237 / 00784572267237
    Weight per unit
    21 (lbs/each)
    Price & Packaging
    Minimum Order Quantity
    1 Each
    Unit
    $325.83 (1 Each)
    Stock Availability
    Nacogdoches
    0 Each (Find nearest stock)
    All Stores
    14 Each
    Resources
    Images


    U4581RLQG - Small Image

    U4581RLQG - Large Image

    U4581RLQG - Large Image
    Installation Sheets


    U4581RLQG - Installation Sheet
    Specifications Sheets


    U4581RLQG - Specification Sheet


    Suggest Substitute Item
    Help Improve Our Data
  • Help Improve Our Data
    Features
    Number of Phases
    1
    Voltage Rating
    600 V ac
    600 VAC AT 60 HZ
    Current Rating
    200 A
    200 AMPERE
    Wire Size
    6 AWG TO 350 KCMIL (LINE/LOAD)
    Material, Color, and Finish
    Enclosure Material
    Powder Coated G90 Galvanized Steel
    Dimensions and Weight
    Overall Length
    4.844 in
    Size
    13 Inch W x 4-13/16 Inch D x 19 Inch H
    Descriptions
    Product Type
    Single Position Meter Socket
    Meter Socket
    Description
    200A 1PH 5T OH/UG LVR BYPSS MTR SCKT
    Long Description
    Meter Socket, 200 A, 19 in Overall Height, 4.844 in Overall Length, Surface Mount, Plain Top Hub, 1 Phase, 13 in Overall Width, 5 Jaws, 600 V ac, Lever Bypass, 21 lb/EA
    SINGLE POSITION METER SOCKET, RINGLESS TYPE; 13 INCH W X 4-13/16 INCH D X 19 INCH H SIZE; 6 AWG TO 350 KCMIL (LINE/LOAD) WIRE SIZE; POWDER COATED G90 GALVANIZED STEEL ENCLOSURE MATERIAL; UL APPROVAL; 600 VAC AT 60 HZ VOLTAGE RATING; SURFACE MOUNTING
    Short Description
    Meter Socket, 200 A, Plain Top, 1 PH, 5 Jaws
    Commodity Description
    COMMERCIAL SINGLE METER SOCKETS
    Additional Information
    Mounting Type
    Surface Mount
    Enclosure Type
    Nema 3R
    Hub Type
    Plain Top
    SMALL OPENING
    Overall Width
    13 in
    Number of Jaws
    5
    5 in
    Bypass Type
    Lever Bypass
    Standards Met
    Ul Listed
    package quantity
    1 CT
    accessory type
    Meter Socket
    Overall Height
    19 in
    Knockouts
    (1) (1/4 Inch - 1/2 Inch), (2) (1 Inch - 1-1/4 Inch - 1-1/2 Inch - 2 Inch - 2-1/2 Inch), (4) (1-1/4 Inch - 1-1/2 Inch - 2 Inch - 2-1/2 Inch - 3 Inch) Concentric Knockout, (1) 1/4 Inch Solid Knockout
    Circuit Configuration
    1-Phase
    Bypass Switch Type
    LEVER
    Service Type
    OVERHEAD/UNDERGROUND
    Neutral Type
    Quadplex Ground
    Manufacturer Information
    Brand
    MILBANK
    Milbank MFG.
    MILBANK MFG CO
    Manufacturers Part Number
    U4581-RL-QG
    Model
    U4581
    GTIN
    00784572267237
    UPC
    784572267237
    Taxonomies, Classifications, and Categories
    Category Description
    TEMP. POWER PANELS & ACCESSORIES
    Type
    RINGLESS
    Packaging
    Weight
    21 lb/EA
    Weight per each
    21
    Carton
    1
    Uses, Certifications, and Standards
    Application
    Commercial
    Enclosure
    NEMA 3R
    Mounting
    SURFACE
    Approval
    UL mA
