U7262RLTG - MIB

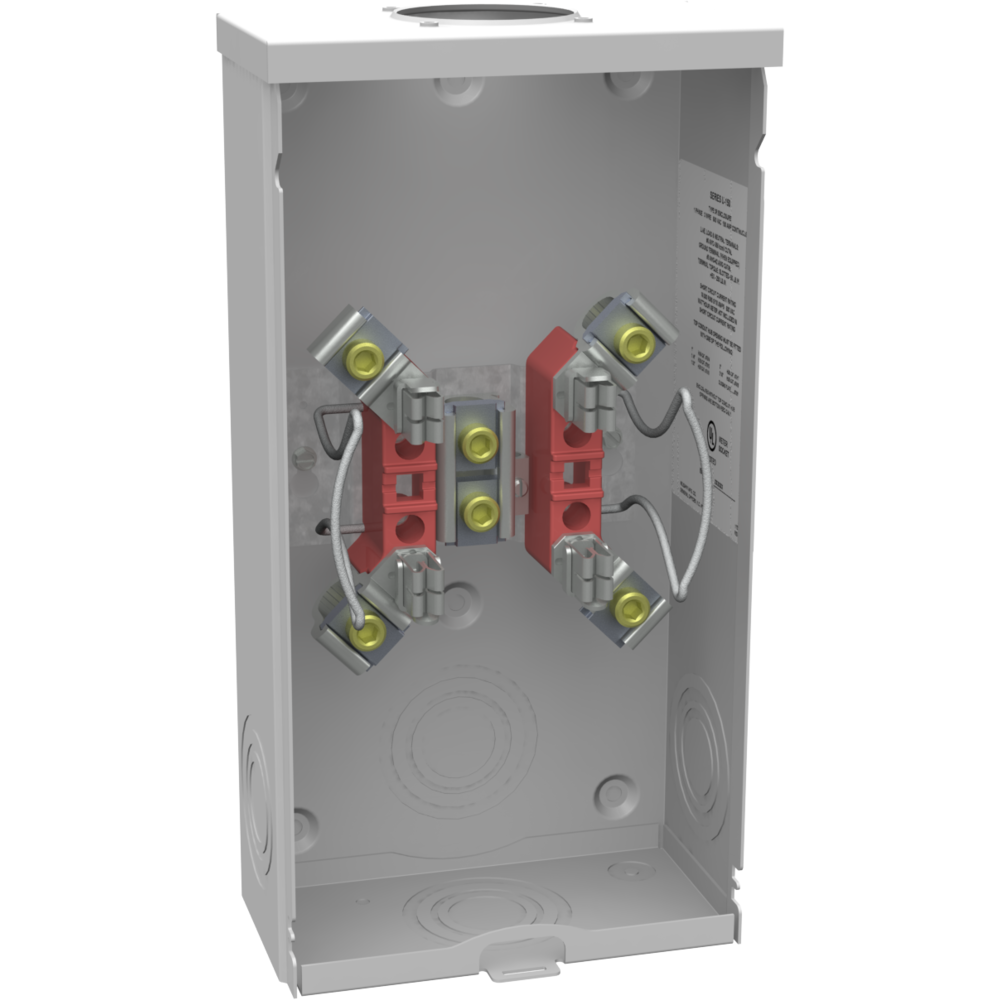

U7262RLTG - 150A 1PH Oh 4T Meter Socket

Milbank

In-Stock: 0 available locally (Nacogdoches, TX) (change location)

QTY:
Each
  • Help Improve Our Data
    Quick Specs
    Catalog Number
    U7262RLTG
    Manufacturer
    Milbank
    Manufacturer's Part Number
    U7262-RL-TG
    Description
    150A 1PH Oh 4T Meter Socket
    Ringless Type; 8 Inch W X 4-1/8 Inch D X 15-1/2 Inch H Size; 6 Awg to 350 Kcmil (Line/Load) Wire Size; Powder Coated G90 Galvanized Steel Enclosure Material; Ul Approval; 600 Vac At 60 HZ Voltage Rating; Surface Mounting; Nema 3R Enclosure; 150 Ampere Current Rating; 1-Phase Circuit Configuration; Overhead Service Type; Triplex Ground Neutral Type; Small Opening Hub Type; (1) (1/4 Inch - 1/2 Inch), (4) (1 Inch - 1-1/4 Inch - 1-1/2 Inch - 2 Inch - 2-1/2 Inch) Concentric Knockout, (1) 1/4 Inch Solid Knockout
    Slang Terms

    Suggest a New Term
    Categories
    Single Meter Sockets - Residential Single Meter Socke  Mark as Incorrect
    Suggest a New Category
    Classification
    Temp. Power Panels & Accessories
    UNSPSC
    39121102 - Meter centers or sockets
    UPC/GTIN
    784572140479 / 00784572140479
    Weight per unit
    10.25 (lbs/each)
    Price & Packaging
    Minimum Order Quantity
    1 Each
    Unit
    $70.34 (1 Each)
    Carton
    $281.36 (4 Each)
    Stock Availability
    Nacogdoches
    0 Each (Find nearest stock)
    All Stores
    22 Each
    Resources
    Images


    U7262RLTG - Large Image

    U7262RLTG - Small Image
    Specifications Sheets


    U7262RLTG - Specification Sheet
    Attachments


    U7262RLTG - Specification Sheet
    Installation Sheets


    U7262RLTG - Installation Sheet


    Suggest Substitute Item
    Help Improve Our Data
  • Help Improve Our Data
    Features
    Wire Size
    6 AWG TO 350 KCMIL (LINE/LOAD)
    Voltage Rating
    600 VAC AT 60 HZ
    Current Rating
    150 AMPERE
    Material, Color, and Finish
    Enclosure Material
    Powder Coated G90 Galvanized Steel
    Dimensions and Weight
    Size
    8 INCH W X 4-1/8 INCH D X 15-1/2 INCH H
    Descriptions
    Product Type
    Single Position Meter Socket
    Description
    150A 1PH OH 4T METER SOCKET
    Long Description
    RINGLESS TYPE; 8 INCH W X 4-1/8 INCH D X 15-1/2 INCH H SIZE; 6 AWG TO 350 KCMIL (LINE/LOAD) WIRE SIZE; POWDER COATED G90 GALVANIZED STEEL ENCLOSURE MATERIAL; UL APPROVAL; 600 VAC AT 60 HZ VOLTAGE RATING; SURFACE MOUNTING; NEMA 3R ENCLOSURE; 150 AMPERE CURRENT RATING; 1-PHASE CIRCUIT CONFIGURATION; OVERHEAD SERVICE TYPE; TRIPLEX GROUND NEUTRAL TYPE; SMALL OPENING HUB TYPE; (1) (1/4 INCH - 1/2 INCH), (4) (1 INCH - 1-1/4 INCH - 1-1/2 INCH - 2 INCH - 2-1/2 INCH) CONCENTRIC KNOCKOUT, (1) 1/4 INCH SOLID KNOCKOUT
    SINGLE POSITION METER SOCKET, RINGLESS TYPE; 8 INCH W X 4-1/8 INCH D X 15-1/2 INCH H SIZE; 6 AWG TO 350 KCMIL (LINE/LOAD) WIRE SIZE; POWDER COATED G90 GALVANIZED STEEL ENCLOSURE MATERIAL; UL APPROVAL; 600 VAC AT 60 HZ VOLTAGE RATING; SURFACE MOUNTING
    Additional Information
    APPLICABLE STANDARD ANSI C12.7
    Commodity Description
    RESIDENTIAL SINGLE METER SOCKETS
    Additional Information
    Number of Jaws
    4 in
    Knockouts
    (3) 2 1/2 INCH, (1) 1/4 INCH, (1) (1/4-INCH-1/2 INCH) CONCENTRIC KNOCKOUT
    Circuit Configuration
    1-Phase
    Bypass Switch Type
    NO
    Service Type
    OVERHEAD
    Hub Type
    SMALL OPENING, NO
    Neutral Type
    TRIPLEX GROUND
    Manufacturer Information
    Brand
    MILBANK
    MILBANK[T]
    Manufacturers Part Number
    U7262-RL-TG
    Model
    U7262
    GTIN
    00784572140479
    UPC
    784572140479
    Taxonomies, Classifications, and Categories
    Category Description
    TEMP. POWER PANELS & ACCESSORIES
    Type
    RINGLESS
    Availability
    Manufacturer Status
    Non-Stock
    Packaging
    Weight per each
    10.25
    Carton
    4
    Uses, Certifications, and Standards
    Enclosure
    NEMA 3R
    Mounting
    SURFACE
    Approval
    UL mA
