ITG6 - NSI

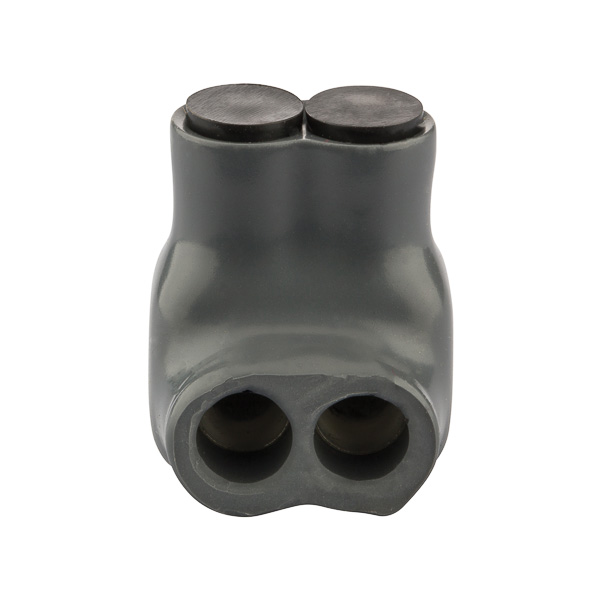

ITG6 - #6-#14 Polaris Insul-Tap Connector For Dlo Cable

Nsi

  • $16.04 (for 1 Each)
  • $16.04 (1 Each)
  • $48.12 (3 Each)

In-Stock: 0 available locally (Nacogdoches, TX) (change location)

QTY:
Each
  • Help Improve Our Data
    Quick Specs
    Catalog Number
    ITG6
    Manufacturer
    Nsi
    Manufacturer's Part Number
    ITG-6
    Description
    #6-#14 Polaris Insul-Tap Connector For Dlo Cable
    Multi-Tap Connector, #14 Awg Conductor Size, #6 Awg Conductor Size, Insulated, Plastisol Insulation Material, Copper Conductor Material, Gray Insulation Color, 2 Conductors, -45 °C Operating Temperature, +90 °C Operating Temperature, 1.13 In Overall Length, 600 V Ac, 0.06 LB/Ea
    Slang Terms

    Suggest a New Term
    Similar Brands

    Categories
    Solderless Connectors - Large Terminals & Connectors  Mark as Incorrect
    Suggest a New Category
    Classification
    Split Bolts
    UNSPSC
    39121409 - Wire connectors
    UPC/GTIN
    662381951403 / 00662381951403
    Weight per unit
    0.06 (lbs/each)
    Price & Packaging
    Minimum Order Quantity
    1 Each
    Unit
    $16.04 (1 Each)
    Standard Packaging
    $48.12 (3 Each)
    Stock Availability
    Nacogdoches
    0 Each (Find nearest stock)
    All Stores
    149 Each
    Resources
    Other Links


    ITG6 - Other
    Images


    ITG6 - Small Image

    ITG6 - Large Image

    ITG6 - Large Image
    Attachments


    ITG6 - Specification Sheet
    Brochures


    ITG6 - Brochure


    Suggest Substitute Item
    Help Improve Our Data
  • Help Improve Our Data
    Features
    Wire Size
    (Class B,C,D) 6-14 AWG - (Class K,M,I) 6-14 AWG
    Poles
    1 IN
    Number of Conductors
    2 IN
    Voltage Rating
    600 VAC
    Material
    Plastisol
    Material, Color, and Finish
    Insulation Material
    Plastisol
    Conductor Material
    Copper
    Insulation Color
    Gray
    Color
    Gray Primer
    Finish
    Plastisol
    Dimensions and Weight
    Overall Length
    1.13 in
    Size
    L=1.130 - W=1.240 - H=1.370 IN
    Descriptions
    Product Type
    Multi-Tap Connector
    Polaris Grey Multi-Tap 6 2 Port
    Long Description
    Multi-Tap Connector, #14 AWG Conductor Size, #6 AWG Conductor Size, Insulated, Plastisol Insulation Material, Copper Conductor Material, Gray Insulation Color, 2 Conductors, -45 °C Operating Temperature, +90 °C Operating Temperature, 1.13 in Overall Length, 600 V ac, 0.06 lb/EA
    Short Description
    Multi-Tap Connector, Insulated, 1.13 in L, 600 VAC
    Special Features
    Abrasion Resistant;Chemical Resistant
    (2) 6-14 AWG Class B,C,D - (2) 6-14 AWG Class K,M,I
    Description
    #6-#14 POLARIS INSUL-TAP CONNECTOR FOR DLO CABLE
    Additional Information
    Minimum Conductor Size
    #14 AWG
    Maximum Conductor Size
    #6 AWG
    For Stud Size
    3/16 in (Hex)
    Insulated/Non-Insulated
    Insulated
    Minimum Operating Temperature
    -45 °C
    Maximum Operating Temperature
    +90 °C
    for use with
    Wire Termination;Fine Stranded Flexible Copper Conductor
    Maximum Voltage Rating
    600 V ac
    Standards Met
    UL Listed 486A, 486AB;cULus Listed
    package quantity
    12 CT
    Wire Type
    B,C,D,K,M,I
    Manufacturer Information
    Brand
    Nsi Industries
    NSi
    sub brand
    Polaris Gray
    Polaris Grey
    Manufacturers Part Number
    ITG-6
    GTIN
    00662381951403
    UPC
    662381951403
    Taxonomies, Classifications, and Categories
    Category Description
    SPLIT BOLTS
    Type
    Multi Cable
    Packaging
    Weight
    0.06 lb/EA
    Weight per each
    0.06
    Carton
    1
    Package
    3
    Uses, Certifications, and Standards
    Temperature Rating
    90 WTT
    standard
    cULus
    environmental conditions
    90 WTT
    Application
    Wire Termination
    Help Improve Our Data
