3232W - PAS

3232W - 15A 125V Duplex Recpt

Legrand-Pass & Seymour

  • $0.54 (Each)
  • $0.54 (Each)
  • $5.40 (Per 10)
  • $54.00 (Per 100)
  • $108.00 (Per 200)

In-Stock: 469 available locally (Nacogdoches, TX) (change location)

QTY:
Each
  • Help Improve Our Data
    Quick Specs
    Catalog Number
    3232W
    Manufacturer
    Legrand-Pass & Seymour
    Manufacturer's Part Number
    3232-W
    Description
    15A 125V Duplex Recpt
    Duplex Receptacle, 15 A, 125 V Ac, 2 Poles, 3 Wires, #14 to #12 Awg Compatible Wire Size, Grounding Connection, Wall Mount, 1.320 In Length, 0.960 In Width, 3.31 In Height, Thermoplastic, White, 0.1300 LB
    Slang Terms

    Suggest a New Term
    Similar Brands

    Categories
    Gen Purpose Wiring Devices - Gen Purpose Recept & Surge Pro  Mark as Incorrect
    Suggest a New Category
    Classification
    Residential Recepticals
    UNSPSC
    39121406 - Electrical receptacles
    UPC/GTIN
    785007323276 / 00785007323276
    Weight per unit
    0.128 (lbs/each)
    Price & Packaging
    Minimum Order Quantity
    1
    Unit
    $0.54 (Each)
    Carton
    $5.40 (Per 10)
    Standard Packaging
    $108.00 (Per 200)
    Stock Availability
    Nacogdoches
    469 (Check another store)
    All Stores
    33,970
    Resources
    Images

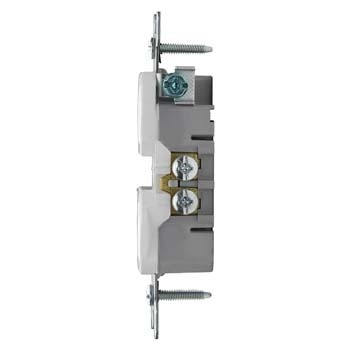

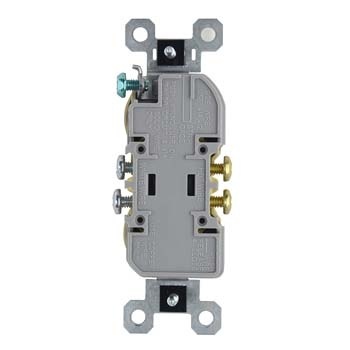

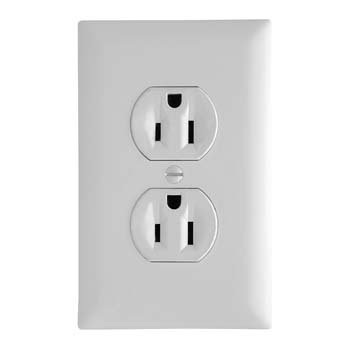

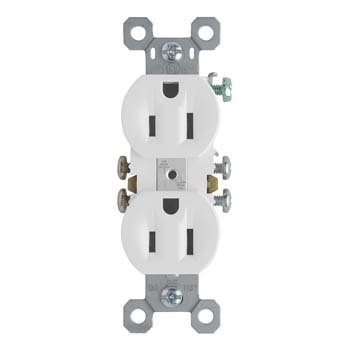

    3232W - Large Image

    3232W - Large Image

    3232W - Large Image

    3232W - Small Image

    3232W - Large Image

    3232W - Video

    3232W - 360 Image
    Installation Sheets


    3232W - Installation Sheet
    Attachments


    3232W - Specification Sheet

    3232W - Specification Sheet

    3232W - Specification Sheet
    Brochures


    3232W - Brochure
    Other Links

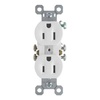

    3232W - Other

    3232W - Other

    3232W - Other


    Suggest Substitute Item
    Help Improve Our Data
  • Help Improve Our Data
    Features
    Current Rating
    15 A
    Voltage Rating
    125 V ac
    125 VAC
    Number of Wires
    3
    3 in
    Material
    Thermoplastic
    THERMOPLASTIC
    amperage rating
    15 Amps
    Poles
    2 in
    Wire Size
    798
    connection
    Grounding
    Material, Color, and Finish
    Color
    White
    WHITE GLOSS
    Dimensions and Weight
    Length
    1.320 in
    Width
    0.960 in
    Height
    3.31 in
    Size
    4.2 in
    Descriptions
    Product Type
    Recep Dup 15A125V Screw Term W
    Duplex Receptacle
    Description
    15A 125V DUPLEX RECPT
    Special Features
    Quickloop Wire Aid;Side Access Push Wire Release
    Quickloop wire aid, Side access push wire release
    Long Description
    Duplex Receptacle, 15 A, 125 V ac, 2 Poles, 3 Wires, #14 to #12 AWG Compatible Wire Size, Grounding Connection, Wall Mount, 1.320 in Length, 0.960 in Width, 3.31 in Height, ThermoPlastic, White, 0.1300 lb
    Duplex Grounding Receptacle with high-impact resistant thermoplastic construction. It has ultrasonic welding of face to back body and long-term blade retention. 15 amp, 125 volt. White.
    Features
    Our Pass & Seymour TradeMaster(R) receptacles combine a traditional look with reliable, time-tested operation for any residential application.
    Short Description
    15 A, 125 VAC, Duplex Receptacle, White
    Additional Information
    media
    Yes
    package quantity
    10 CT;200 PK
    Standards Met
    UL 498;C22.2 No.42;cULus Listed;RoHS Compliant;CSA Standard;LEED
    Receptacle Type
    Duplex
    Compatible Wire Size
    #14 to #12 AWG
    Connection Type
    Grounding
    Mounting Type
    Wall Mount
    Manufacturer Information
    Brand
    Pass & Seymour/Legrand
    LEGRAND-PASS & SEYMOUR
    Pass and Seymour
    Radiant
    legrand
    Manufacturers Part Number
    3232-W
    sub brand
    Pass & Seymour
    GTIN
    00785007323276
    UPC
    785007323276
    Taxonomies, Classifications, and Categories
    Category Description
    Residential recepticals
    Type
    Straight Blade Receptacle
    Packaging
    Weight
    0.1300 lb
    Weight per each
    0.128
    Carton
    10
    Package
    200
    Uses, Certifications, and Standards
    Application
    Residential;Commercial
    Residential/Commercial
    nema rating
    5-15R
    standard
    UL 498
    Mounting
    WALL
    Help Improve Our Data
