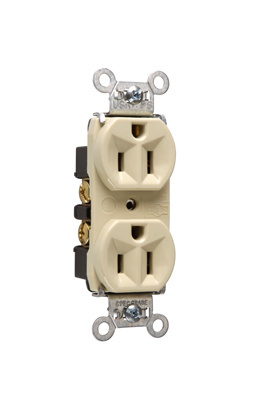

5262I - PAS

5262I - 15A 125V Spec Dup

Pass and Seymour

In-Stock: 12 available locally (Nacogdoches, TX) (change location)

Buy Now
QTY:
  • Help Improve Our Data
    Quick Specs
    Catalog Number
    5262I
    Manufacturer
    Pass and Seymour
    Manufacturer's Part Number
    5262-I
    Description
    15A 125V Spec Dup
    Hard Use Spec Grade Duplex Receptacle Back and, Side Wire 15AMP 125VOLT Ivory
    Slang Terms

    Suggest a New Term
    Categories
    Gen Purpose Wiring Devices - Gen Purpose Recept & Surge Pro  Mark as Incorrect
    Suggest a New Category
    Classification
    Commercial Recepticals
    UNSPSC
    39121406 - Electrical receptacles
    UPC/GTIN
    785007526219 / 00785007526219
    Weight per unit
    0.2 (lbs/each)
    Price & Packaging
    Minimum Order Quantity
    1 Unit
    Unit
    $9.40 (each)
    Carton
    $9.40 (1 units)
    Standard Packaging
    $94.00 (10 units)
    Stock Availability
    Nacogdoches
    12
    All Stores
    361
    Resources
    Images


    5262I - Large Image

    5262I - Small Image
    Installation Sheets


    5262I - Installation Sheet
    Attachments


    5262I - Specification Sheet


    Suggest Substitute Item
    Help Improve Our Data
  • Help Improve Our Data
    Additional Information
    amperage rating
    15
    Application
    COMMERCIAL
    Brand
    Pass and Seymour
    Category Description
    Commercial recepticals
    Color
    IVORY
    connection
    Back and side wire
    Description
    15A 125V SPEC DUP
    Dielectric Strength
    Withstands 2000V minimum
    Documents
    Yes
    environmental conditions
    Flammability: UL94 V2
    Long Description
    Hard Use Spec Grade Duplex Receptacle Back and, Side Wire 15amp 125volt Ivory
    Manufacturers Part Number
    5262-I
    Material
    NYLON
    Mounting
    WALL
    nema rating
    5-15R
    Number of Wires
    3
    Yes
    Poles
    2
    Product Type
    Recp Dup 15A 125V S+B Wire Iv
    Size
    1.322 L x .780 W x 3.281 H
    special features
    Corrosion-resistant, plated and tabbed steel strap locked in to face and back body to resist pulling away from face/body assembly. .032 inch thick, brass, triple-wipe power contacts for lasting retention. Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring. Impact-resistant nylon face. 8 hole internal screw-pressure-plate back wire terminals accept #14 – #10 AWG solid or stranded copper or copper-clad conductors. Terminal compartments isolated from each other for posi
    standard
    UL498, CSA C22.2 No. 42
    sub brand
    Pass & Seymour
    Temperature Rating
    Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
    Type
    Spec Grade Receptacle, Hard Use
    Voltage Rating
    125
    Wire Size
    #14 - #10
