5851LA - PAS

Also in stock

1876LA - Recp Single 20A 250V 2P3W Swire La - Eaton Wiring Devices
$3.98Each

Eaton Wiring Devices
Recp Single 20A 250V 2P3W Swire La


View or Compare

5851LA - 20A 250V Spec SNGL Rec

Legrand-Pass & Seymour

  • $6.31 (Each)
  • $6.31 (Each)
  • $63.13 (Per 10)
  • $631.26 (Per 100)

In-Stock: 0 available locally (Nacogdoches, TX) (change location)

QTY:
Each
  • Help Improve Our Data
    Quick Specs
    Catalog Number
    5851LA
    Manufacturer
    Legrand-Pass & Seymour
    Manufacturer's Part Number
    5851-LA
    Description
    20A 250V Spec SNGL Rec

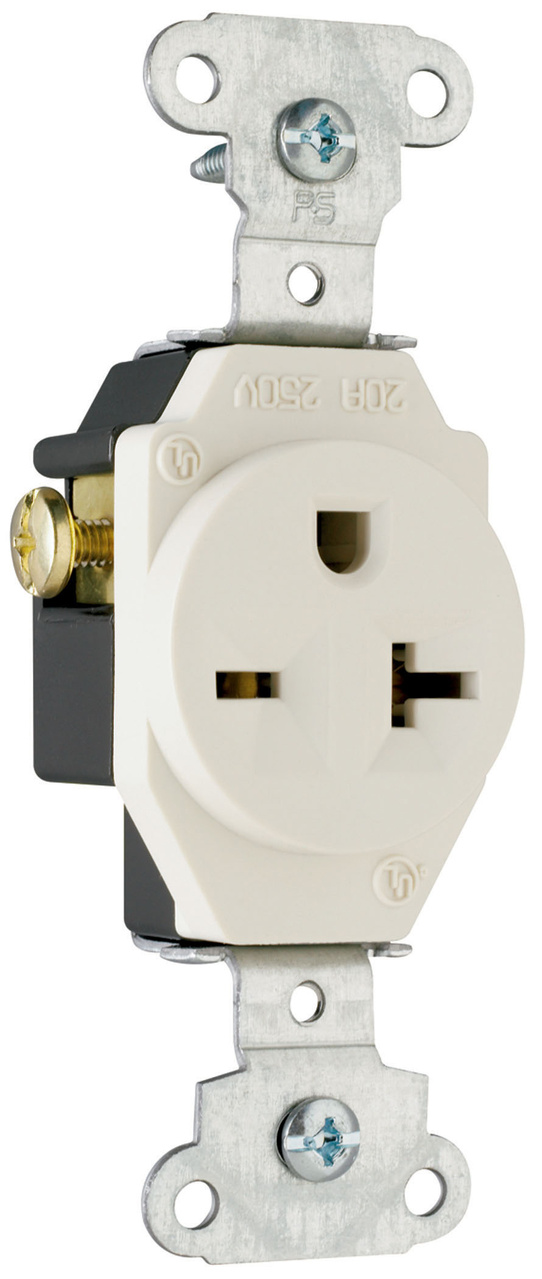

    Heavy-Duty Spec Grade Single Receptacle, Side Wire 20AMP 250VOLT, Light Almond
    Slang Terms

    Suggest a New Term
    Similar Brands

    Categories
    Gen Purpose Wiring Devices - Gen Purpose Recept & Surge Pro  Mark as Incorrect
    Suggest a New Category
    Classification
    Industrial Recepticals
    UNSPSC
    39121406 - Electrical receptacles
    UPC/GTIN
    785007585131 / 00785007585131
    Weight per unit
    0.1604 (lbs/each)
    Price & Packaging
    Minimum Order Quantity
    1
    Unit
    $6.31 (Each)
    Carton
    $63.13 (Per 10)
    Standard Packaging
    $631.26 (Per 100)
    Stock Availability
    Nacogdoches
    0 (Find nearest stock)
    All Stores
    290
    Resources
    Images


    5851LA - Large Image

    5851LA - Large Image

    5851LA - Small Image

    5851LA - Large Image
    Installation Sheets


    5851LA - Installation Sheet
    Attachments


    5851LA - Specification Sheet

    5851LA - Specification Sheet

    5851LA - Specification Sheet
    Brochures


    5851LA - Brochure
    Other Links


    5851LA - Other

    5851LA - Other

    5851LA - Other


    Suggest Substitute Item
    Help Improve Our Data
  • Help Improve Our Data
    Features
    amperage rating
    20 in
    Poles
    2 in
    Voltage Rating
    250 W
    Wire Size
    #14 - #10 Awg
    Number of Wires
    3 in
    connection
    Back and side wire
    Wattage
    Electrical power is expressed in Amps and Volts.
    Material
    Nylon
    Material, Color, and Finish
    Color
    Light Almond
    Dimensions and Weight
    Size
    1.32 L x 1.08 W x 3.68 H In
    Descriptions
    Product Type
    Recept Single 20A 250V Side-Wire La
    Description
    20A 250V SPEC SNGL REC
    Long Description
    Heavy-Duty Spec Grade Single Receptacle, Side Wire 20amp 250volt, Light Almond
    Special Features
    Auto-ground clip assures positive ground. Two drive screws anchor strap to back body and face where abrupt removal torque is greatest. Heavy-duty, corrosion-resistant zinc-plated steel strap for added strength. Backed-out tri-drive steel terminal screws. Internal screw-pressure-plate back and side wire capability. Two back wire holes for increased wiring flexibility. One-piece brass triple-wire power contacts for lasting retention.
    Additional Information
    Dielectric Strength
    Withstands 2000V minimum
    Manufacturer Information
    Brand
    Pass and Seymour
    LEGRAND-PASS & SEYMOUR
    Manufacturers Part Number
    5851-LA
    sub brand
    Pass & Seymour
    GTIN
    00785007585131
    UPC
    785007585131
    Taxonomies, Classifications, and Categories
    Category Description
    Industrial recepticals
    Type
    Spec Grade Single Receptacle
    Packaging
    Weight per each
    0.1604
    Carton
    10
    Package
    100
    Uses, Certifications, and Standards
    nema rating
    6-20R
    Application
    Commercial TEST
    environmental conditions
    Flammability: UL94 V2
    Temperature Rating
    Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
    standard
    UL498, CSA C22.2 No. 42
    Mounting
    WALL
