8200HI - PAS

8200HI - 15A 125V Hosp Grade Rec

Pass and Seymour

In-Stock: 0 available locally (Nacogdoches, TX) (change location)

QTY:
  • Help Improve Our Data
    Quick Specs
    Catalog Number
    8200HI
    Manufacturer
    Pass and Seymour
    Manufacturer's Part Number
    8200-HI
    Description
    15A 125V Hosp Grade Rec
    Heavy-Duty Hospital Grade Compact Design Duplex Receptacle Back and, Side Wire 15AMP 125voltivory
    Slang Terms

    Suggest a New Term
    Categories
    Gen Purpose Wiring Devices - Gen Purpose Recept & Surge Pro  Mark as Incorrect
    Suggest a New Category
    Classification
    Commercial Recepticals
    UNSPSC
    39121406 - Electrical receptacles
    UPC/GTIN
    785007820034 / 00785007820034
    Weight per unit
    0.21 (lbs/each)
    Price & Packaging
    Minimum Order Quantity
    1 Unit
    Unit
    $7.00 (each)
    Carton
    $7.00 (1 units)
    Standard Packaging
    $70.00 (10 units)
    Stock Availability
    Nacogdoches
    0
    All Stores
    214
    Resources
    Images

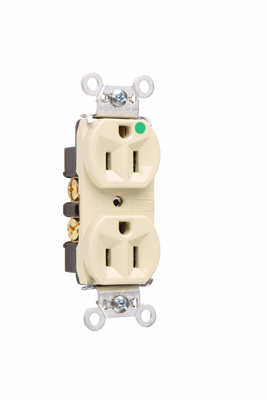

    8200HI - Large Image

    8200HI - Small Image
    Specifications Sheets


    8200HI - Specification Sheet
    Installation Sheets


    8200HI - Installation Sheet


    Suggest Substitute Item
    Help Improve Our Data
  • Help Improve Our Data
    Additional Information
    amperage rating
    15
    Application
    COMMERCIAL
    Brand
    Pass and Seymour
    Category Description
    Commercial recepticals
    Color
    IVORY
    connection
    Back and side wire
    Description
    15A 125V HOSP GRADE REC
    Dielectric Strength
    Withstands 2000V minimum
    Documents
    Yes
    environmental conditions
    Flammability: UL94 V2
    In Print Catalog
    Yes
    Long Description
    Heavy-Duty Hospital Grade Compact Design Duplex Receptacle Back and, Side Wire 15amp 125voltIvory
    Manufacturers Part Number
    8200-HI
    Material
    NYLON
    Mounting
    WALL
    nema rating
    5-15R
    Number of Wires
    3
    Yes
    Poles
    2
    Product Type
    Special Recp Dup 15A 125V Hosp GRD
    Size
    1.322 L x .780 W x 3.281 H
    special features
    Impact-resistant nylon face. One-piece heat-treated triple-wipe brass power contacts. Easily accessible break-off line contact connecting tab for split circuit wiring. Corrosion-resistant, zinc-plated steel strap is locked in. Internal screw-pressure-plate back wire and side wire line terminals accept #14 – #10 AWG copper or copper-clad conductors. High strength thermoplastic back body. Back wire holes allow entry of conductor insulation partially into body but not into wiring compartment. Auto-ground clip
    standard
    UL498, CSA C22.2 No. 42
    sub brand
    Pass & Seymour
    Temperature Rating
    Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
    Type
    Hospital Grade Receptacle, Heavy-Duty, Compact Design
    Voltage Rating
    125
    Wire Size
    #14 - #10
