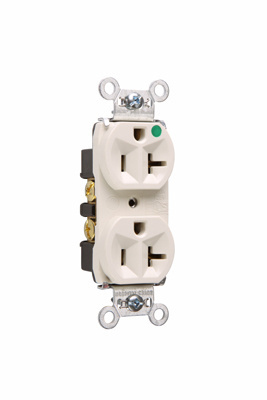

8300HLA - Compact HG Dup Rec 20A 125V La

Legrand-Pass & Seymour

$13.48 (Each)
$13.48 (Each)
$1,347.97 (Per 100)

In-Stock: 20 available at other locations ( find a store with stock)

Buy Now

QTY:

Each

Overview
Specifications
Current Stock
Alternate Items

Overview

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Help Improve Our Data

Quick Specs

Catalog Number: 8300HLA Vendor Code PAS
Manufacturer: Legrand-Pass & Seymour
Manufacturer's Part Number: 8300-HLA
Description: Compact HG Dup Rec 20A 125V La
Heavy-Duty Hospital Grade Compact Design Duplex Receptacle Back and Side Wire 20A 125V
Slang Terms: Suggest a New Term
Categories: Gen Purpose Wiring Devices - Gen Purpose Recept & Surge Pro Mark as Incorrect
Suggest a New Category
Classification: Commercial Receptacles
UNSPSC: 39121406 - Electrical receptacles
UPC/EAN/GTIN: 785007830170 / 0785007830170 / 00785007830170
Weight per unit: 0.2065 (lbs/each)

Price & Packaging

Minimum Order Quantity: 1
Unit: $13.48 (Each)
Carton: $13.48 (Each)
Standard Packaging: $1,347.97 (Per 100)

Stock Availability

Cleburne: 0 (Find nearest stock)
DFW RDC: 0
All Stores: 20

Resources

Images
: 8300HLA - Small Image
: 8300HLA - Large Image
Other Links
: 8300HLA - Other
: 8300HLA - Other
: 8300HLA - Other
: 8300HLA - Other
Attachments
: 8300HLA - Specification Sheet
Brochures
: 8300HLA - Brochure

Suggest Substitute Item

Help Improve Our Data

Edit Mode: Please login to suggest improvements for this item.

Specifications

Thank you for your suggestions! We appreciate your assistance in improving our software. It helps us serve you even better!

Edit Mode: Please login to suggest improvements for this item.

Help Improve Our Data

Features

Amperage Rating: 20
Connection: Back and side wire
Material: Nylon
Number Of Wires: 3
Poles: 2
Voltage Rating: 125
Wattage: Electrical power is expressed in Amps and Volts.
Wire Size: 14 - 10

Material, Color, and Finish

Finish: Matte

Dimensions and Weight

Height: 3.281
Width: .780

Descriptions

Description: COMPACT HG DUP REC 20A 125V LA
Extra Long Description: P&S 8300HLA COMPACT HG DUP REC 20A
Features: Single Piece Plated Steel Mounting Strap
Long Description: Heavy-Duty Hospital Grade Compact Design Duplex Receptacle Back and Side Wire 20A 125V
Product Type: Compact HG Dup Rec 20A 125V La
Special Features: Impact-resistant nylon face. One-piece heat-treated triple-wipe brass power contacts. Easily accessible break-off line contact connecting tab for split circuit wiring. Corrosion-resistant, zinc-plated steel strap is locked in. Internal screw-pressure-plate back wire and side wire line terminals accept #14 – #10 AWG copper or copper-clad conductors. High strength thermoplastic back body. Back wire holes allow entry of conductor insulation partially into body but not into wiring compartment. Auto-ground clip

Additional Information

Dielectric Strength: Withstands 2000V minimum
Indoor/Outdoor: Indoor
Outlet Type: Tamper-Resistant, Hospital Grade
Voltage: 125.0 V
Wall Plate Included: NO

Manufacturer Information

Brand: LEGRAND-PASS & SEYMOUR
Manufacturers Part Number: 8300-HLA
GTIN: 00785007830170
UPC: 785007830170

Taxonomies, Classifications, and Categories

Category Description: Commercial receptacles
Type: Outlet

Trade Size

Amperage: 20.0

Packaging

Weight per each: 0.2065
Carton: 1
Package: 100

Uses, Certifications, and Standards

Application: Commercial
Environmental Conditions: Flammability: UL94 V2
Mounting: WALL
Nema Rating: 5-20R
Operating Temperature: -40°-60°C
Standard: CULUS, UL498, CSA C22.2 No. 42, FEDSPEC
