We Deliver...Lower Cost, Quality Products, and Personal Service.

Elliott Electric Supply
8300I - PAS

Also in stock

8300HI - 20A 125V Hosp Grade Rec - Pass & Seymour/Legrand
$720.00Per 100 Each

Pass & Seymour/Legrand
20A 125V Hosp Grade Rec


View or Compare

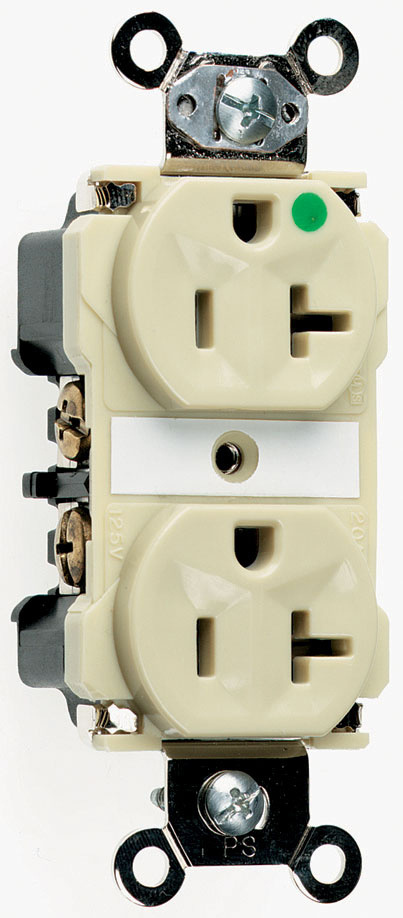

8300I - 20A 125V Hosp Grade Rec

Pass and Seymour

In-Stock: 0 available locally (Nacogdoches, TX) (change location)

QTY:
Each
  • Help Improve Our Data
    Quick Specs
    Catalog Number
    8300I
    Manufacturer
    Pass and Seymour
    Manufacturer's Part Number
    8300-I
    Description
    20A 125V Hosp Grade Rec
    Extra Heavy-Duty Hospital Grade Duplex Receptacle Back and, Side Wire 20AMP 125voltivory
    Slang Terms

    Suggest a New Term
    Categories
    Gen Purpose Wiring Devices - Gen Purpose Recept & Surge Pro  Mark as Incorrect
    Suggest a New Category
    Classification
    Commercial Recepticals
    UNSPSC
    39121406 - Electrical receptacles
    UPC/GTIN
    785007830095 / 00785007830095
    Weight per unit
    0.25 (lbs/each)
    Price & Packaging
    Minimum Order Quantity
    1 Each
    Unit
    $20.10 (1 Each)
    Carton
    $20.10 (1 Each)
    Standard Packaging
    $201.03 (10 Each)
    Stock Availability
    Nacogdoches
    0 Each (Find nearest stock)
    All Stores
    21 Each
    Resources
    Images


    8300I - Large Image

    8300I - Large Image

    8300I - Small Image

    8300I - Large Image

    8300I - Small Image
    Attachments


    8300I - Specification Sheet

    8300I - Specification Sheet
    Installation Sheets


    8300I - Installation Sheet


    Suggest Substitute Item
    Help Improve Our Data
  • Help Improve Our Data
    Features
    connection
    Back and side wire
    Wire Size
    #14 - #10
    Voltage Rating
    125 A
    Poles
    2 A
    amperage rating
    20 A
    Number of Wires
    3 in
    Material
    NYLON
    Material, Color, and Finish
    Color
    IVORY
    Dimensions and Weight
    Size
    1.625 L x .900 W x 3.281 H
    Descriptions
    Product Type
    Hosp GRD Dup Recept 20A/125VAC I
    Long Description
    Extra Heavy-Duty Hospital Grade Duplex Receptacle Back and, Side Wire 20amp 125voltIvory
    Description
    20A 125V HOSP GRADE REC
    special features
    One-piece nickel-plated brass mounting strap with integral ground. Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body. Two drive screws anchor strap to back body and face. Exclusive patented feature, circuit label on face allows permanent circuit identification. .040 inch thick, nickel-plated brass, triple-wipe power contacts for lasting retention. Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring. Impact-resistant
    Additional Information
    Dielectric Strength
    Withstands 2000V minimum
    Manufacturer Information
    Brand
    LEGRAND-PASS & SEYMOUR
    Pass and Seymour
    legrand
    Manufacturers Part Number
    8300-I
    sub brand
    Pass & Seymour
    GTIN
    00785007830095
    UPC
    785007830095
    Taxonomies, Classifications, and Categories
    Category Description
    Commercial recepticals
    Type
    Hospital Grade Receptacle, Extra Heavy-Duty
    Packaging
    Weight per each
    0.25
    Carton
    1
    Package
    10
    Uses, Certifications, and Standards
    nema rating
    5-20R
    standard
    cULus UL498, CSA C22.2 No. 42
    Application
    COMMERCIAL
    environmental conditions
    Flammability: UL94 V2 and UL94-5 VA
    Temperature Rating
    Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
    Mounting
    WALL
