CR20W - PAS

CR20W - 20A Spec Dupl Rec Side Wired

Legrand-Pass & Seymour

  • $2.34 (Each)
  • $2.34 (Each)
  • $23.38 (Per 10)
  • $233.80 (Per 100)

In-Stock: 58 available locally (Nacogdoches, TX) (change location)

QTY:
Each
  • Help Improve Our Data
    Quick Specs
    Catalog Number
    CR20W
    Manufacturer
    Legrand-Pass & Seymour
    Manufacturer's Part Number
    CR20-W
    Description
    20A Spec Dupl Rec Side Wired
    Duplex Receptacle, 20 A, 125 V, 2 Poles, 3 Wires, #14 to #10 Awg Compatible Wire Size, Side Wire Connection, Wall Mount, 1.322 In Length, 0.78 In Width, 3.281 In Height, Thermoplastic, White, Impact Resistant, Corrosion Resistant, 0.2000 LB
    Slang Terms

    Suggest a New Term
    Similar Brands

    Categories
    Gen Purpose Wiring Devices - Gen Purpose Recept & Surge Pro  Mark as Incorrect
    Suggest a New Category
    Classification
    Commercial Recepticals
    UNSPSC
    39121406 - Electrical receptacles
    UPC/GTIN
    785007119183 / 00785007119183
    Weight per unit
    0.1962 (lbs/each)
    Price & Packaging
    Minimum Order Quantity
    1
    Unit
    $2.34 (Each)
    Carton
    $23.38 (Per 10)
    Standard Packaging
    $233.80 (Per 100)
    Stock Availability
    Nacogdoches
    58 (Check another store)
    All Stores
    19,867
    Resources
    Images

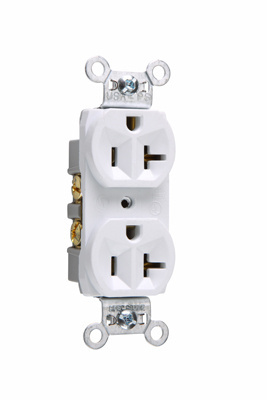

    CR20W - Large Image

    CR20W - Large Image

    CR20W - Large Image

    CR20W - Small Image

    CR20W - Large Image
    Installation Sheets


    CR20W - Installation Sheet
    Attachments


    CR20W - Specification Sheet

    CR20W - Specification Sheet

    CR20W - Specification Sheet
    Other Links


    CR20W - Other


    Suggest Substitute Item
    Help Improve Our Data
  • Help Improve Our Data
    Features
    Current Rating
    20 A
    Number of Wires
    3
    3 in
    Material
    Thermoplastic
    THERMOPLASTIC
    Voltage Rating
    125 VAC
    Poles
    2 in
    amperage rating
    20 Amps
    Wire Size
    798
    connection
    Wire Ground
    Material, Color, and Finish
    Color
    White
    WHITE GLOSS
    Dimensions and Weight
    Length
    1.322 in
    Width
    0.78 in
    Height
    3.281 in
    Size
    3.3 in
    Descriptions
    Product Type
    Recep Dup 20A/125V Side Wire WH
    Duplex Receptacle
    Long Description
    Duplex Receptacle, 20 A, 125 V, 2 Poles, 3 Wires, #14 to #10 AWG Compatible Wire Size, Side Wire Connection, Wall Mount, 1.322 in Length, 0.78 in Width, 3.281 in Height, ThermoPlastic, White, Impact Resistant, Corrosion Resistant, 0.2000 lb
    Commercial Spec Grade Duplex Receptacle with side wireis corrosion-resistant with aplated steel strap locked in to face and back body to resist pulling away from face/body assembly. It has aneasily accessed break-off, line-contact connecting tab for fast foreasy split-circuit wiring. It also has an impact-resistant nylon face and thermoplastic back body. 20amp, 125volt, White.
    Features
    Commercial Spec Grade Duplex Receptacle, Side Wire 20amp 125volt, White
    Short Description
    20 A, 125 V, Duplex Receptacle, White, TR
    Special Features
    Side Wire;Duplex;Tri-Driver Terminal & Mounting Screws
    Side wire, Duplex, tri-driver terminal &Mountingscrews
    Description
    20A SPEC DUPL REC SIDE WIRED
    Additional Information
    Receptacle Type
    Duplex
    Compatible Wire Size
    #14 to #10 AWG
    Connection Type
    Side Wire
    Mounting Type
    Wall Mount
    Resistance Properties
    Impact Resistant;Corrosion Resistant
    package quantity
    10 CT;100 PK
    Standards Met
    UL 498;C22.2 No. 42;RoHS Compliant;CSA Certified
    Manufacturer Information
    Brand
    Pass & Seymour/Legrand
    LEGRAND-PASS & SEYMOUR
    Pass and Seymour
    Radiant
    legrand
    Manufacturers Part Number
    CR20-W
    sub brand
    Pass & Seymour
    GTIN
    00785007119183
    UPC
    785007119183
    Taxonomies, Classifications, and Categories
    Category Description
    Commercial recepticals
    Type
    Straight Blade Receptacle
    Packaging
    Weight
    0.2000 lb
    Weight per each
    0.1962
    Carton
    10
    Package
    100
    Uses, Certifications, and Standards
    Application
    Residential;Commercial
    Residential/Commercial
    nema rating
    5-20R
    standard
    UL 498
    Mounting
    WALL
