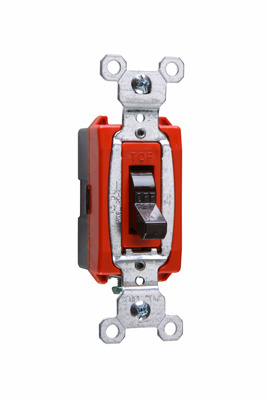

CS20AC1 - PAS

CS20AC1 - 20A SP Spec Switch 120/277V

Legrand-Pass & Seymour

  • $3.94 (for 1 Each)
  • $3.94 (1 Each)
  • $39.37 (10 Each)
  • $196.87 (50 Each)
  • $393.74 (100 Each)

In-Stock: 0 available locally (Nacogdoches, TX) (change location)

QTY:
Each
  • Help Improve Our Data
    Quick Specs
    Catalog Number
    CS20AC1
    Manufacturer
    Legrand-Pass & Seymour
    Manufacturer's Part Number
    CS20AC1
    Description
    20A SP Spec Switch 120/277V
    Toggle Switch, 1 Pole, 20 A, 120/277 V Ac, Nylon Material, Silver Cadmium Oxide Contact Material, Brown, Grounding Connection, Wall Mount, 1.320 (L) X 1.073 (W) X 3.281 (H) In, -40 °C Operating Temperature, +115 °C Operating Temperature, 0.16 LB
    Slang Terms

    Suggest a New Term
    Similar Brands

    Categories
    Gen Purpose Wiring Devices - Gen Purpose Switches  Mark as Incorrect
    Suggest a New Category
    Classification
    Commercial Switches
    UNSPSC
    N/A
    UPC/GTIN
    785007126440 / 00785007126440
    Weight per unit
    0.164 (lbs/each)
    Price & Packaging
    Minimum Order Quantity
    1 Each
    Unit
    $3.94 (1 Each)
    Carton
    $39.37 (10 Each)
    Standard Packaging
    $196.87 (50 Each)
    Stock Availability
    Nacogdoches
    0 Each (Find nearest stock)
    All Stores
    193 Each
    Resources
    Attachments


    CS20AC1 - Specification Sheet

    CS20AC1 - Specification Sheet

    CS20AC1 - Specification Sheet
    Images


    CS20AC1 - Large Image

    CS20AC1 - Small Image

    CS20AC1 - Large Image

    CS20AC1 - Large Image

    CS20AC1 - Large Image

    CS20AC1 - Video

    CS20AC1 - 360 Image
    Other Links


    CS20AC1 - Other

    CS20AC1 - Other

    CS20AC1 - Other
    Installation Sheets


    CS20AC1 - Installation Sheet
    Brochures


    CS20AC1 - Brochure


    Suggest Substitute Item
    Help Improve Our Data
  • Help Improve Our Data
    Features
    Current Rating
    20 A
    Voltage Rating
    120/277 V ac
    120/277 VAC
    Material
    Nylon
    amperage rating
    20 A
    insulation
    None IN
    actuator
    Toggle Switch
    Poles
    1 PH
    Material, Color, and Finish
    Contact Material
    Silver Cadmium Oxide
    Color
    Brown
    Brown Safety
    Dimensions and Weight
    Size
    3.3 in
    Descriptions
    Description
    20A SP SPEC SWITCH 120/277V
    Product Type
    Toggle Switch
    20A 120/277VAC S Wire Comm SP SW BN
    Long Description
    Toggle Switch, 1 Pole, 20 A, 120/277 V ac, Nylon Material, Silver Cadmium Oxide Contact Material, Brown, Grounding Connection, Wall Mount, 1.320 (L) x 1.073 (W) x 3.281 (H) in, -40 °C Operating Temperature, +115 °C Operating Temperature, 0.16 lb
    Features
    Commercial 1pole Switch, Side Wire, 20amp 120/277volt, Brown.
    Short Description
    20 A, 120/277 VAC, Toggle Switch, Brown, Industrial HD
    Special Features
    Side Wire;Locking Support;Heavy Duty Toggle
    Side wire, locking support, heavy duty toggle
    Additional Information
    Connection Type
    Grounding
    actuator type
    Toggle
    Mounting Type
    Wall Mount
    Minimum Operating Temperature
    -40 °C
    Maximum Operating Temperature
    +115 °C
    Standards Met
    RoHS Compliant;UL Listed File Number E140597;UL20;Federal Specification WS896;cULus Listed File Number LR17446;CSA-C22.2 No. 111
    package quantity
    10 CT;50 PK
    dimensions
    1.320 (L) x 1.073 (W) x 3.281 (H) in
    media
    Yes
    Contact Rating
    20Amp, 120/277Vac
    action
    Single pole
    Manufacturer Information
    Brand
    Pass & Seymour/Legrand
    Pass and Seymour
    LEGRAND-PASS & SEYMOUR
    Pass & Seymour
    legrand
    Manufacturers Part Number
    CS20AC1
    sub brand
    Pass & Seymour
    GTIN
    00785007126440
    UPC
    785007126440
    Taxonomies, Classifications, and Categories
    Category Description
    Commercial switches
    Type
    TOGGLE SWITCH
    Packaging
    Weight
    0.16 lb
    Weight per each
    0.164
    Carton
    10
    Package
    50
    Uses, Certifications, and Standards
    Application
    Commercial
    Commercial TEST
    nema rating
    NEMA WD-1;NEMA WD-6
    Enclosure
    Nylon
    standard
    UL 498/20
    Mounting
    WALL
