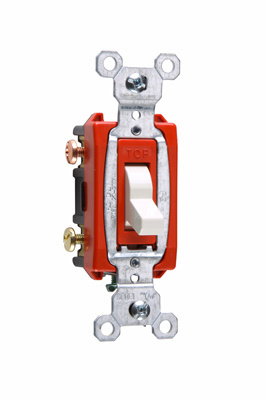

CS20AC3W - PAS

CS20AC3W - 20A 3W Spec Switch 120/277V

Legrand-Pass & Seymour

  • $6.04 (Each)
  • $6.04 (Each)
  • $302.02 (Per 50)
  • $604.05 (Per 100)

In-Stock: 41 available locally (Nacogdoches, TX) (change location)

QTY:
Each
  • Help Improve Our Data
    Quick Specs
    Catalog Number
    CS20AC3W
    Manufacturer
    Legrand-Pass & Seymour
    Manufacturer's Part Number
    CS20AC3-W
    Description
    20A 3W Spec Switch 120/277V
    Toggle Switch, 3 Poles, 3 Ways, 20 A, 120/277 V Ac, Nylon Material, Silver Cadmium Oxide Contact Material, White, Grounding Connection, Wall Mount, 1.320 (L) X 1.073 (W) X 3.281 (H) In, -40 °C Operating Temperature, +115 °C Operating Temperature, 0.18 LB
    Slang Terms

    Suggest a New Term
    Similar Brands

    Categories
    Gen Purpose Wiring Devices - Gen Purpose Switches  Mark as Incorrect
    Suggest a New Category
    Classification
    Commercial Switches
    UNSPSC
    N/A
    UPC/GTIN
    785007126556 / 00785007126556
    Weight per unit
    0.182 (lbs/each)
    Price & Packaging
    Minimum Order Quantity
    1
    Unit
    $6.04 (Each)
    Carton
    $6.04 (Each)
    Standard Packaging
    $302.02 (Per 50)
    Stock Availability
    Nacogdoches
    41 (Check another store)
    All Stores
    1,501
    Resources
    Images


    CS20AC3W - Large Image

    CS20AC3W - Large Image

    CS20AC3W - Large Image

    CS20AC3W - Small Image

    CS20AC3W - Large Image

    CS20AC3W - Video

    CS20AC3W - 360 Image
    Installation Sheets


    CS20AC3W - Installation Sheet
    Attachments


    CS20AC3W - Specification Sheet

    CS20AC3W - Specification Sheet

    CS20AC3W - Specification Sheet
    Brochures


    CS20AC3W - Brochure
    Other Links


    CS20AC3W - Other

    CS20AC3W - Other

    CS20AC3W - Other


    Suggest Substitute Item
    Help Improve Our Data
  • Help Improve Our Data
    Features
    Current Rating
    20 A
    Voltage Rating
    120/277 V ac
    Material
    Nylon
    amperage rating
    20 Amps
    Poles
    3 in
    insulation
    None IN
    actuator
    Toggle Switch
    Material, Color, and Finish
    Contact Material
    Silver Cadmium Oxide
    Color
    White
    Dimensions and Weight
    Size
    3.3 in
    Descriptions
    Product Type
    Toggle Switch
    Description
    20A 3W SPEC SWITCH 120/277V
    Long Description
    Toggle Switch, 3 Poles, 3 Ways, 20 A, 120/277 V ac, Nylon Material, Silver Cadmium Oxide Contact Material, White, Grounding Connection, Wall Mount, 1.320 (L) x 1.073 (W) x 3.281 (H) in, -40 °C Operating Temperature, +115 °C Operating Temperature, 0.18 lb
    Features
    Commercial 3way Switch, Side Wire, 20amp 120/277volt, White.
    Short Description
    20 A, 120/277 VAC, Toggle Switch, White, 4 Poles, 4 Ways, B&S Wire
    Special Features
    Side Wire;Locking Support;Heavy Duty Toggle
    Additional Information
    media
    Yes
    dimensions
    1.320 (L) x 1.073 (W) x 3.281 (H) in
    Number of Ways
    3
    Connection Type
    Grounding
    actuator type
    Toggle
    Mounting Type
    Wall Mount
    Minimum Operating Temperature
    -40 °C
    Maximum Operating Temperature
    +115 °C
    Standards Met
    RoHS Compliant;UL Listed File Number E140597;UL20;Federal Specification WS896;cULus Listed File Number LR17446;CSA-C22.2 No. 111
    package quantity
    10 CT;50 PK
    Contact Rating
    20Amp, 120/277Vac
    action
    Three pole
    Manufacturer Information
    Brand
    Pass and Seymour
    Manufacturers Part Number
    CS20AC3-W
    sub brand
    Pass & Seymour
    GTIN
    00785007126556
    UPC
    785007126556
    Taxonomies, Classifications, and Categories
    Category Description
    Commercial switches
    Type
    TOGGLE SWITCH
    Packaging
    Weight
    0.18 lb
    Weight per each
    0.182
    Carton
    1
    Package
    50
    Uses, Certifications, and Standards
    nema rating
    NEMA WD-1;NEMA WD-6
    Application
    Commercial TEST
    Enclosure
    Nylon
    standard
    UL 498/20
    Mounting
    WALL
