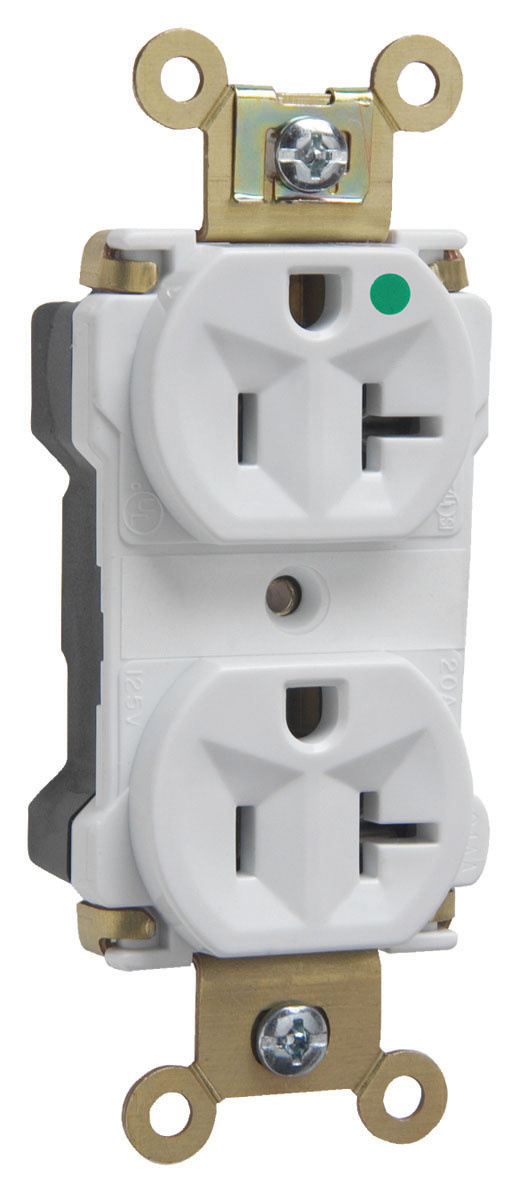

PT8300W - PAS

PT8300W - PT8300W WHT Spec 5-20R RC

Pass and Seymour

In-Stock: 0 available locally (Nacogdoches, TX) (change location)

Buy Now
QTY:
  • Help Improve Our Data
    Quick Specs
    Catalog Number
    PT8300W
    Manufacturer
    Pass and Seymour
    Manufacturer's Part Number
    PT8300-W
    Description
    PT8300W WHT Spec 5-20R RC
    Plugtail Extra Heavy-Duty Hospital Grade Duplex Receptacle 20AMP 125VOLT White
    Slang Terms

    Suggest a New Term
    Categories
    Gen Purpose Wiring Devices - Gen Purpose Recept & Surge Pro  Mark as Incorrect
    Suggest a New Category
    Classification
    Nema Rated Turnlok Plugs, Connectors, & Recepticles
    UNSPSC
    39121406 - Electrical receptacles
    UPC/GTIN
    785007091168 / 00785007091168
    Weight per unit
    0.23 (lbs/each)
    Price & Packaging
    Minimum Order Quantity
    1 Unit
    Unit
    $22.06 (each)
    Carton
    $2,206.00 (100 units)
    Standard Packaging
    $220.60 (10 units)
    Stock Availability
    Nacogdoches
    0
    All Stores
    43
    Resources
    Images


    PT8300W - Large Image

    PT8300W - Small Image
    Installation Sheets


    PT8300W - Installation Sheet
    Attachments


    PT8300W - Specification Sheet


    Suggest Substitute Item
    Help Improve Our Data
  • Help Improve Our Data
    Additional Information
    amperage rating
    20
    Application
    COMMERCIAL
    Brand
    Pass and Seymour
    Category Description
    NEMA RATED TURNLOK PLUGS, CONNECTORS, & RECEPTICLES
    Color
    WHITE
    Description
    PT8300W WHT SPEC 5-20R RC
    Dielectric Strength
    Withstands 2000V minimum
    Documents
    Yes
    environmental conditions
    Flammability: UL94 V2
    Long Description
    PlugTail Extra Heavy-Duty Hospital Grade Duplex Receptacle 20amp 125volt White
    Manufacturers Part Number
    PT8300-W
    Material
    NYLON
    Mounting
    WALL
    nema rating
    5-20R
    Number of Wires
    3
    Yes
    Poles
    2
    Product Type
    Hosp GRD Ehd Dup Recept 20A/125V WH
    Size
    1.625 L x .866 W x 3.281 H
    special features
    Exclusive patented feature, circuit label on face allows permanent circuit identification. .036 inch thick, brass, triple-wipe power contacts for lasting retention. Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body. Two drive screws anchor strap to back body and face. No exposed terminals create a finger safe application before, during, and after installation. Built-in connector features large brass terminal blades to ensure consistent, reliable electrica
    standard
    cULus UL498
    sub brand
    Pass & Seymour
    Temperature Rating
    Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
    Type
    PlugTail™ Hospital Grade Receptacle, Extra Heavy-Duty
    Voltage Rating
    125
    Wire Size
    PlugTail™ Connector: #12 AWG, THHN, copper conductor, 6" leads, stripped, solid or stranded, for use with PlugTail Receptacles only
