RV1014Q - SCO

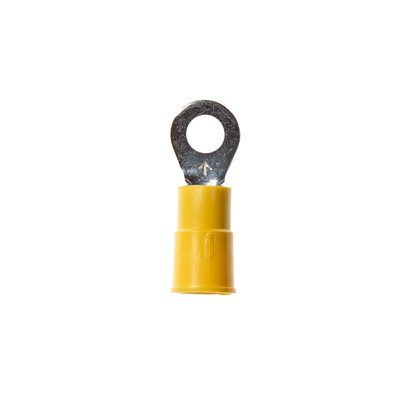

RV1014Q - Ring Vinyl Insulated Highland Bag 25/Bag

Highland

  • $8.48 (for 1 Each)
  • $8.48 (1 Each)
  • $84.80 (10 Each)

In-Stock: 0 available locally (Nacogdoches, TX) (change location)

QTY:
Each
  • Help Improve Our Data
    Quick Specs
    Catalog Number
    RV1014Q
    Manufacturer
    Highland
    Manufacturer's Part Number
    RV10-14Q
    Description
    Ring Vinyl Insulated Highland Bag 25/Bag
    Ring Tongue, Standard Type; Yellow Color; 12 Awg Min. Conductor Size; 10 Awg Max. Conductor Size; Ul 486-A, Ul 486-B, Csa C22.2 Approval; 221 Deg F Temperature Rating; 25 Per Bag Standard Package; 1/4 Inch Stud Size; Vinyl Insulated Insulation Type
    Slang Terms

    Suggest a New Term
    Similar Brands

    Categories
    Solderless Connectors - Small Terminals & Connectors  Mark as Incorrect
    Suggest a New Category
    Classification
    Sta-Kon Type Terminals
    UNSPSC
    39121432 - Electrical terminals
    UPC/GTIN
    051128600337 / 00051128600337
    Weight per unit
    0.16 (lbs/each)
    Price & Packaging
    Minimum Order Quantity
    1 Each
    Unit
    $8.48 (1 Each)
    Standard Packaging
    $84.80 (10 Each)
    Stock Availability
    Nacogdoches
    0 Each (Find nearest stock)
    All Stores
    37 Each
    Resources
    Images


    RV1014Q - Large Image

    RV1014Q - Small Image

    RV1014Q - Large Image

    RV1014Q - Large Image
    Specifications Sheets


    RV1014Q - Specification Sheet
    Attachments


    RV1014Q - Specification Sheet
    MSDS Sheets


    RV1014Q - MSDS Sheet


    Suggest Substitute Item
    Help Improve Our Data
  • Help Improve Our Data
    Features
    Terminal Type
    Ring Terminal
    Material, Color, and Finish
    Insulation Material
    Vinyl
    Insulation Color
    Yellow
    Color
    YELLOW
    Dimensions and Weight
    Overall Length
    1.26 in;32 mm
    Descriptions
    Product Type
    Ring Tongue
    Terminal Ring Lug
    Description
    RING VINYL INSULATED HIGHLAND BAG 25/BAG
    Long Description
    RING TONGUE, STANDARD TYPE; YELLOW COLOR; 12 AWG MIN. CONDUCTOR SIZE; 10 AWG MAX. CONDUCTOR SIZE; UL 486-A, UL 486-B, CSA C22.2 APPROVAL; 221 DEG F TEMPERATURE RATING; 25 PER BAG STANDARD PACKAGE; 1/4 INCH STUD SIZE; VINYL INSULATED INSULATION TYPE
    Terminal Ring Lug, #12 AWG Conductor Size, #10 AWG Conductor Size, Insulated, Vinyl Insulation Material, Yellow Insulation Color, -40 °F Operating Temperature, +221 °F Operating Temperature, 1.26 in Overall Length, Ring Terminal, 0.16 lb
    Features
    3M(TM) Highland(TM) Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance.The terminal has a vinyl-insulated,butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C).Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.A ring is the standard style of tongue.The safest and most reliable;it cannot be removed unless mounting screw is removed.
    Short Description
    #12 to #10 AWG Vinyl Insulated Butted Seam - Ring Tongues, 1/4 inch stud size
    Special Features
    Funnel-Designed, Polyvinyl Chloride Sleeve Offers Easy Insertion of Wires
    Commodity Description
    SMALL TERMINALS & CONNECTORS
    Additional Information
    TERMINAL MATERIAL TIN PLATED ETP COPPER; SIZE 1.26 INCH L X 0.53 INCH W X 0.04 INCH THK; BUTTED SEAM BARREL
    Additional Information
    Minimum Conductor Size
    #12 AWG
    12 AWG
    Maximum Conductor Size
    #10 AWG
    10 AWG
    For Stud Size
    1/4 in
    Insulated/Non-Insulated
    Insulated
    Minimum Operating Temperature
    -40 °F
    Maximum Operating Temperature
    +221 °F
    Standards Met
    UL Listed;CSA Certified;RoHS 2011/65/EU Compliant
    Made in USA
    Yes
    package quantity
    25 BG
    Stud Size
    1/4 INCH
    Insulation Type
    VINYL INSULATED
    Manufacturer Information
    Brand
    Highland
    Minnesota Mining (3M)
    Highland[T]
    Manufacturers Part Number
    RV10-14Q
    sub brand
    Highland(TM)
    GTIN
    00051128600337
    UPC
    051128600337
    Taxonomies, Classifications, and Categories
    Category Description
    STA-KON TYPE TERMINALS
    Type
    STANDARD
    Packaging
    Weight
    0.16 lb
    Standard Package
    25 PER BAG
    Weight per each
    0.16
    Carton
    1
    Package
    10
    Uses, Certifications, and Standards
    Temperature Rating
    221 DEG F
    Approval
    UL 486-A, UL 486-B, CSA C22.2
