1H - TAB

1H - #2 Cu Split Bolt

Blackburn

  • $6.41 (for 1 Each)
  • $6.41 (1 Each)
  • $640.86 (100 Each)
  • $2,563.44 (400 Each)

In-Stock: 1 available locally (Nacogdoches, TX) (change location)

QTY:
Each
  • Help Improve Our Data
    Quick Specs
    Catalog Number
    1H
    Manufacturer
    Blackburn
    Manufacturer's Part Number
    1H
    Description
    #2 Cu Split Bolt
    Split Bolt Connector, #6 Awg (Range For Equal Main and Tap-Solid) Conductor Size, #2 Awg (Range For Equal Main and Tap-Stranded);#14 Awg (Minimum Tap With Maximum Main-Solid) Conductor Size, Non-Insulated, Copper Conductor Material, 1-11/32 In Overall Length, Split Terminal, 0.12 LB/Ea
    Slang Terms
    Bug, Kearnys, Split Bolt Connector, Monkey balls
    Suggest a New Term
    Similar Brands
    Servit®
    Categories
    Solderless Connectors - Large Terminals & Connectors  Mark as Incorrect
    Suggest a New Category
    Classification
    Split Bolts
    UNSPSC
    39121408 - Mechanical connectors
    UPC/EAN/GTIN
    783786200122 / 5414363074151 / 00783786200122
    Weight per unit
    0.12 (lbs/each)
    Price & Packaging
    Minimum Order Quantity
    1 Each
    Unit
    $6.41 (1 Each)
    Carton
    $640.86 (100 Each)
    Standard Packaging
    $2,563.44 (400 Each)
    Stock Availability
    Nacogdoches
    1 Each (Check another store)
    All Stores
    5,894 Each
    Resources
    Attachments


    1H - Specification Sheet

    1H - Specification Sheet
    Images

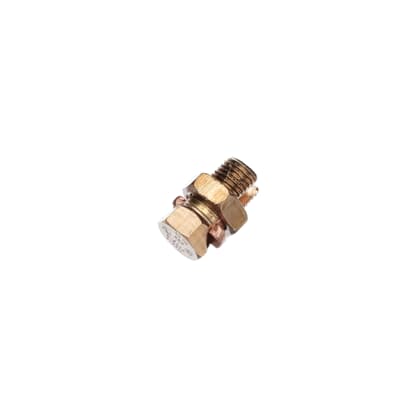

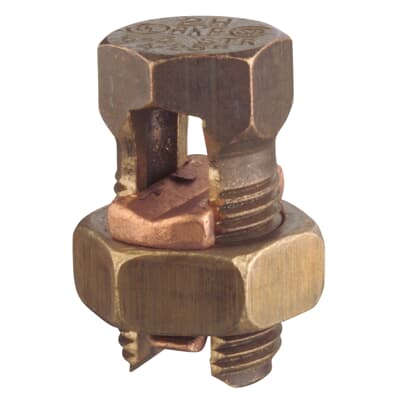

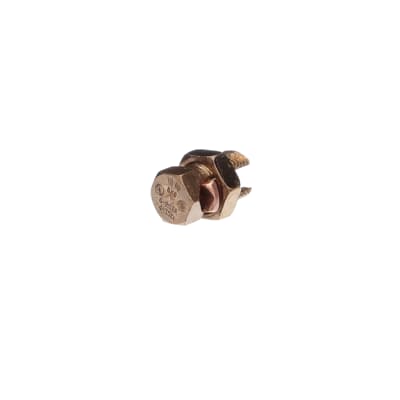

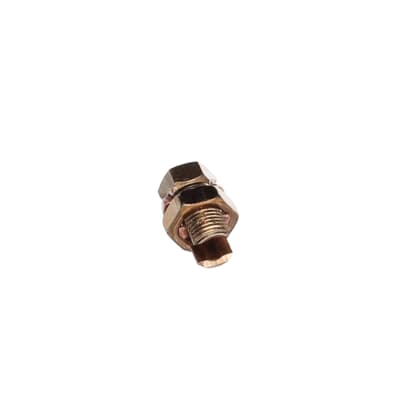

    1H - Large Image

    1H - Small Image

    1H - Large Image

    1H - Large Image

    1H - Large Image
    Other Links


    1H - Other

    1H - Other


    Suggest Substitute Item
    Help Improve Our Data
  • Help Improve Our Data
    Features
    Terminal Type
    Split
    Material
    BRONZE ALLOY
    Material, Color, and Finish
    Conductor Material
    Copper
    Dimensions and Weight
    Overall Length
    1-11/32 in
    Descriptions
    Product Type
    Split Bolt Connector
    Conn Ultra Rob Boulon Fendu Cu
    Long Description
    Split Bolt Connector, #6 AWG (Range for Equal Main and Tap-Solid) Conductor Size, #2 AWG (Range for Equal Main and Tap-Stranded);#14 AWG (Minimum Tap with Maximum Main-Solid) Conductor Size, Non-Insulated, Copper Conductor Material, 1-11/32 in Overall Length, Split Terminal, 0.12 lb/EA
    Short Description
    Split Bolt Connector, Non-Insulated, 1-11/32 in L
    Special Features
    Bolt and Nut of High-Strength Corrosion-Resistant Bronze Alloy;Copper Pressure Bar;Bolt and Nut of Hex Design
    Bolt and nut of high-strength corrosion-resistant bronze alloy. Copper pressure bar. Bolt and nut of hex design.
    Description
    #2 CU SPLIT BOLT
    Also Known As...
    Bug
    Kearnys
    Split Bolt Connector
    Monkey balls
    Additional Information
    Minimum Conductor Size
    #6 AWG (Range for Equal Main and Tap-Solid)
    Maximum Conductor Size
    #2 AWG (Range for Equal Main and Tap-Stranded);#14 AWG (Minimum Tap with Maximum Main-Solid)
    Insulated/Non-Insulated
    Non-Insulated
    for use with
    Splicing;Tapping;Terminating Conductors Power and Grounding Electrical Connection;Copper to Copper Connections
    Standards Met
    UL Listed E9809, 467, 486C;CSA Certified
    package quantity
    100 CT;400 PK
    similar brands
    Servit®
    Manufacturer Information
    Brand
    Thomas & Betts
    Blackburn
    Manufacturers Part Number
    1H
    sub brand
    Blackburn
    GTIN
    00783786200122
    UPC
    783786200122
    Taxonomies, Classifications, and Categories
    Category Description
    SPLIT BOLTS
    Type
    Split-Bolt
    Packaging
    Weight
    0.12 lb/EA
    Weight per each
    0.12
    Carton
    100
    Package
    400
    Uses, Certifications, and Standards
    Application
    Splicing, tapping or terminating conductors in power and grounding electrical connection.
    standard
    UL E9809
    Help Improve Our Data
