20HPS - TAB

20HPS - 2/0 Al-Cu Split Bolt

Blackburn

  • $15.88 (Each)
  • $15.88 (Each)
  • $397.04 (Per 25)
  • $1,588.18 (Per 100)
  • $2,382.27 (Per 150)

In-Stock: 15 available locally (Nacogdoches, TX) (change location)

QTY:
Each
  • Help Improve Our Data
    Quick Specs
    Catalog Number
    20HPS
    Manufacturer
    Blackburn
    Manufacturer's Part Number
    20HPS
    Description
    2/0 Al-Cu Split Bolt
    Type HPS - Split-Bolt Connector With Spacer, Conductor Range For Equal Main and Tap Acsr 1/0-6, Conductor Range For Equal Main and Tap 2/0 STR-6 STR, Min Tap With One Max Main 6 Sol, Tin Plated
    Slang Terms

    Suggest a New Term
    Similar Brands

    Categories
    Solderless Connectors - Large Terminals & Connectors  Mark as Incorrect
    Suggest a New Category
    Classification
    Split Bolts
    UNSPSC
    39121408 - Mechanical connectors
    UPC/EAN/GTIN
    783786200283 / 5414363138808 / 00783786200283
    Weight per unit
    0.325 (lbs/each)
    Price & Packaging
    Minimum Order Quantity
    1
    Unit
    $15.88 (Each)
    Carton
    $397.04 (Per 25)
    Standard Packaging
    $2,382.27 (Per 150)
    Stock Availability
    Nacogdoches
    15 (Check another store)
    All Stores
    584
    Resources
    Images

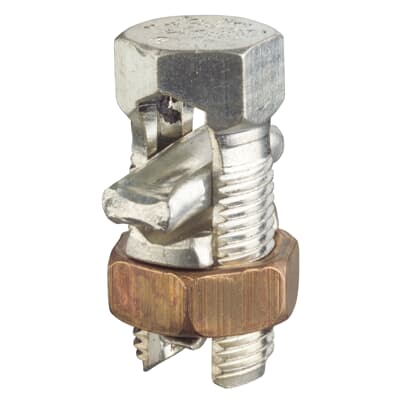

    20HPS - Large Image

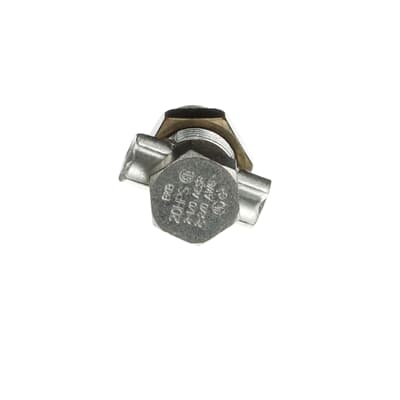

    20HPS - Large Image

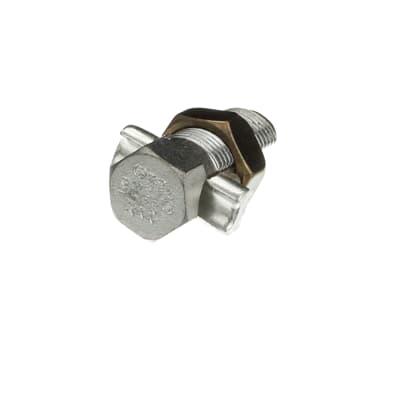

    20HPS - Small Image

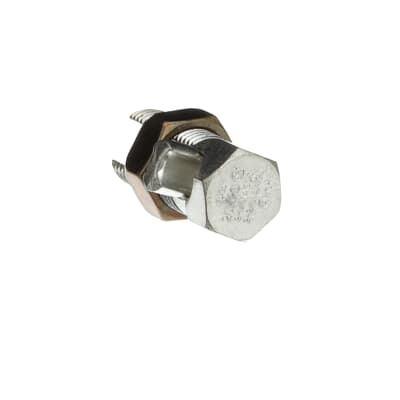

    20HPS - Large Image
    Attachments


    20HPS - Specification Sheet

    20HPS - Specification Sheet

    20HPS - Specification Sheet

    20HPS - Specification Sheet
    Other Links


    20HPS - Other

    20HPS - Other


    Suggest Substitute Item
    Help Improve Our Data
  • Help Improve Our Data
    Features
    Material
    COPPER ALLOY
    Material, Color, and Finish
    Finish
    TIN PLATED
    Descriptions
    Description
    2/0 AL-CU SPLIT BOLT
    Special Features
    Bolt and pressure bar of copper alloy, completely tin plated for corrosion resistance. Contoured spacer of electrolytic copper.
    Long Description
    Type HPS - Split-Bolt Connector with Spacer, Conductor Range for Equal Main and Tap ACSR 1/0-6, Conductor Range for Equal Main and Tap 2/0 Str-6 Str, Min Tap with One Max Main 6 Sol, Tin Plated
    Product Type
    S-Bolt 2/0 - 6 Awg Copper
    Manufacturer Information
    Manufacturers Part Number
    20HPS
    Brand
    Blackburn
    GTIN
    00783786200283
    UPC
    783786200283
    Taxonomies, Classifications, and Categories
    Category Description
    SPLIT BOLTS
    Type
    Split-Bolt
    Packaging
    Weight per each
    0.325
    Carton
    25
    Package
    150
    Uses, Certifications, and Standards
    Application
    Splicing, tapping or terminating conductors in power and grounding electrical connection.
    standard
    UL E9809
