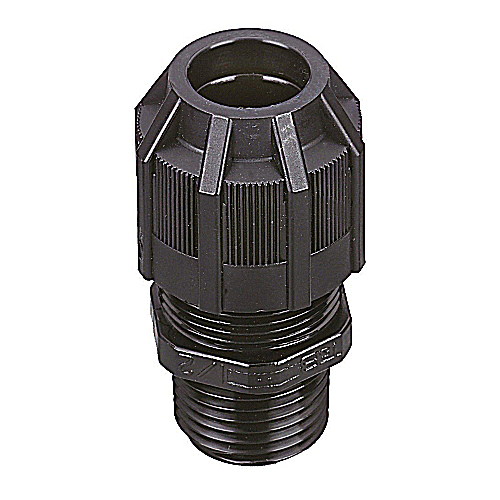

2920NM - TAB

2920NM - 1/2" LT Cord Conn (.125-.375)

T&B Cord & Cable Fittings

  • $13.01 (Each)
  • $13.01 (Each)
  • $325.14 (Per 25)
  • $1,300.57 (Per 100)

Availablity: In Stock

QTY:
Each
  • Help Improve Our Data
    Quick Specs
    Catalog Number
    2920NM
    Manufacturer
    T&B Cord & Cable Fittings
    Manufacturer's Part Number
    2920NM
    Description
    1/2" LT Cord Conn (.125-.375)
    Strain Relief Connector, Black, Polyamide/Nylon 6.6 Material, 1/2 In Size, 0.125 to 0.375 In Cable/Cord Size, 2-1/8 In Length, 1-7/32 In Diameter, Straight Connection, 1/2 In Thread Size, -34 °C Operating Temperature, +105 °C Operating Temperature, 5 LB/100
    Slang Terms

    Suggest a New Term
    Similar Brands

    Categories
    Condubx, Non-Metallic CBL, S. - Cable & Cord Grips  Mark as Incorrect
    Suggest a New Category
    Classification
    Cord Connectors & Cord Grips
    UNSPSC
    39121431 - Cable gland connector
    UPC/EAN/GTIN
    786210797403 / 5414363101710 / 00786210797403
    Weight per unit
    0.05 (lbs/each)
    Price & Packaging
    Minimum Order Quantity
    1
    Unit
    $13.01 (Each)
    Carton
    $325.14 (Per 25)
    Standard Packaging
    $1,300.57 (Per 100)
    Resources
    Images


    2920NM - Small Image

    2920NM - Large Image

    2920NM - Large Image

    2920NM - Large Image

    2920NM - Large Image

    2920NM - Large Image
    Installation Sheets


    2920NM - Installation Sheet

    2920NM - Installation Sheet

    2920NM - Installation Sheet
    Attachments


    2920NM - Specification Sheet

    2920NM - Specification Sheet

    2920NM - Specification Sheet
    Other Links


    2920NM - Other

    2920NM - Other

    2920NM - Other


    Suggest Substitute Item
    Help Improve Our Data
  • Help Improve Our Data
    Features
    Material
    Polyamide/Nylon 6.6
    Material, Color, and Finish
    Color
    Black
    Dimensions and Weight
    Size
    1/2 in
    Length
    2-1/8 in
    Diameter
    1-7/32 in
    Descriptions
    Description
    1/2" LT CORD CONN (.125-.375)
    Product Type
    Strain Relief Connector
    Long Description
    Strain Relief Connector, Black, Polyamide/Nylon 6.6 Material, 1/2 in Size, 0.125 to 0.375 in Cable/Cord Size, 2-1/8 in Length, 1-7/32 in Diameter, Straight Connection, 1/2 in Thread Size, -34 °C Operating Temperature, +105 °C Operating Temperature, 5 lb/100
    Features
    Liquidtight Strain Relief Connector, Straight, 1/2 Inch NPT Thread, Cable Range 0.125 Inch/3.2mm to 0.375 Inch/9.5mm, Throat Diameter 0.55 Inch, IP65 Rating, UV Resistant Polyamide 6.6 Body, Black
    Short Description
    Strain Relief Connector, Polyamide/Nylon 6.6, ½ in (.310-.560)
    Special Features
    Ordinary, Wet, or Dry Locations;Extended Range with Superior Strain Relief
    Additional Information
    Cable/Cord Size
    0.125 to 0.375 in;3.2 to 9.5 mm
    Enclosure Type
    NEMA 6 and 4X
    Connection Type
    Straight
    Thread Size
    1/2 in
    Minimum Operating Temperature
    -34 °C
    Maximum Operating Temperature
    +105 °C
    Standards Met
    UL E13938 Listed;CSA Certified 52391
    package quantity
    25 CT;100 PK
    Made in USA
    yes
    Manufacturer Information
    Brand
    T&B Cord & Cable Fittings
    Manufacturers Part Number
    2920NM
    sub brand
    Shureseal(TM)
    GTIN
    00786210797403
    UPC
    786210797403
    Taxonomies, Classifications, and Categories
    Category Description
    CORD CONNECTORS & CORD GRIPS
    Type
    Cord Connectors-Straight
    Packaging
    Weight
    5 lb/100
    Weight per each
    0.05
    Carton
    25
    Package
    100
    Uses, Certifications, and Standards
    Application
    Provide a Means for Passing a Cord Cable Into an Enclosure Through a Bulkhead or Into a Rigid Conduit;Form a Mechanical Grip and Water and/or Oil-Resistant Seal for Cord;Form a Non-Slip Connection or Termination for Flexible Cord
    Temperature Rating
    -34 to +105 C
    environmental conditions
    Ordinary, Wet, or Dry Locations
    standard
    UL E13938, CSA 52391
