2932NM - TAB

2932NM - 3/4" NM LT Cord Conn (.500-.750)

T&B

  • $8.63 (Each)
  • $8.63 (Each)
  • $86.26 (Per 10)
  • $862.63 (Per 100)

In-Stock: 16 available locally (Nacogdoches, TX) (change location)

QTY:
Each
  • Help Improve Our Data
    Quick Specs
    Catalog Number
    2932NM
    Manufacturer
    T&B
    Manufacturer's Part Number
    2932NM
    Description
    3/4" NM LT Cord Conn (.500-.750)
    Liquidtight Strain Relief Connector, Straight, 3/4 Inch NPT Thread, Cable Range 0.500 Inch/12.7MM to 0.750 Inch/19.0MM, IP65 Rating, Uv Resistant Polyamide 6.6 Body, Black
    Slang Terms

    Suggest a New Term
    Similar Brands

    Categories
    Condubx, Non-Metallic CBL, S. - Cable & Cord Grips  Mark as Incorrect
    Suggest a New Category
    Classification
    Cord Connectors & Cord Grips
    UNSPSC
    39121431 - Cable gland connector
    UPC/EAN/GTIN
    786210797458 / 5414363101819 / 00786210797458
    Weight per unit
    0.076 (lbs/each)
    Price & Packaging
    Minimum Order Quantity
    1
    Unit
    $8.63 (Each)
    Carton
    $86.26 (Per 10)
    Standard Packaging
    $862.63 (Per 100)
    Stock Availability
    Nacogdoches
    16 (Check another store)
    All Stores
    564
    Resources
    Images

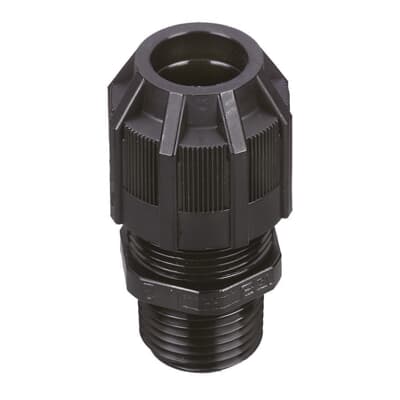

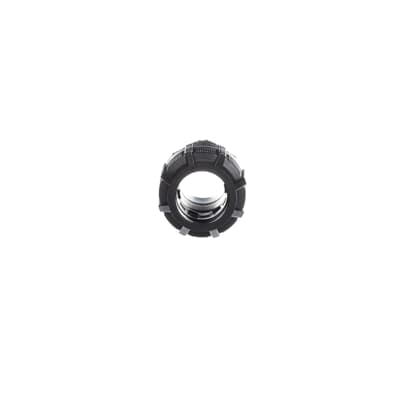

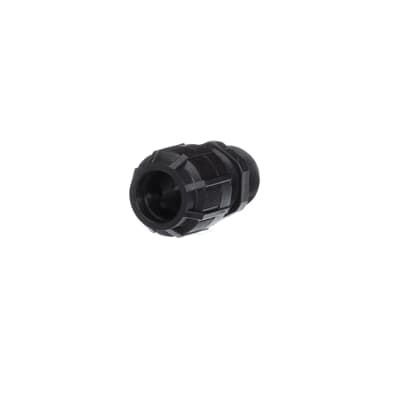

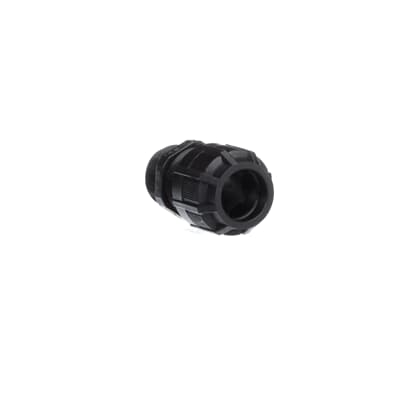

    2932NM - Large Image

    2932NM - Large Image

    2932NM - Large Image

    2932NM - Small Image

    2932NM - Large Image
    Installation Sheets


    2932NM - Installation Sheet

    2932NM - Installation Sheet

    2932NM - Installation Sheet
    Attachments


    2932NM - Specification Sheet

    2932NM - Specification Sheet
    Other Links


    2932NM - Other

    2932NM - Other


    Suggest Substitute Item
    Help Improve Our Data
  • Help Improve Our Data
    Features
    Material
    Polyamide 6.6
    Polyamide/Nylon 6.6
    Material, Color, and Finish
    Color
    Black Gloss
    Dimensions and Weight
    Size
    3/4 INCH
    3/4 in
    Length
    2-3/16 in
    Diameter
    1-13/32 in
    Descriptions
    Long Description
    Liquidtight Strain Relief Connector, Straight, 3/4 Inch NPT Thread, Cable Range 0.500 Inch/12.7mm to 0.750 Inch/19.0mm, IP65 Rating, UV Resistant Polyamide 6.6 Body, Black
    Strain Relief Connector, Black, Polyamide/Nylon 6.6 Material, 3/4 in Size, 0.500 to 0.750 in Cable/Cord Size, 2-3/16 in Length, 1-13/32 in Diameter, Straight Connection, 3/4 in Thread Size, -34 °C Operating Temperature, +105 °C Operating Temperature, 7.63 lb/100
    Special Features
    Extended Range with Superior Strain Relief
    Ordinary, Wet, or Dry Locations;Extended Range with Superior Strain Relief
    Product Type
    Strain Relief Connector
    Racc Droit Nylon Etanche Antitracti
    Features
    Liquidtight Strain Relief Connector, Straight, 3/4 Inch NPT Thread, Cable Range 0.500 Inch/12.7mm to 0.750 Inch/19.0mm, IP65 Rating, UV Resistant Polyamide 6.6 Body, Black
    Short Description
    Strain Relief Connector, Polyamide/Nylon 6.6, ¾ in (.125-.375)
    Description
    3/4" NM LT CORD CONN (.500-.750)
    Additional Information
    Cable/Cord Size
    0.500 to 0.750 in;12.7 to 19.0 mm
    Enclosure Type
    NEMA 6 and 4X
    Connection Type
    Straight
    Thread Size
    3/4 in
    Minimum Operating Temperature
    -34 °C
    Maximum Operating Temperature
    +105 °C
    Standards Met
    UL E13938 Listed;CSA Certified 52391
    package quantity
    10 CT;100 PK
    Made in USA
    Yes
    Manufacturer Information
    Brand
    Thomas & Betts
    T&B
    T&B
    Carlon(R)
    Manufacturers Part Number
    2932NM
    sub brand
    Shureseal(TM)
    GTIN
    00786210797458
    UPC
    786210797458
    Taxonomies, Classifications, and Categories
    Type
    Cord Connectors-Straight
    Category Description
    CORD CONNECTORS & CORD GRIPS
    Packaging
    Weight
    7.63 lb/100
    Weight per each
    0.076
    Carton
    10
    Package
    100
    Uses, Certifications, and Standards
    Temperature Rating
    -34 to 105 C
    environmental conditions
    Ordinary, Wet, or Dry Locations
    Application
    Provide a Means for Passing a Cord Cable Into an Enclosure Through a Bulkhead
    Provide a Means for Passing a Cord Cable Into an Enclosure Through a Bulkhead or Into a Rigid Conduit;Form a Mechanical Grip and Water and/or Oil-Resistant Seal for Cord;Form a Non-Slip Connection or Termination for Flexible Cord
    standard
    UL E13938, CSA 52391
