40H - TAB

40H - 250 Cu Split Bolt

Blackburn

  • $20.48 (Each)
  • $20.48 (Each)
  • $512.01 (Per 25)
  • $2,048.05 (Per 100)

In-Stock: 87 available locally (Nacogdoches, TX) (change location)

QTY:
Each
  • Help Improve Our Data
    Quick Specs
    Catalog Number
    40H
    Manufacturer
    Blackburn
    Manufacturer's Part Number
    40H
    Description
    250 Cu Split Bolt
    Split Bolt Connector, 250 Kcmil to #1AWG (Range Of Equal Main and Tap);#8 Awg (Minimum Tap With Maximum Main-Solid) Conductor Size, Non-Insulated, Copper Conductor Material, 2-5/12 In Overall Length, Split Terminal, 0.37 LB/Ea
    Slang Terms
    Bug, Kearnys, Split Bolt Connector, Monkey balls
    Suggest a New Term
    Similar Brands
    Servit®
    Categories
    Solderless Connectors - Large Terminals & Connectors  Mark as Incorrect
    Suggest a New Category
    Classification
    Split Bolts
    UNSPSC
    39121408 - Mechanical connectors
    UPC/EAN/GTIN
    783786200177 / 5414363142164 / 00783786200177
    Weight per unit
    0.365 (lbs/each)
    Price & Packaging
    Minimum Order Quantity
    1
    Unit
    $20.48 (Each)
    Carton
    $512.01 (Per 25)
    Standard Packaging
    $2,048.05 (Per 100)
    Stock Availability
    Nacogdoches
    87 (Check another store)
    All Stores
    2,559
    Resources
    Images

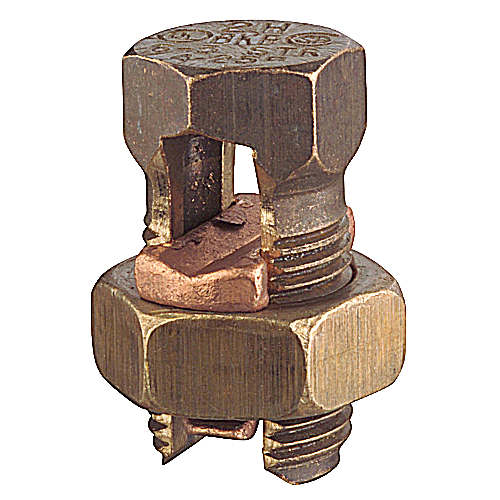

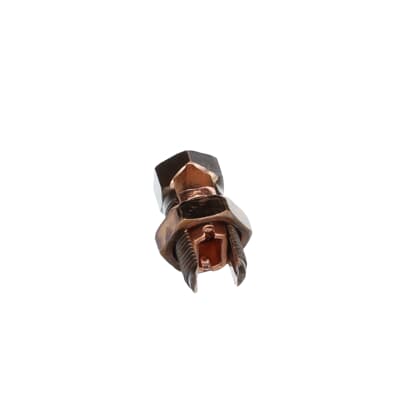

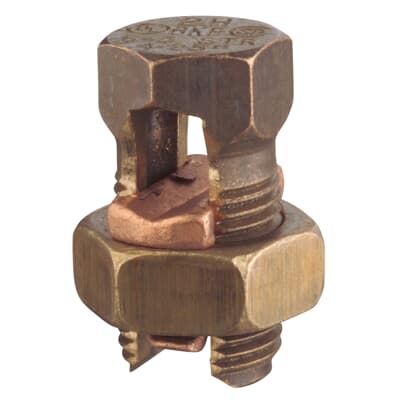

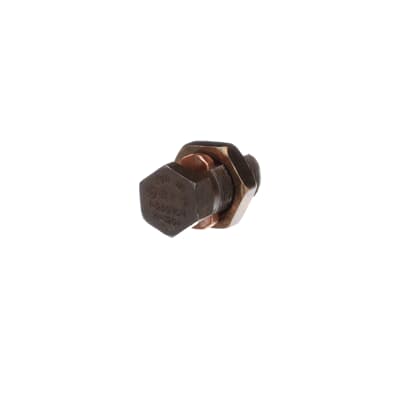

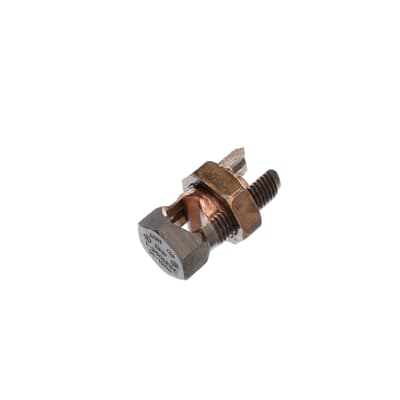

    40H - Large Image

    40H - Large Image

    40H - Large Image

    40H - Small Image

    40H - Large Image
    Attachments


    40H - Specification Sheet

    40H - Specification Sheet
    Other Links


    40H - Other

    40H - Other


    Suggest Substitute Item
    Help Improve Our Data
  • Help Improve Our Data
    Features
    Terminal Type
    Split
    Material
    DEFINITE PURPOSE CONTACTOR, NON-REVERSING TYPE; FRAME D SIZE; UL, CSA, CE APPROVAL; OPEN ENCLOSURE; 3 POLE(S); IEC 60947-4-1, EN 60947-4-1 CONSTRUCTION STANDARD; 110 TO 120 VOLT AC AT 50/60 HERTZ COIL VOLTAGE; 30 AMP INDUCTIVE AMPERE
    Material, Color, and Finish
    Conductor Material
    Copper
    Color
    METALLIC
    Dimensions and Weight
    Overall Length
    2-5/12 in
    Descriptions
    Product Type
    Split Bolt Connector
    Conn Ultra Rob Boulon Fendu Cu
    Long Description
    Split Bolt Connector, 250 kcmil to #1AWG (Range of Equal Main and Tap);#8 AWG (Minimum Tap with Maximum Main-Solid) Conductor Size, Non-Insulated, Copper Conductor Material, 2-5/12 in Overall Length, Split Terminal, 0.37 lb/EA
    Type H - High Strength Split-Bolt Connector, Conductor Range for Equal Main and Tap 250 kcmil-1 Str, Conductor Range for Min Tap with One Max Main 8 Sol
    Short Description
    3/0 Split Bolt Connector, Non-Insulated, 2-5/12 in L
    Special Features
    Bolt and Nut of High-Strength Corrosion-Resistant Bronze Alloy;Copper Pressure Bar;Bolt and Nut of Hex Design
    Bolt and nut of high-strength corrosion-resistant bronze alloy. Copper pressure bar. Bolt and nut of hex design.
    Description
    250 CU SPLIT BOLT
    similar brands
    Servit®
    Also Known As...
    Bug
    Kearnys
    Split Bolt Connector
    Monkey balls
    Additional Information
    Maximum Conductor Size
    250 kcmil to #1AWG (Range of Equal Main and Tap);#8 AWG (Minimum Tap with Maximum Main-Solid)
    Insulated/Non-Insulated
    Non-Insulated
    for use with
    Splicing;Tapping;Terminating Conductors Power and Grounding Electrical Connection;Copper to Copper Connections
    Standards Met
    UL Listed E9809, 467, 486C;CSA Certified
    package quantity
    25 CT;100 PK
    Manufacturer Information
    Brand
    Thomas & Betts
    C25DND325A
    Manufacturers Part Number
    40H
    sub brand
    Blackburn
    GTIN
    00783786200177
    UPC
    783786200177
    Taxonomies, Classifications, and Categories
    Category Description
    SPLIT BOLTS
    Type
    Split-Bolt
    Packaging
    Weight
    0.37 lb/EA
    Weight per each
    0.365
    Carton
    25
    Package
    100
    Uses, Certifications, and Standards
    Application
    Splicing, tapping or terminating conductors in power and grounding electrical connection.
    standard
    UL E9809
